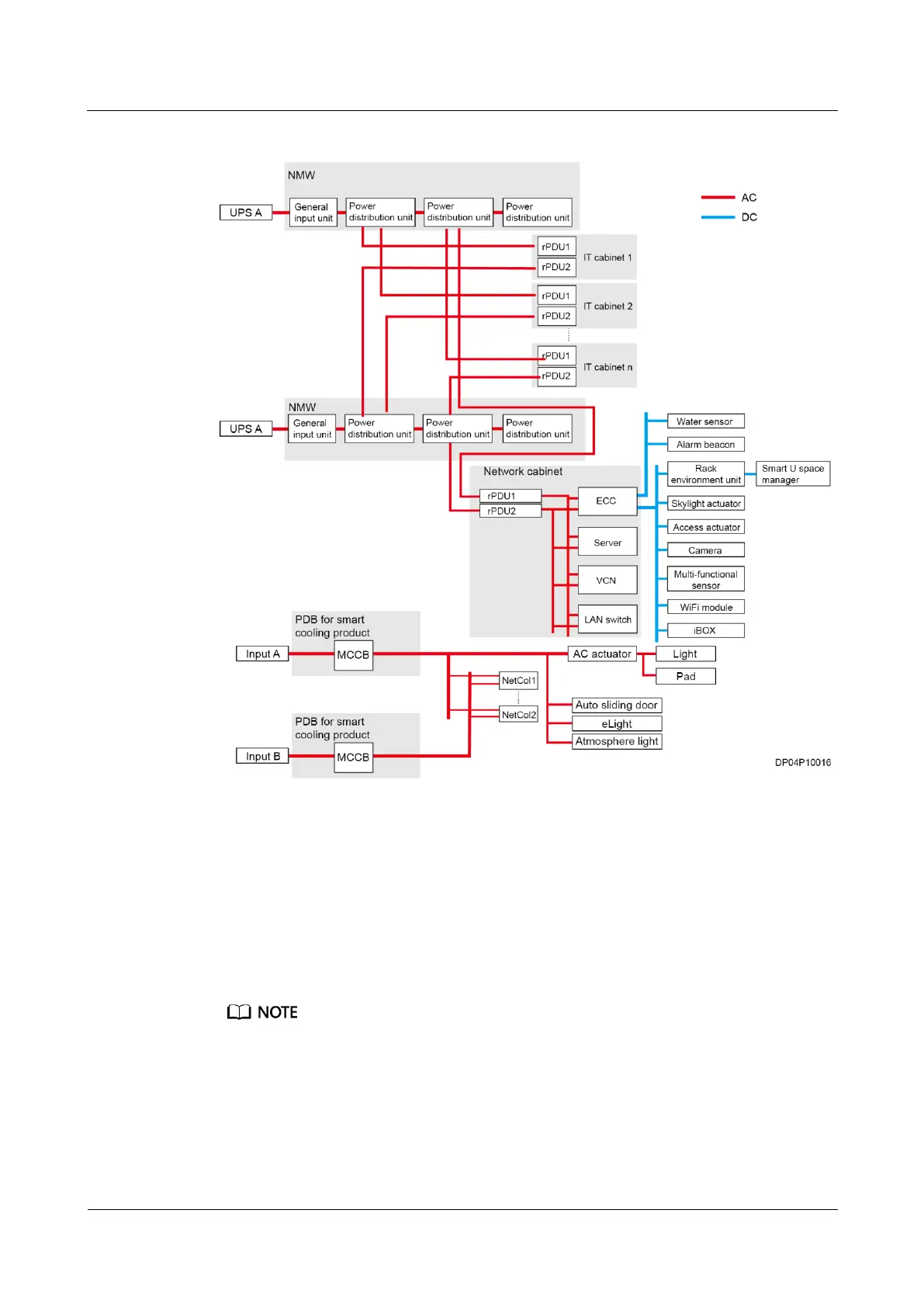

Figure 5-19 2N power supply and distribution system diagram (new main way)
5.2 System Hardware
5.2.1 Integrated UPS (50 kVA, 125 kVA)
5.2.1.1 Product Structure

The appearance of the UPS5000-E-125K-HABBS (02311FTD-002, 02311FTD-007) is similar to
that of the UPS5000-E-50K-HABBS (02311FTB-001, 02311FTB-009).

The appearance of the UPS5000-E-125K-HASBS (02311FTE-002) is similar to that of the
UPS5000-E-50K-HASBS (02311FTC-001).

The appearance of the UPS5000-E-125K-HASBS (02311FTE-004, 02311FTE-006) is similar to that
of the UPS5000-E-50K-HASBS (02311FTC-004, 02311FTC-006).
