Table 5-44 Monitoring specifications
Power distribution mains input
Detects the voltage, current, active power,
reactive power, power factor, electric
energy, harmonic, and key node
temperature.
Power distribution branch output
Detects the branch loop current, load
percentage, active power, apparent power,
electric energy, and key node temperature.
5.2.5.1 General Input Unit
The general input unit is classified into two types: left-installed general input unit and
right-installed general input unit.
When the personnel are close to the cable tray and face the aisle, the left cabinets use the
left-installed general input unit, and the right cabinets use the right-installed general
input unit.
Left-installed general input unit: Cables are routed in from the right and out from the left.
Right-installed general input unit: Cables are routed in from the left and out from the
right.

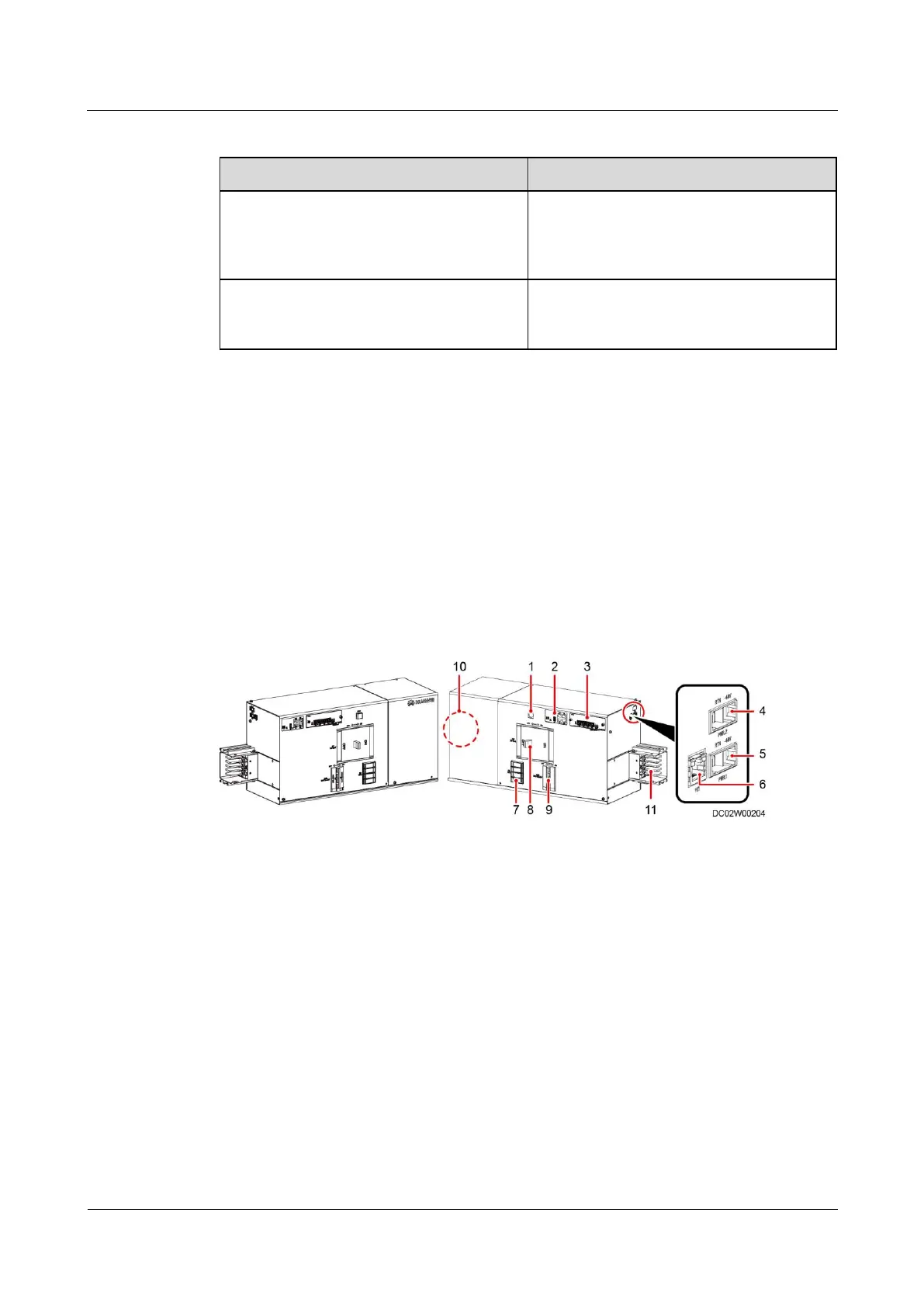

Figure 5-54 General input unit
(3) Integrated management
card
