8 Intelligent Module Management System
Issue 06 (2020-05-21)
Copyright © Huawei Technologies Co., Ltd.
180
Item
New Version
Buzzer sounds
The buzzer sounds three.
Authorized fingerprint
collection
LED indicator
The indicator blinks blue,
red, and blue in order.
Fingerprint reader
The indicator turns on
(white).
Buzzer sounds
The buzzer sounds once.
Card swiping
LED indicator
The indicator blinks blue,
red, and blue in order.
Buzzer sounds
The buzzer sounds once.
8.3.8.4 Fingerprint and Card Reader

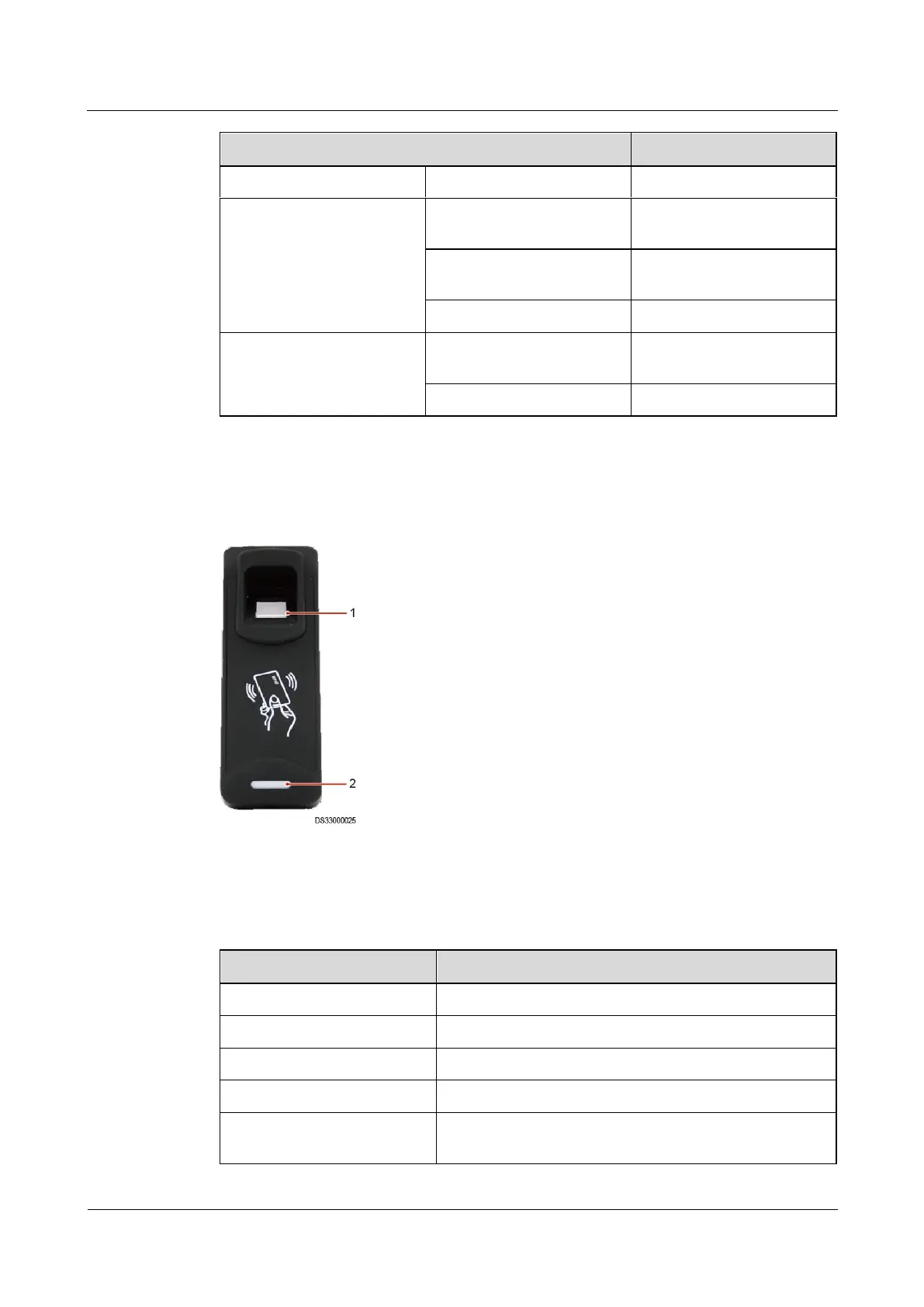

Figure 8-33 Fingerprint and card reader
(1) Fingerprint reader
(2) LED indicator
Table 8-47 Fingerprint and card reader
Item
Specifications
Dimensions (L x Wx H)
156 mm x 53 mm x 38 mm
Rated operating voltage
12 V DC ± 5%
Rated operating current
300 mA ± 5%
Card type supported
IC card
Authorized storage
A maximum of 3000 authorized users, with a maximum
of 6000 fingerprints
