FusionModule2000 Smart Modular Data Center
Product Description
5 Power Supply and Distribution System
Copyright © Huawei Technologies Co., Ltd.
If cables are prepared onsite, follow the three methods below:
Connect pin 1 and pin 2. Pin 1 connects to RS485+ and pin 2 connects to RS485–.
Connect pin 4 and pin 5. Pin 4 connects to RS485+ and pin 5 connects to RS485–.
Connect pins 1, 2, 4, and 5. Twist cables to pin 1 and pin 4 into one cable and then connect it to
RS485+. Twist cables to pin 2 and pin 5 into one cable and then connect it to RS485–.
5.2.2.5 MDU
Appearance

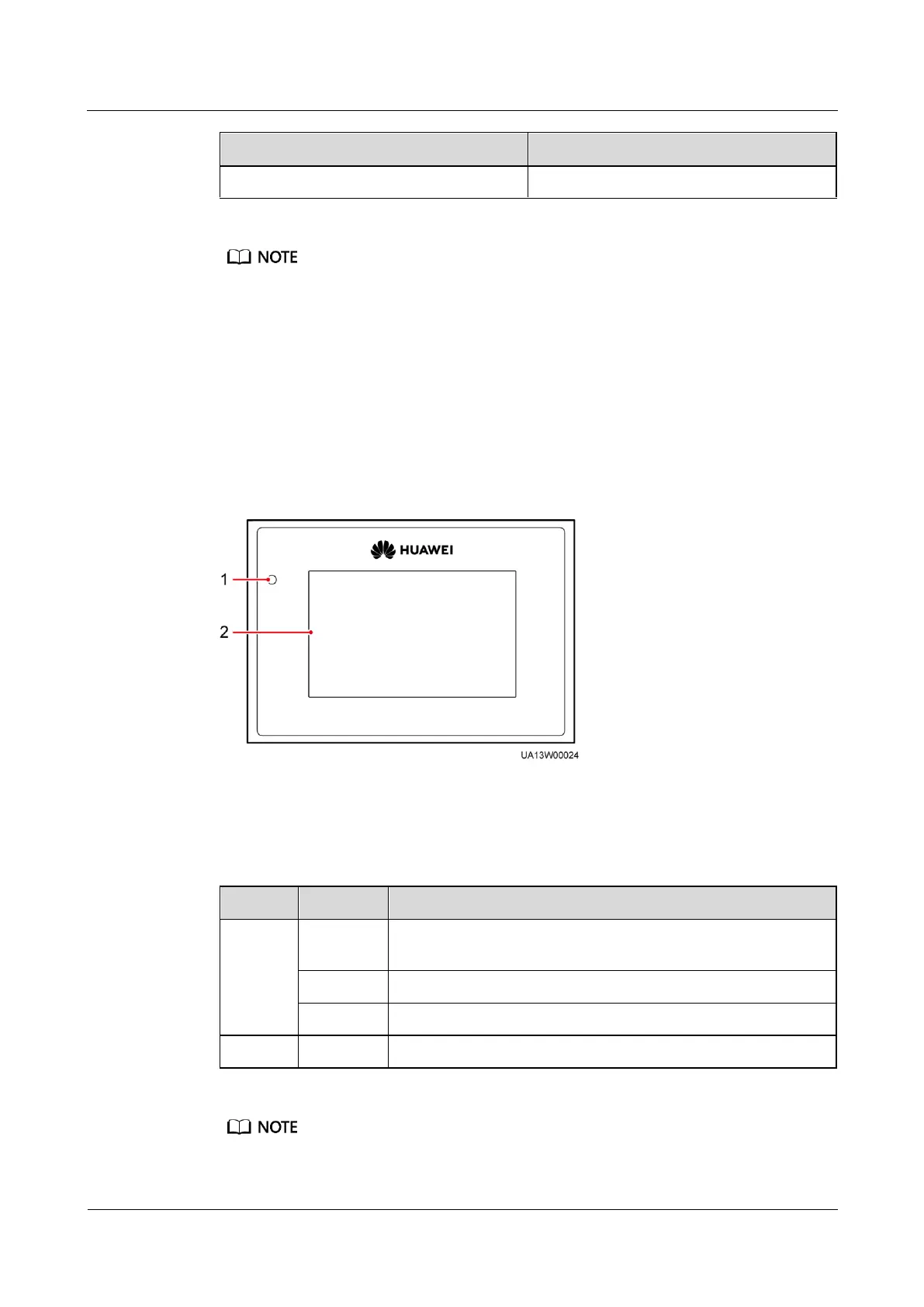

Figure 5-49 MDU
Table 5-28 Status indicator
A critical alarm has been generated, and the buzzer sounds
continuously.
A minor alarm has been generated, and the buzzer buzzes at 2 Hz.
The UPS is running properly or a warning has been generated.
The indicator on the MDU panel is yellow when the bypass supplies power in non-ECO mode.
