Table 5-26 COM2 pin definition
Pin
Description
1
RS485+
2
RS485-
3
N/A
4
RS485+
5
RS485-
6
GND
7
CANH0
8
CANL0
Figure 5-48 and Table 5-27 describe the RS485 pin definitions.

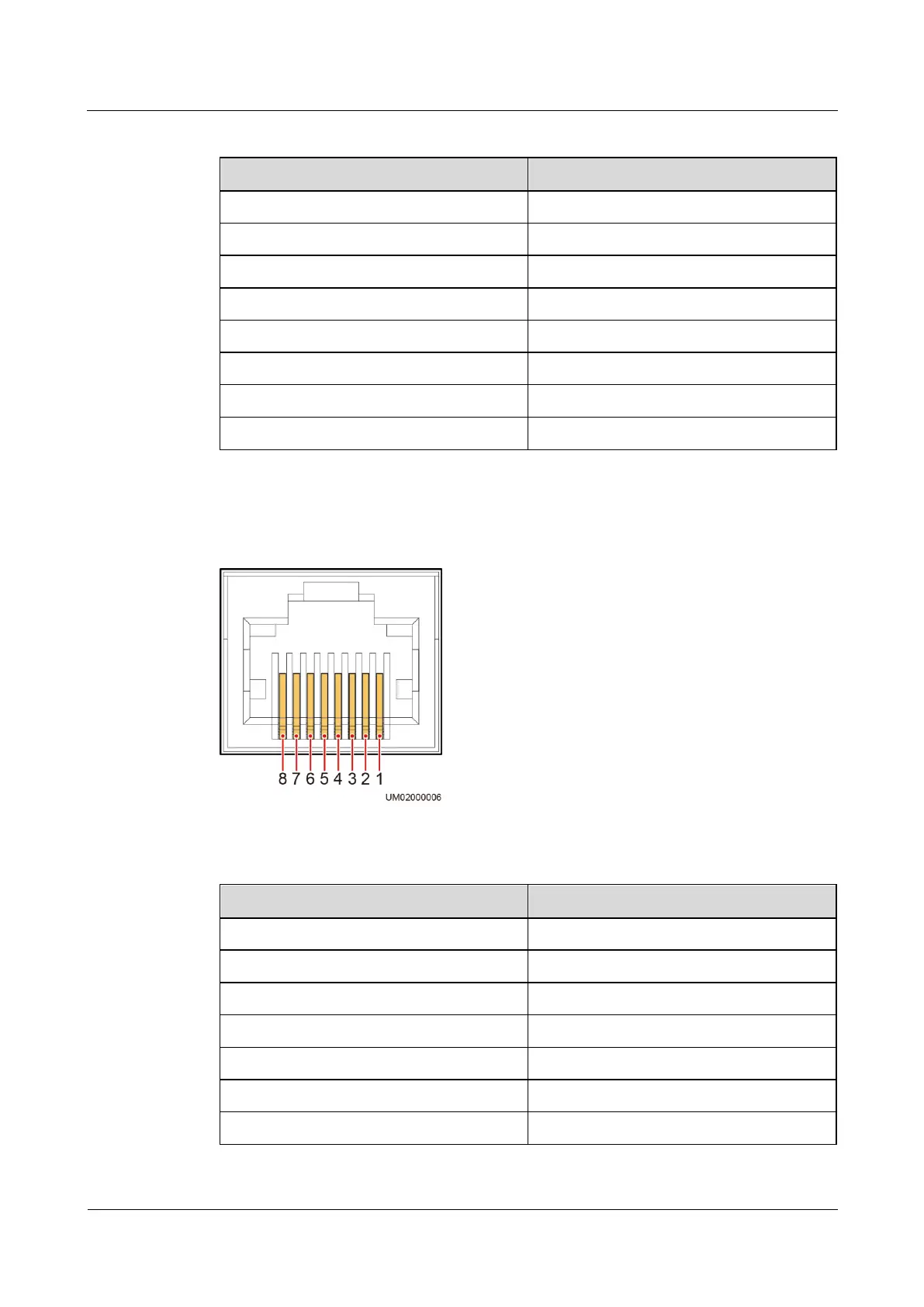

Figure 5-48 RS485 pins
Table 5-27 RS485 pin definition
Pin
Description
1
RS485_T+
2
RS485_T–
3
N/A
4
RS485_R+
5
RS485_R–
6
GND
7
N/A
