5.2.2.3 Bypass Module
Appearance

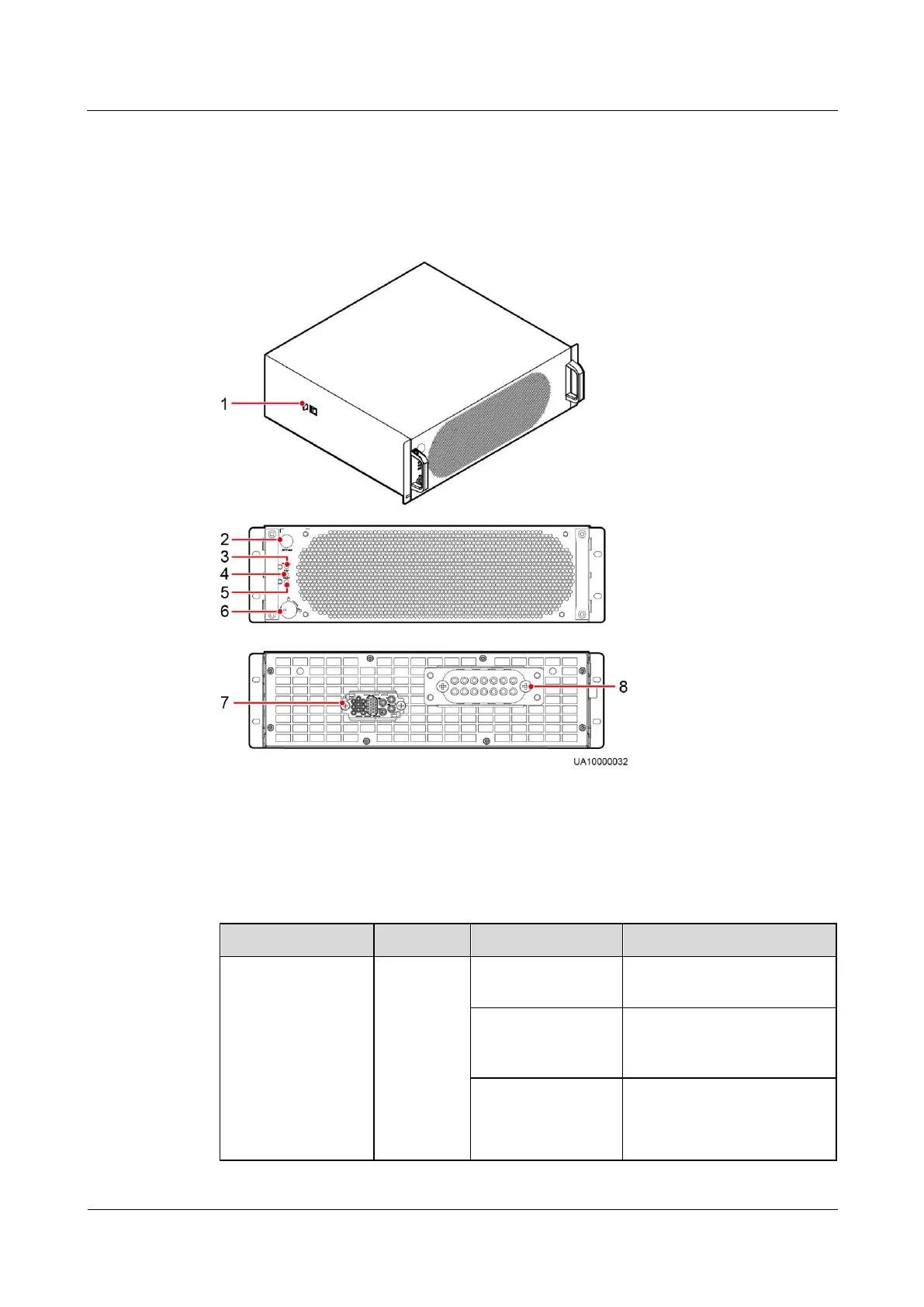

Figure 5-39 Bypass module
(1) Positioning lock
(2) Cold start button
(3) Run indicator
(4) Alarm indicator
(5) Fault indicator
(6) Ready switch
(7) Signal port
(8) Input and output ports
Table 5-20 Indicator description
Indicator
Color
Status
Description
Run indicator
Green
Steady on
The system is working in
bypass mode.
Blinking at long
intervals
The bypass has no output
(blinking at 0.2 Hz, on for
2.5s and off for 2.5s).
Blinking at short
intervals
The bypass is not configured
or the DSP software is being
upgraded (blinking at 4 Hz,
on for 0.125s and off for
