Item
Specifications
Operating
temperature
-20°C to +70°C
Storage
temperature
-40°C to +90°C
Relative humidity
10%–90% RH (non-condensing)
Storage humidity
5%–90% RH (non-condensing)
Power
< 0.8 W
8.3.6 Skylight Actuator
The skylight actuator controls the rotating skylight on the aisle containment of the smart
module through the alarm linkage information from the fire extinguishing system or the
control information from the upper computer. The skylight actuator supports E-labels and
wireless networking (802.15.4).

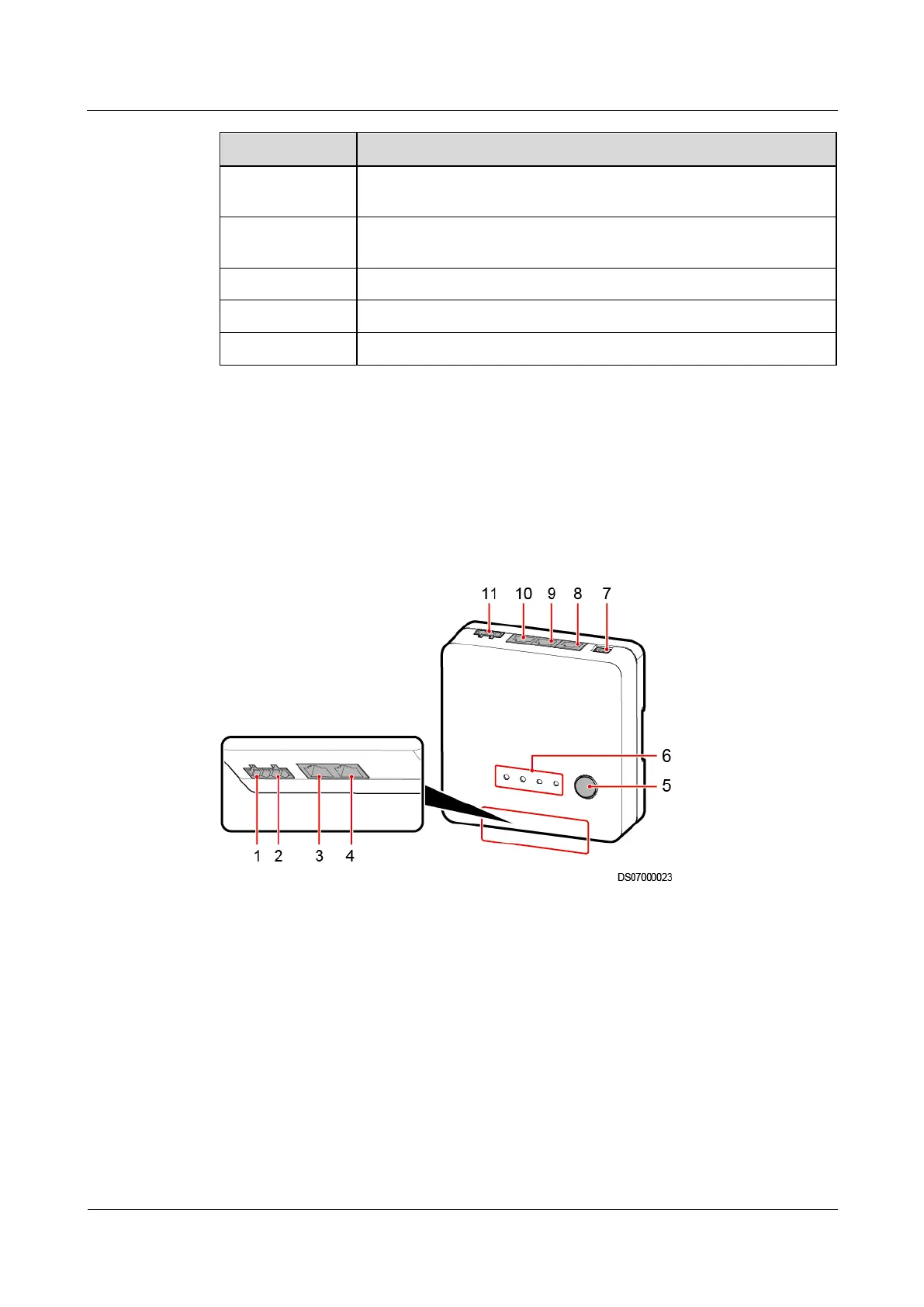

Figure 8-22 Skylight actuator
(1) LOCK/GND
magnetic lock DO
output port
(2) BUTTON/GND
window open button
DI input port
(3) AI/DI_1 sensor
input port
(4) AI/DI_2 sensor
input port
(5) BLINK button
(6) Status indicator
(7) Address DIP
switch
(8) COM1 port
(9) COM2 port
(10) POE port
(11) 48 V power port
