8.3.7.3 T/H Sensor (BOM number: 02310NBS)

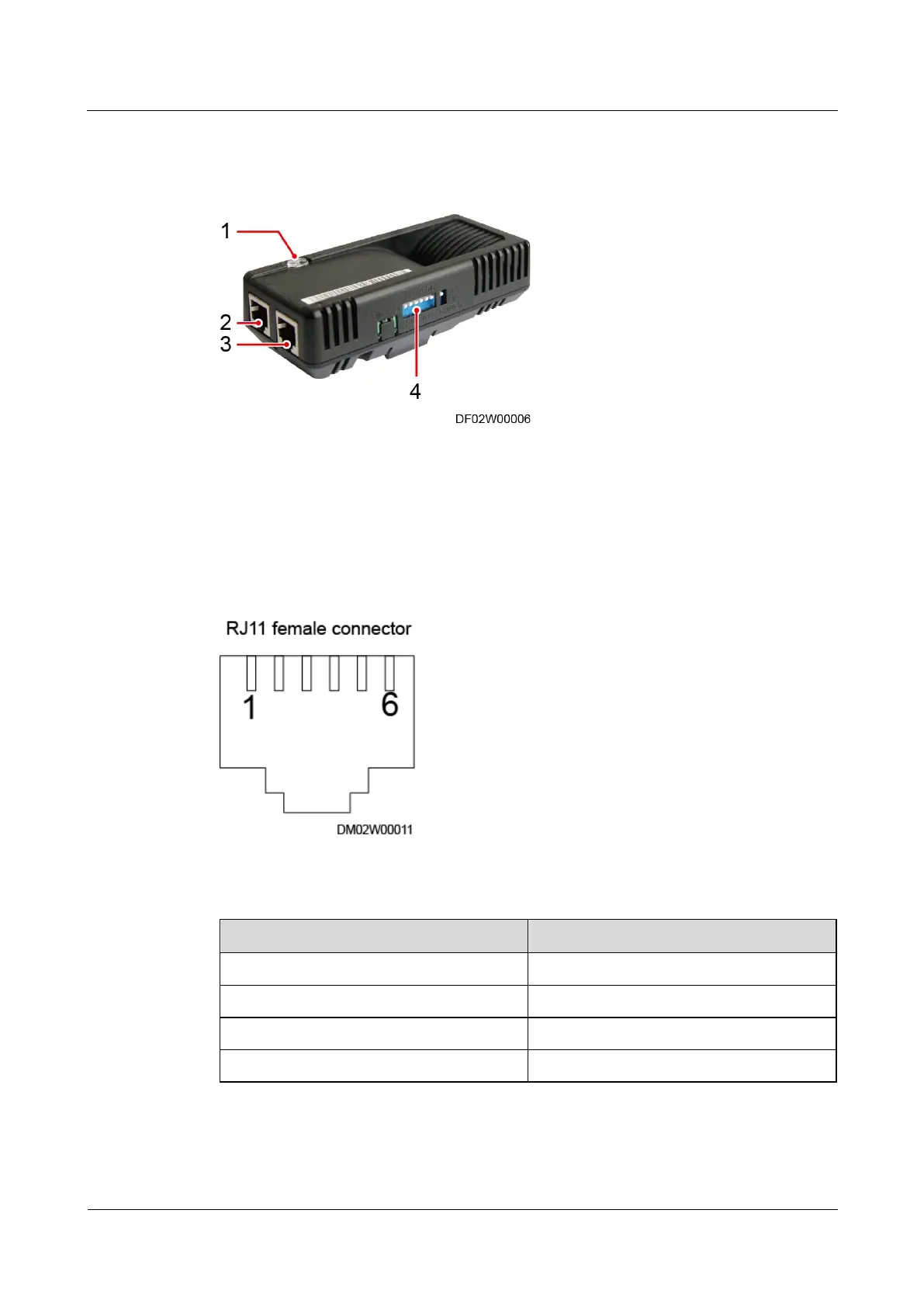

Figure 8-25 Appearance
(1) Status indicator
(2) RS485_IN
(3) RS485_OUT
(4) Address DIP switch
The RS485 communications ports of the T/H sensor use RJ11 (6P6C) connectors.
Figure 8-26 Pins of an RJ11 connector
Table 8-34 Pin description of an RJ11 connector
Pin
Description
Pin 1 or Pin 2
GND
Pin 3
RS485-
Pin 4
RS485+
Pin 5 or Pin 6
12V
