5.2.1.2 Power Module
Appearance

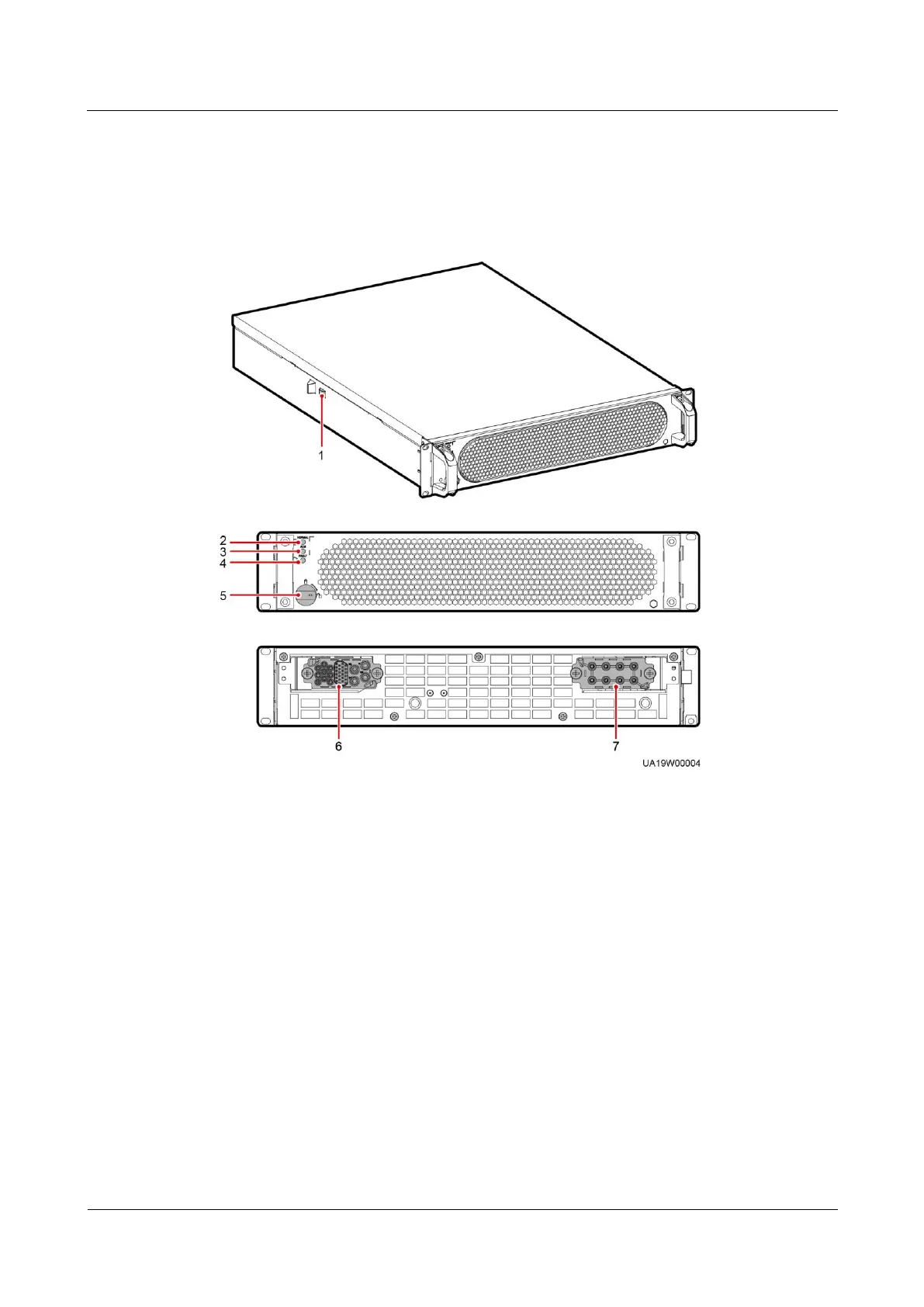

Figure 5-23 Power module
(1) Positioning lock
(2) Run indicator
(3) Alarm indicator
(4) Fault indicator
(5) Ready switch
(6) Output port
(7) Input port
Functions
The power module consists of a PFC rectifier and inverter. The power module performs
AC-DC or DC-DC conversion on the mains and battery inputs, and stabilizes the bus voltage.
The inverter converts DC inputs into AC sine wave outputs.
Specifications

Dimensions (H x W x D): 86 mm x 442 mm x 620 mm

Weight: < 21 kg

Rated output capacity: 25 kVA/25 kW

Power density: 17.2 W/inch
