Huawei FusionModule2000 - T;H Sensor (BOM Number: 33010516)

FusionModule2000 Smart Modular Data Center
Product Description
8 Intelligent Module Management System
Issue 06 (2020-05-21)
Copyright © Huawei Technologies Co., Ltd.
170
Table 8-35 Temperature and humidity sensor specifications
Item
Specifications
Temperature measuring range
–20°C to +70°C
Temperature accuracy
±1°C
Operating temperature
–10°C to +55°C
Operating voltage
9–16 V DC
Storage temperature
–40°C to +70°C
Output
RS485
8.3.7.4 T/H Sensor (BOM Number: 33010516)

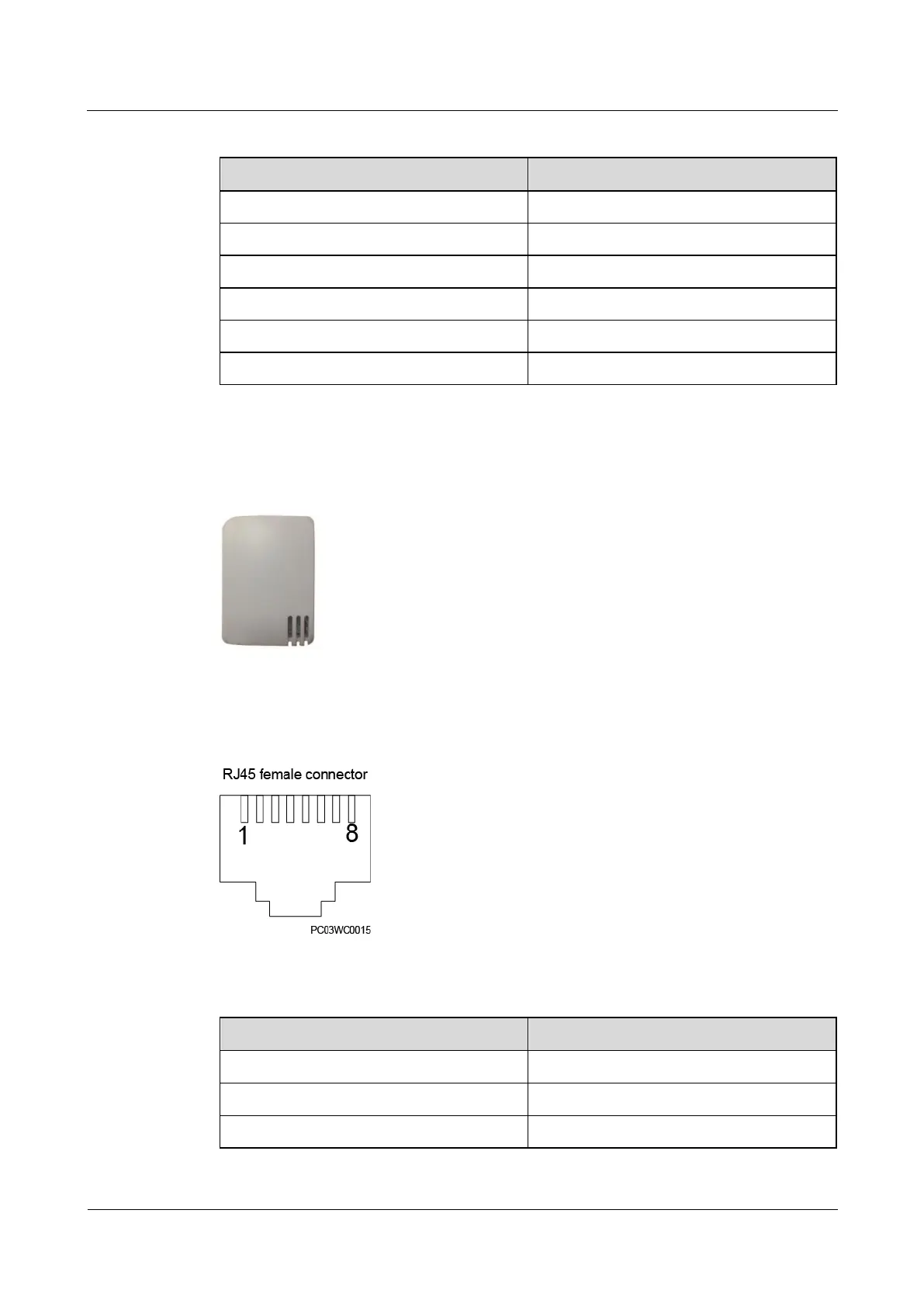

Figure 8-27 Appearance
The T/H sensor uses an RJ45 connector.
Figure 8-28 Pins of an RJ45 connector
Table 8-36 Pin description of an RJ45 connector
Pin
Description
Pin1 or Pin 4
A
Pin2 or Pin 5
B
Pin3
V+
