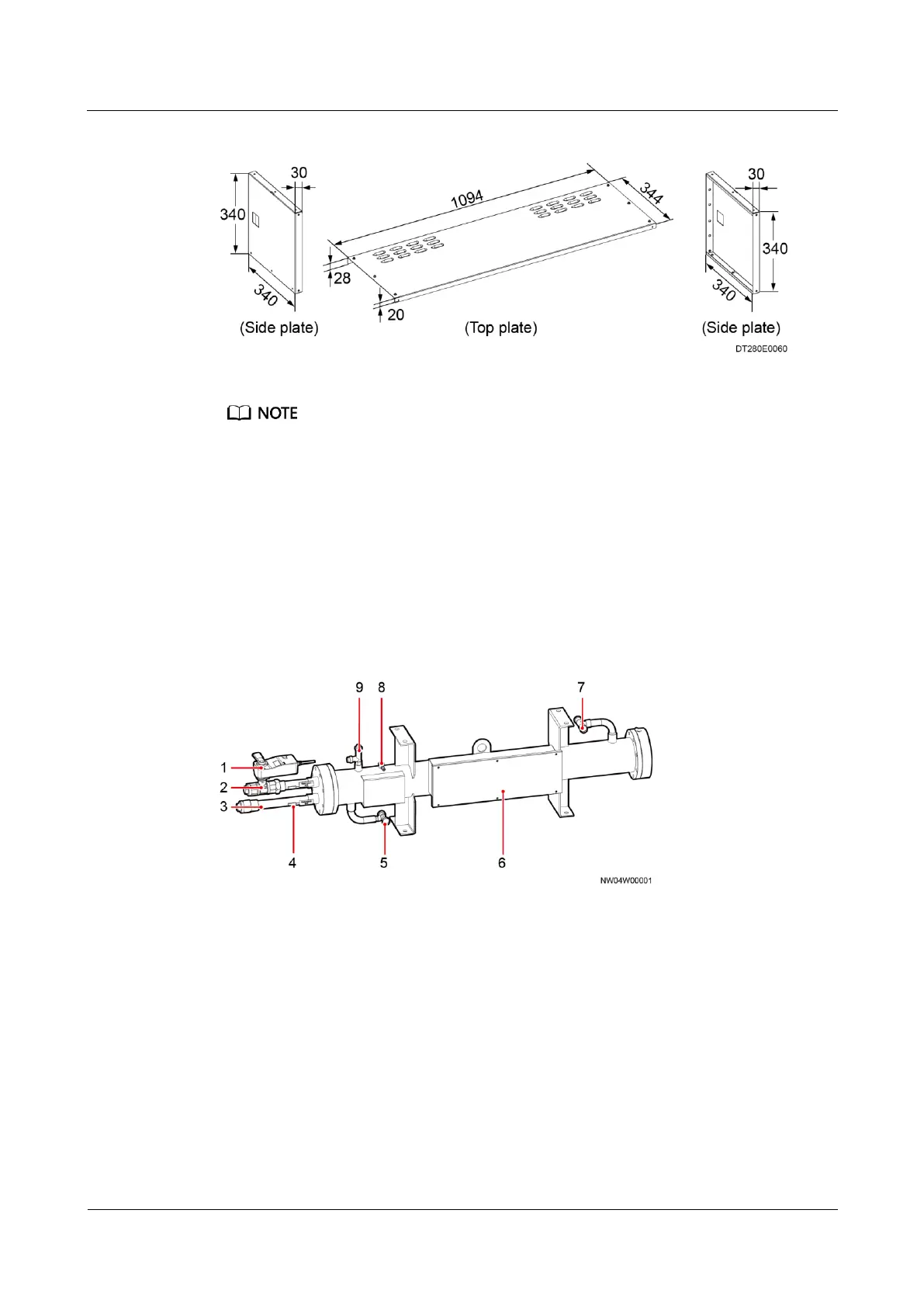

Figure 7-18 Sunshade dimensions (unit: mm)
Sunshades do not apply to the NetCol500-A026.
7.6 Water Cooling Module
Product Composition
The NetCol500 water cooling module consists of an electric control box, a water valve
actuator, and a rack. The following describes the components and configuration.
Figure 7-19 Water cooled module components
(1) Water valve actuator
(2) Water return
pipe
(3) Water supply pipe
(4) Negative temperature coefficient
(NTC)
(5) Liquid pipe
(6) Electric control
box
(7) Gas pipe
(8) Needle valve
(9) Safety valve
Features

The water valve is pre-integrated to save onsite installation time.
