7.4.1 Product Composition

Dimensions

The standard dimensions (H x W x D) of the 46 kW smart cooling product are 2000 mm x 600

mm x 1200 mm.

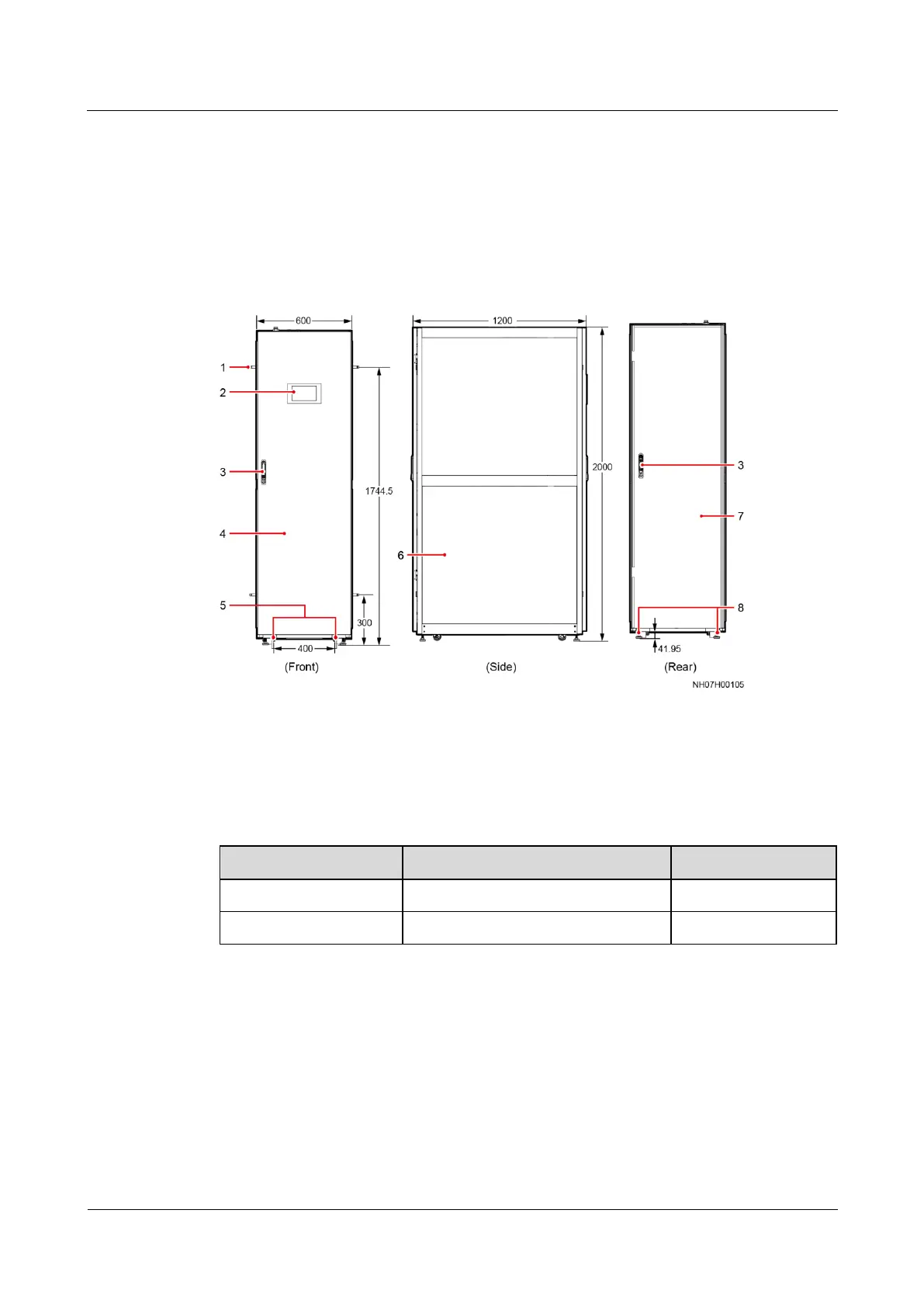

Figure 7-9 Dimensions (unit: mm)

(1) Cabinet connecting kit

(2) Controller panel

(3) Door lock

(4) Front door

(5) Mounting hole

(6) Side panel

(7) Rear door

(8) Anchor

Table 7-16 Dimensions

Dimensions

H x W x D (mm)

Expansion Method

Standard dimensions

2000 x 600 x 1200

Expanded dimensions

2200 x 600 x 1200

Install a top frame.

Components

The NetCol5000-A mainly consists of a DC variable-frequency compressor, EC fan,

evaporator, electronic expansion valve (EEV), oil separator, sight glass, filter dryer, air filter,

electric heater (optional), wet film humidifier (optional), condensate pump (optional), check

valve, differential pressure switch, and temperature and humidity sensor (T/H sensor).
