8.3.8.2 (Optional) Aisle Access Control System
8.3.8.3 Fingerprint and Card Reader with a Keypad

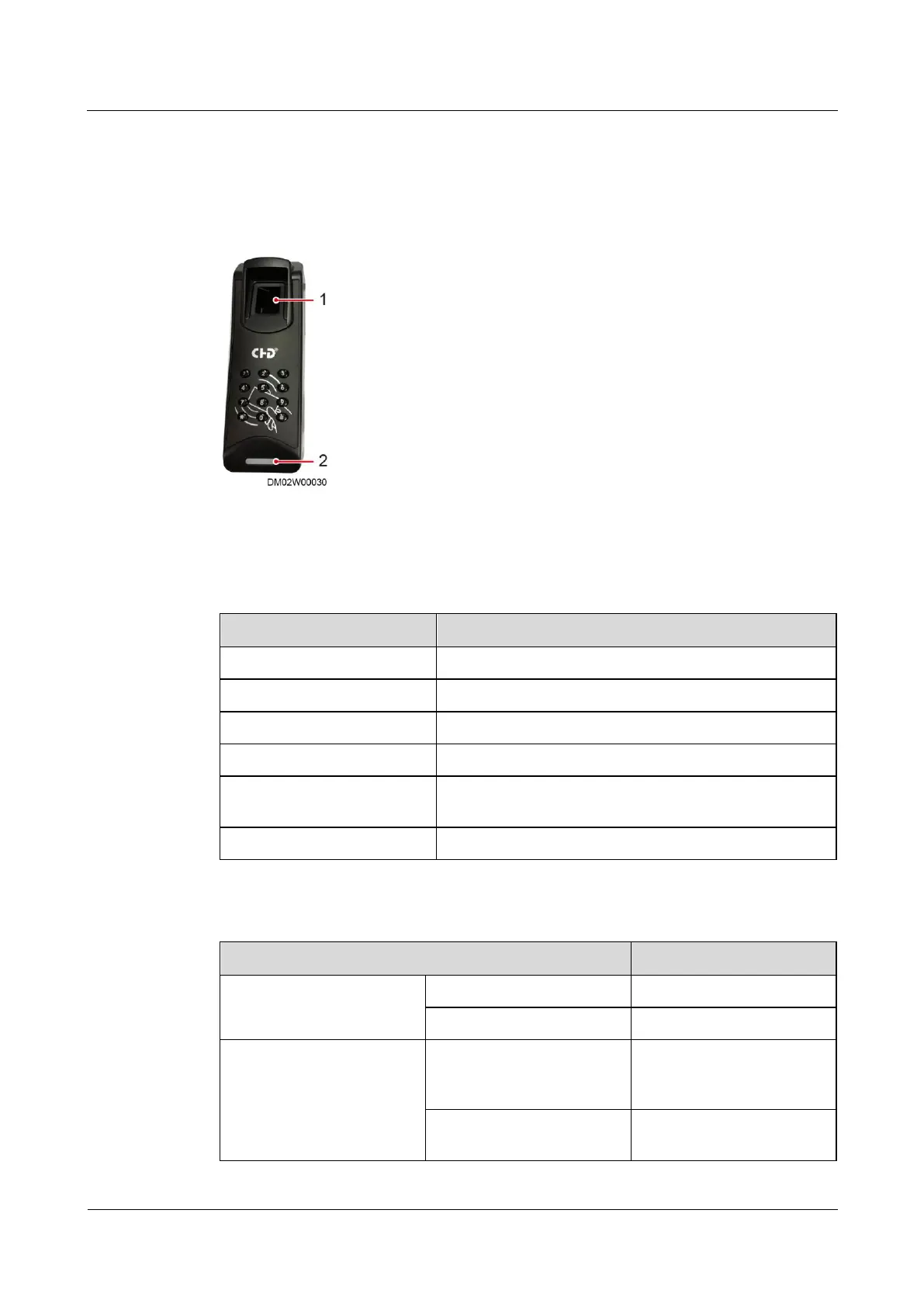

Figure 8-32 Fingerprint and card reader with a keypad
(1) Fingerprint reader
(2) LED indicator
Table 8-45 Specifications for the fingerprint and card reader with a keypad
Item
Specifications
Dimensions (L x W x H)
156 mm x 53 mm x 38 mm
Rated operating voltage
12 V DC ± 15%
Rated operating current
300 mA ± 15%
Card type supported
IC card
Authorized storage
A maximum of 3000 authorized users, with a maximum
of 6000 fingerprints
Communications mode
RS485 and Wiegand communications ports
Table 8-46 Access control device operating status
Item
New Version
Standby
LED indicator
The indicator is steady blue.
Fingerprint reader
The indicator is off.
Unauthorized fingerprint
collection
LED indicator
The indicator blinks blue,
red, blue, red, and blue in
order.
Fingerprint reader
The indicator turns on
(white).
