FusionModule2000 Smart Modular Data Center

Product Description

5 Power Supply and Distribution System

Issue 06 (2020-05-21)

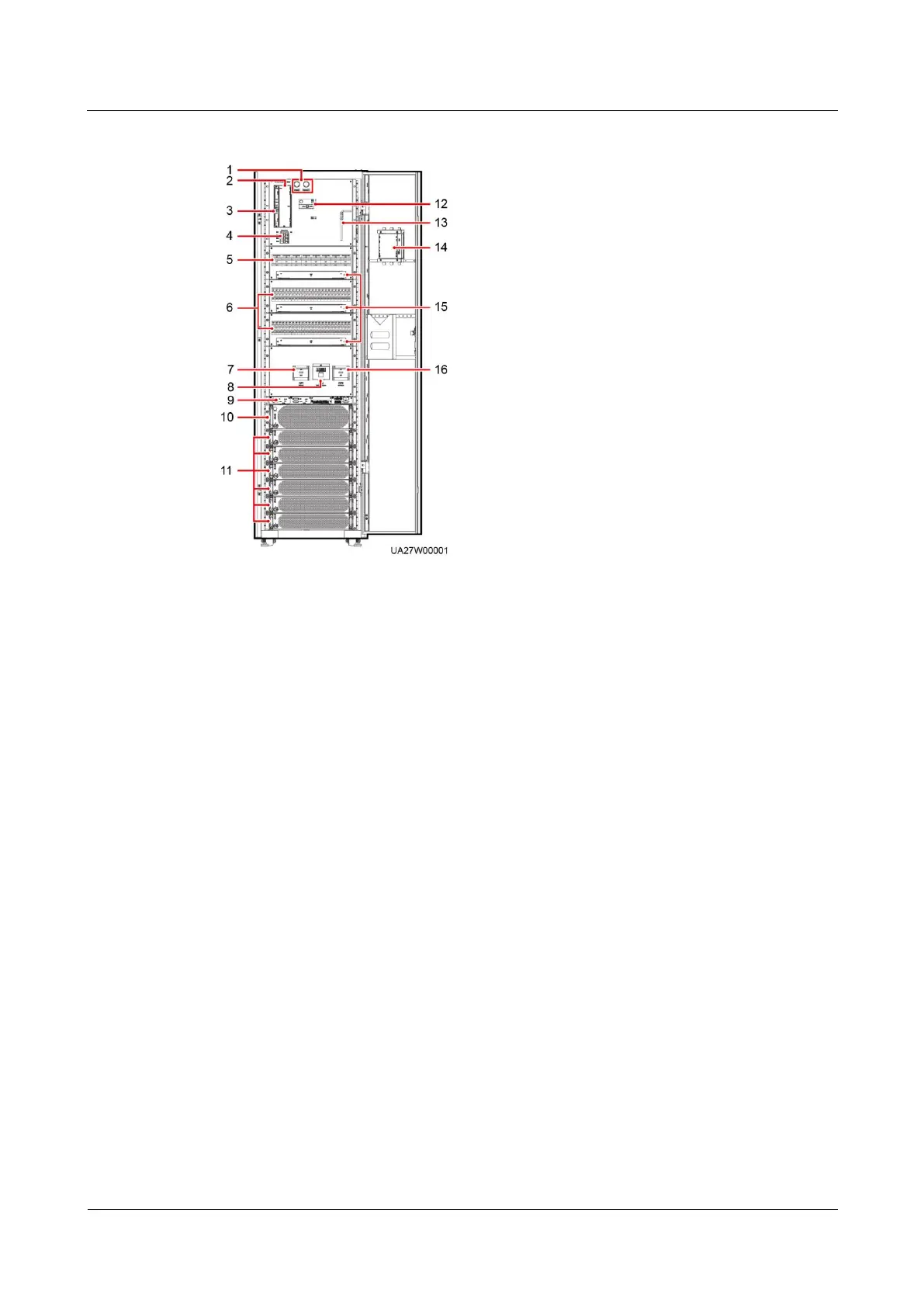

Figure 5-22 UPS5000-E-125K-HASBS (02311FTE-004) front view

(1) Power input

status indicator

(2) ATS drive module

(3) ATS monitoring

module

(4) Lighting circuit

breaker

(5) Power distribution circuit breaker

for the smart cooling product

(6) IT load circuit breaker

(7) UPS input

circuit breaker

(8) UPS maintenance bypass circuit

breaker

(9) Control module

(10) Bypass module

(11) Power module

(12) ATS transfer switch

(13) ATS handle

(14) Monitor display unit (MDU)

(15) Power distribution

monitoring board

(16) UPS output

circuit breaker
