FusionModule2000 Smart Modular Data Center
Product Description
7 Temperature Control System
Issue 06 (2020-05-21)
Copyright © Huawei Technologies Co., Ltd.
128

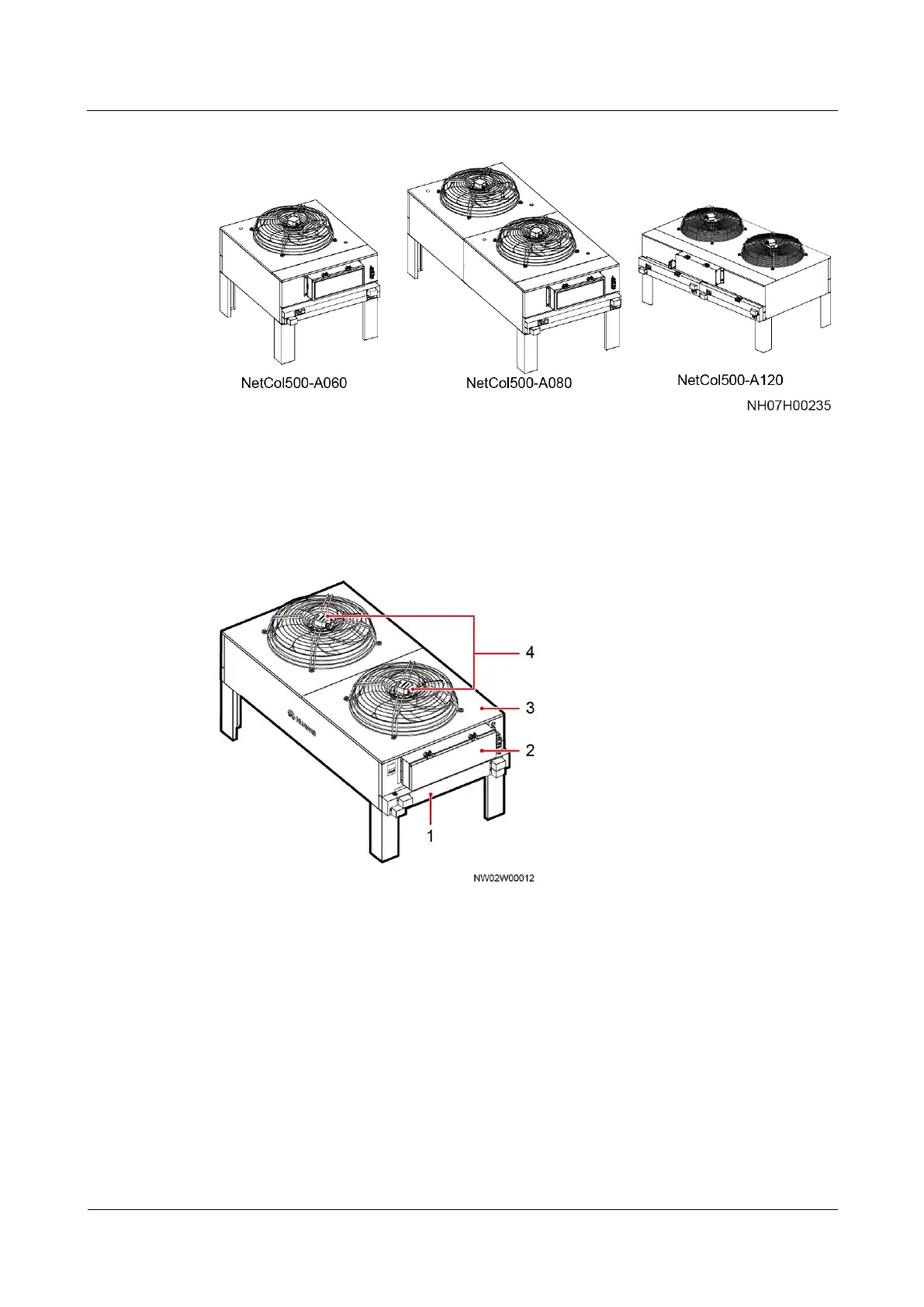

Figure 7-13 Appearance 2
Components
The NetCol500 outdoor unit consists of a condenser, electric control box, rack, and fans.
Figure 7-14 Components
(1) Condenser
(2) Electric control box
(3) Rack
(4) Fans
