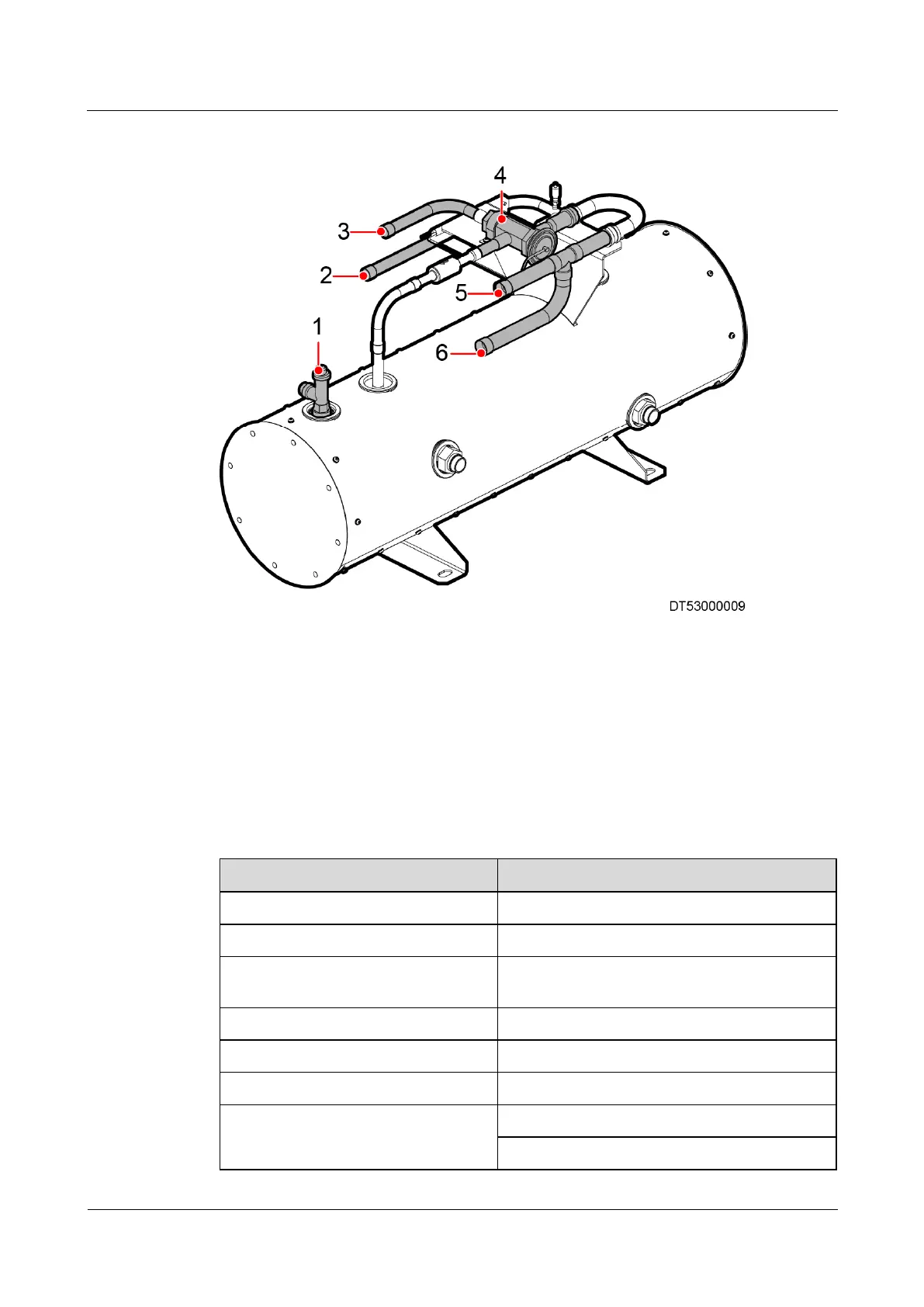

Figure 7-16 Low-temperature component

(1) Safety valve

(2) Connecting to indoor

unit liquid pipe

(3) Connecting to outdoor

unit liquid pipe

(4) Condensing pressure

control valve

(5) Connecting to outdoor

unit gas pipe

(6) Connecting to indoor unit

gas pipe

A low-temperature component is mandatory when the outdoor ambient temperature may drop

to –20ºC.

Table 7-25 Low-temperature component specifications

Item

Specifications

Heater power supply

220–240 V AC, 1 Ph, 50 Hz or 60 Hz

Heater power supply voltage tolerance

Rated voltage ±10%

Heater power supply frequency

tolerance

Rated frequency ±3 Hz

Refrigerant

R410A

Liquid pipe outer diameter

5/8 inch (15.88 mm)

Gas pipe outer diameter

7/8 inch (22.22 mm)

H x W x D

632 mm x 944 mm x 507 mm (with package)

470 mm x 828 mm x 300 mm (without package)
