FusionModule2000 Smart Modular Data Center
Product Description
10 Surge Protection and Grounding System
Copyright © Huawei Technologies Co., Ltd.

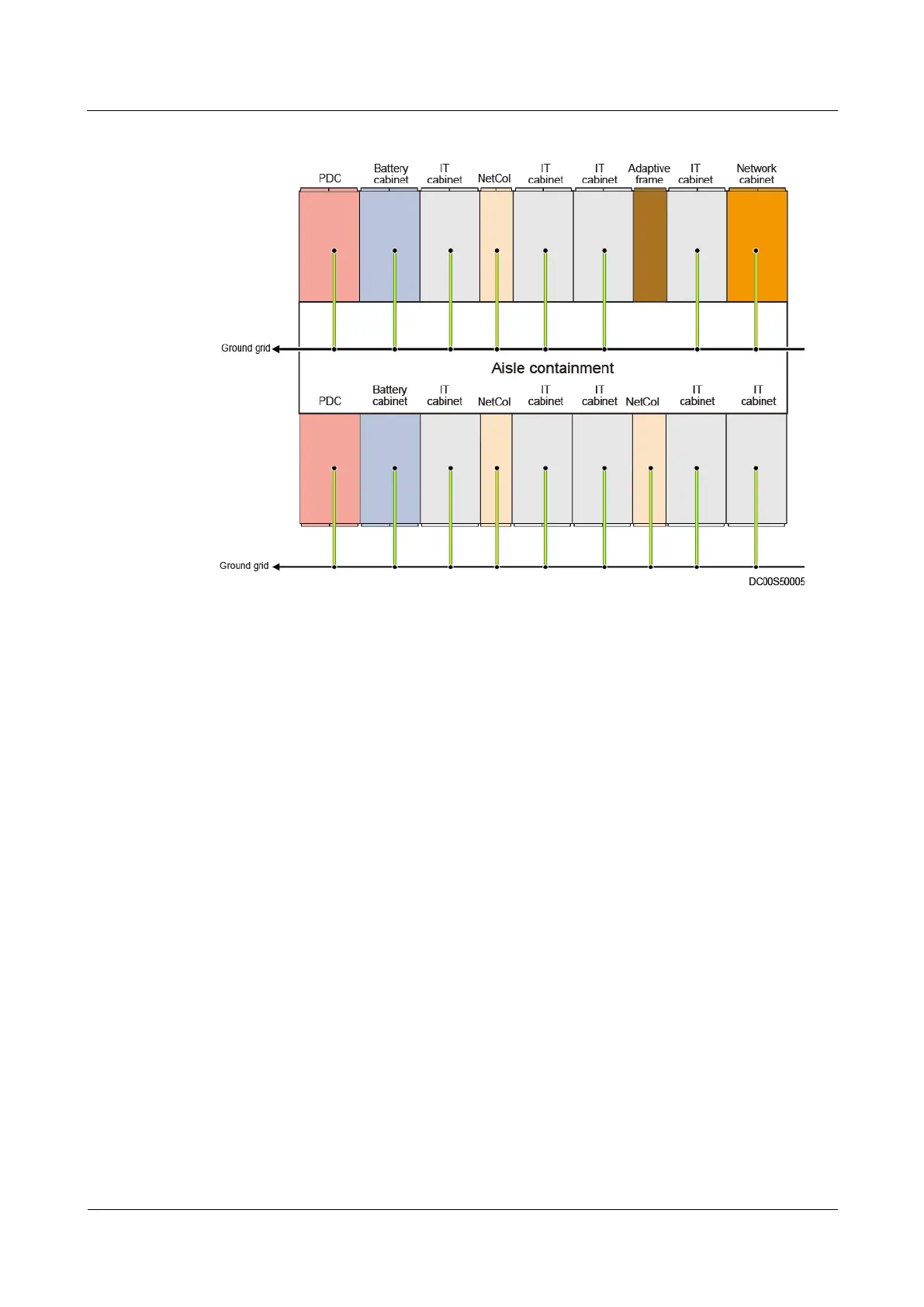

Figure 10-2 M-shaped (grid) grounding solution for a dual-row aisle containment
1. Each cabinet in the smart module connects to the ground grid nearby using ground cables
with a minimum cross-sectional area of 16 mm
2
.
2. Use 100 mm x 0.3 mm copper foils or 25 mm
2
braided copper strips for the equipotential
bonding grid, and use 30 mm x 3 mm red copper strips for the equipotential bonding bar
based on the customer's configurations.
