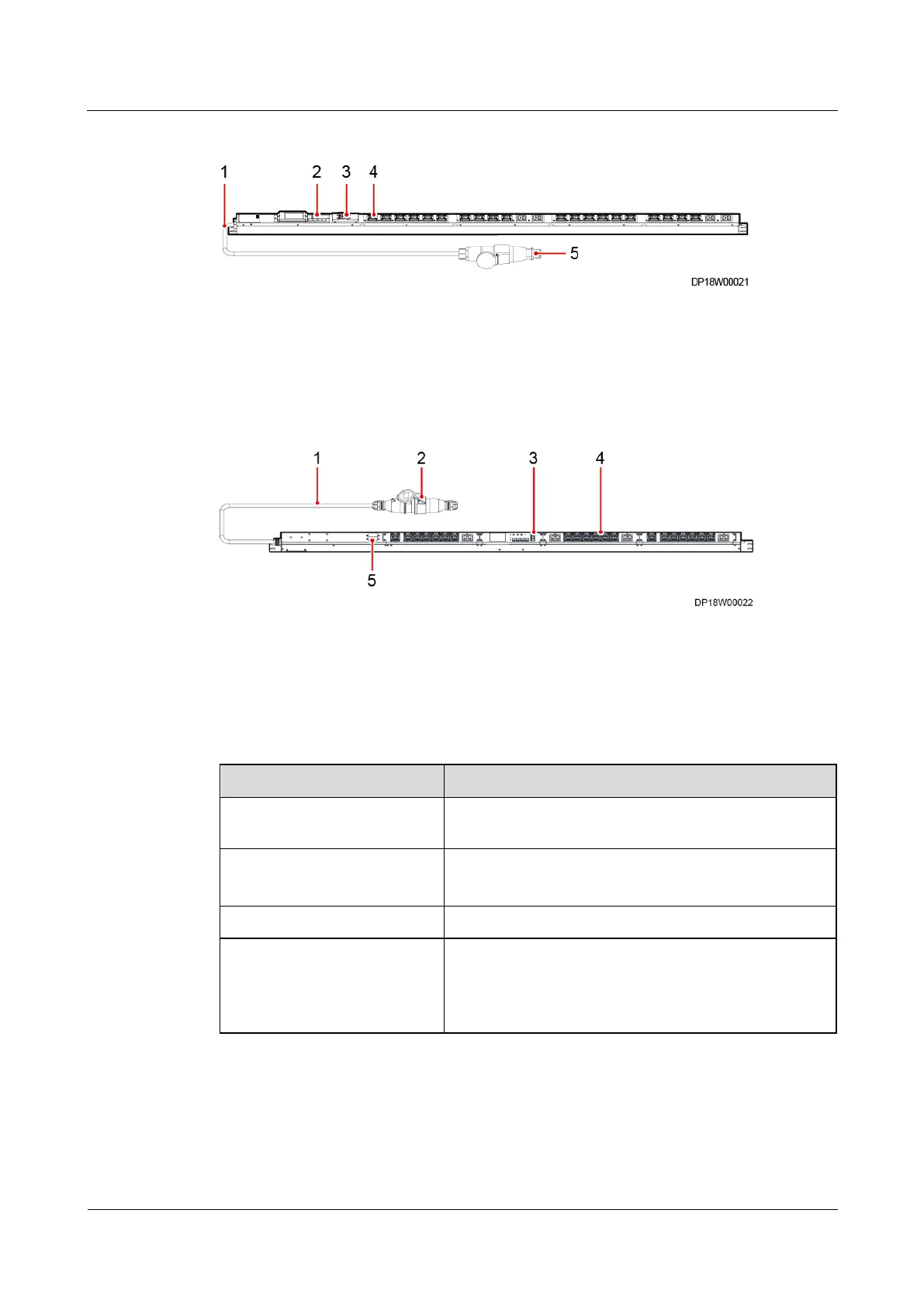

Figure 5-64 Smart rPDU 1
(1) Input power cable
(2) Main control module
(3) Hydraulic circuit breaker
(4) Output sockets
(5) Industrial connector
Figure 5-65 Smart rPDU 2
(1) Input power cable
(2) Industrial connector
(3) Main control module
(4) Output sockets
(5) Hydraulic circuit breaker
Table 5-53 Technical specifications of the smart rPDU
Item
Specifications
Function
Supports single-phase AC 200–240 V power supply,
twenty 10 A outputs, four 16 A outputs
Dimensions (H x W x D)
1866 mm x 60 mm x 48 mm (appearance 1)
1866 mm x 56 mm x 52 mm (appearance 2)
Output quantity and system
20 x C13 + 4 x C19
Monitoring function
Monitors the input power, voltage, current, power factor,
and electric energy
Monitors the power, current, power factor, and electric
energy of each output
