Huawei N2000H V3 User Manual

N2000H V3 Appliance
User Guide
1 Product Overview
Issue 04 (2018-11-06)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
5
PSU port
6
PSU indicator
7
PSU
8
Serial port
9
VGA port
10
Management network port (Mgmt)
11
USB 3.0 port
12
UID indicator
13
PCIe slot
14
Connectivity status indicator
15
Data transmission status
indicator
16
Service network port
17
Rear hard disk

You can configure two rear 3.5-inch hard disks in position 1 shown in Figure 1-3. The
hard disks are numbered A0 and B0 from top down.

You can configure two rear two rear 3.5-inch hard disks on in position 4 shown in Figure
1-3. The hard disks are numbered A1 and B1 from top down.
I/O module 2 supports only one riser card if the Appliance in dual-CPU configuration is
not equipped with rear hard disks. One riser card provides two or three PCIe slots.

You can configure a GE NIC in position 16 in Figure 1-3.

The rear hard disks in position 17 shown in Figure 1-3 are numbered as follows:
− Numbered 24 to 35 from top down and from left to right when the N2000H V3 is
equipped with one RAID controller card
− Numbered 0 to 11 from top down and from left to right when the N2000H V3 is
equipped with two RAID controller cards
ESNs
An Equipment Serial Number (ESN) is a string that uniquely identifies a Appliance. An ESN
is required when you apply for technical support to Huawei.

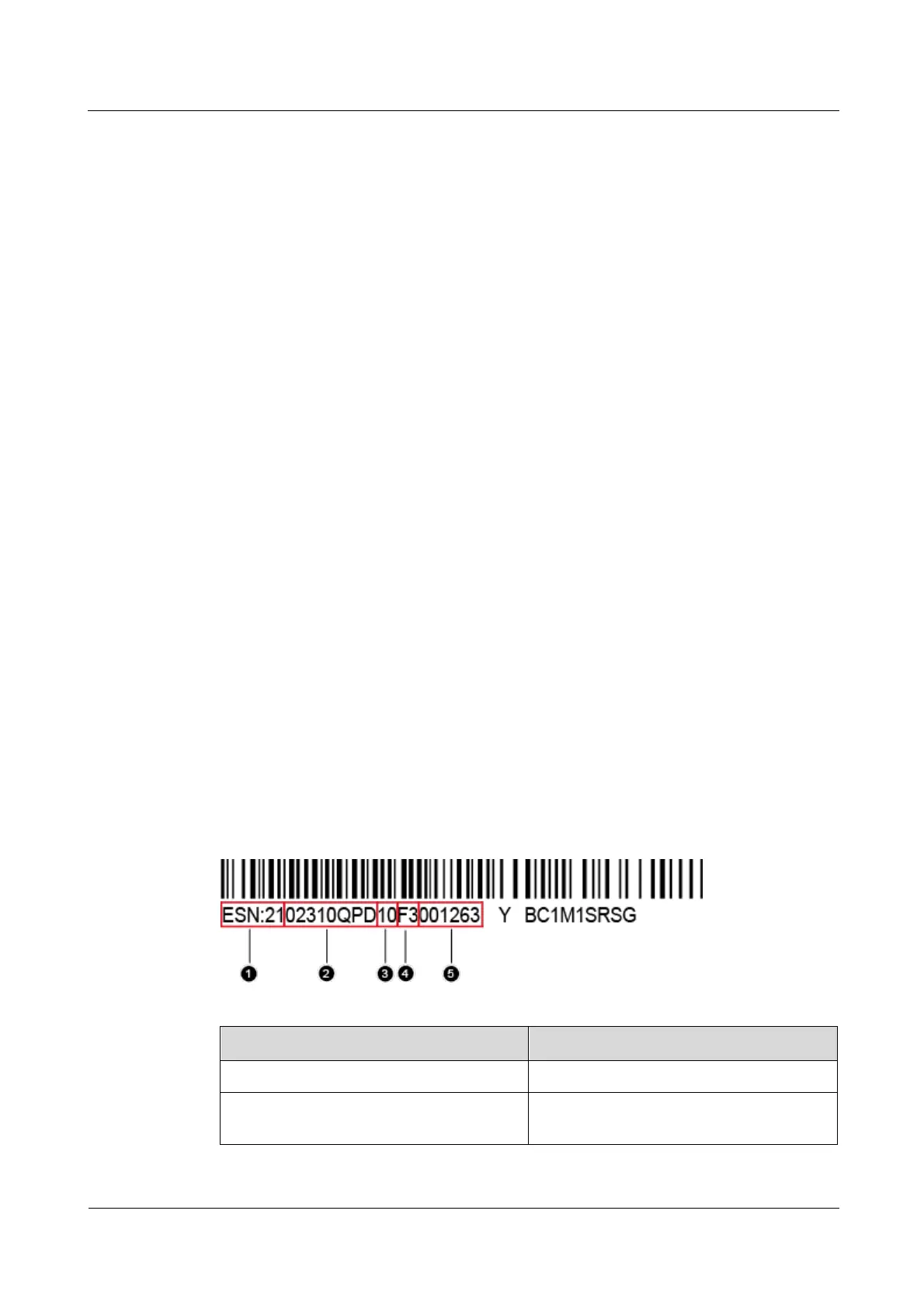

Figure 1-4 shows the ESN format by using the example 2102310QPD10F3001263.
Figure 1-4 ESN example
No.
Description
1
Indicates the ESN ID (two digits).
2
Indicates the material identification code (8
characters).
