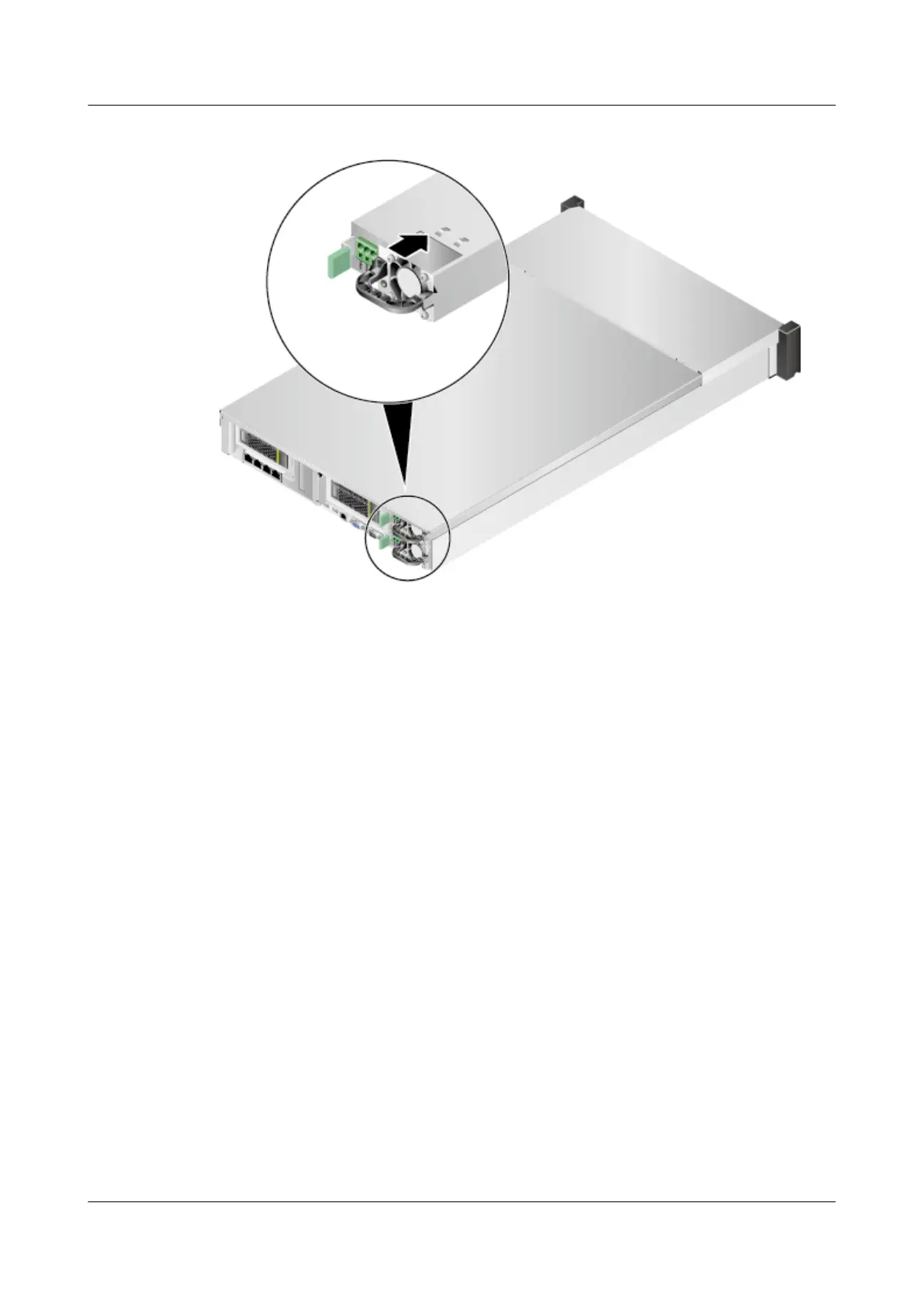

Figure 7-18 Installing a DC PSU
Step 5 Connect the power cable to the wiring terminal on the PSU until the power cables
are latched. See Figure 7-19.
● Connect the OT terminal on the negative power cable to the NEG(-) wiring
terminal on the PSU.
● Connect the OT terminal on the positive power cable to the RTN(+) wiring
terminal on the PSU.
● Connect the OT terminal on the ground cable to the ground terminal on the
PSU.
RH2288H V3 Server
User Guide 7 Replacing Parts
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 164
