2.7.4 Internal Cabling for 12-Drive Conguration
Internal Cabling for 12-Drive Conguration 1
One RAID controller card and four rear drives:

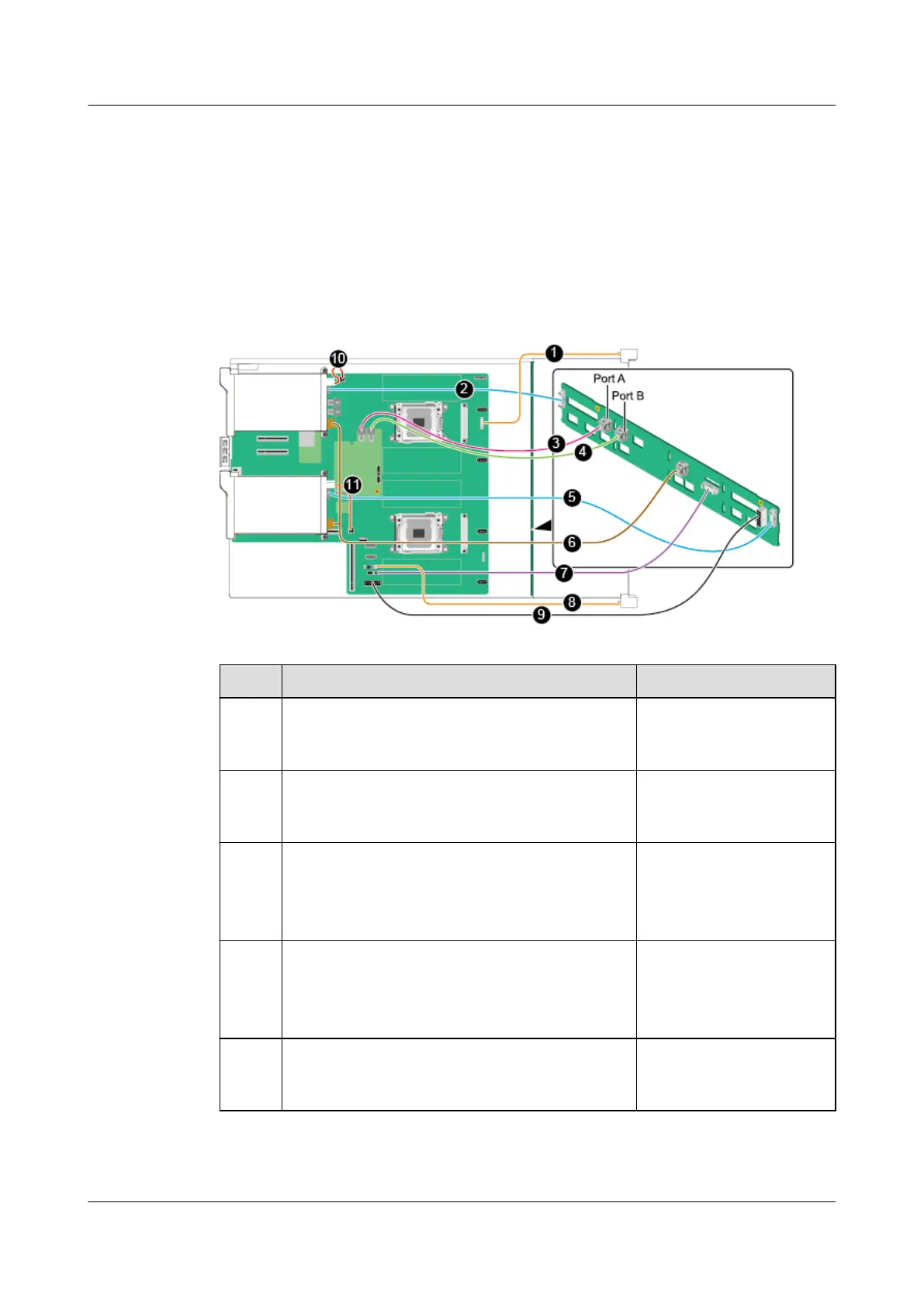

Figure 2-25 Internal cabling for 12-drive conguration 1
No. Description BOM Number
1 Signal cable for connecting the indicator
plate of the right mounting ear to the
mainboard (J43)
04051026
2 Signal cable for connecting the front drive
backplane (J32) to the rear drive backplane
(J24)
04051053
3 SAS cable for connecting Port A (J28) of the
front drive backplane to Port A of the RAID
controller card on the mainboard
04051018 (LSI
SAS3008/3108)
04051022 (LSI
SAS2308/2208)
4 SAS cable for connecting Port B (J29) of the
front drive backplane to Port B of the RAID
controller card on the mainboard
04051018 (LSI
SAS3008/3108)
04051022 (LSI
SAS2308/2208)
5 Signal cable for connecting the front drive
backplane (J35) to the rear drive backplane
(J24)
04051053
