Huawei RH2288H V3 - Internal Cabling for 8-Disk Configuration 2

No
.
Description BOM Number
7 SAS cable for connecting Port A (J28) of the
front disk backplane to Port A of the RAID
controller card on the mainboard
04051021 (LSI
SAS3008/3108)
04051024 (LSI
SAS2308/2208)
8 Signal cable for connecting the USB plate of the
left mounting ear to the mainboard (J42)
04051006
9 Power cable for connecting the front disk
backplane (J24) to the mainboard (J30 PWR
CONN1)
04150997
2.7.3 Internal Cabling for 8-Disk Conguration 2
Internal Cabling for a Server with a Hard Disk Controller Card Integrated
into the PCH Chip

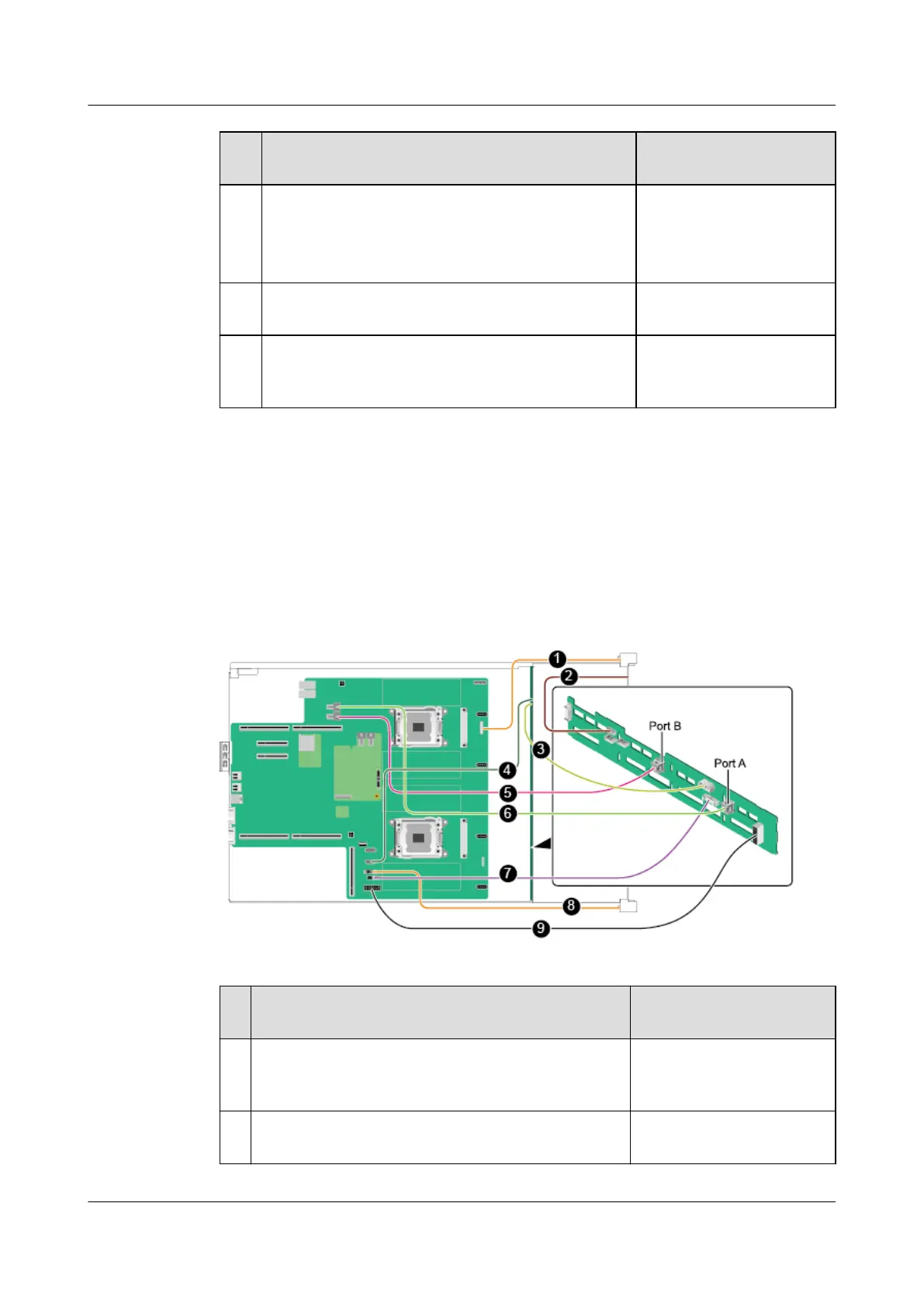

Figure 2-23 Internal cabling for a server with a hard disk controller card
integrated into the PCH chip
N
o.
Description BOM Number
1 Signal cable for connecting the indicator plate
of the right mounting ear to the mainboard
(J43)
04051026
2 Signal cable for connecting the front VGA board
to the front disk backplane (J26)
04051076
RH2288H V3 Server
User Guide 2 Overview
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 43
