PCIe GPU Conguration Guidelines
A GPU must be installed on a PCIe riser module.
● A 2-slot PCIe riser module supports one single-slot or dual-slot PCIe x16 GPU,
which is installed in slot 2 or 7.
● A 3-slot PCIe riser module does not support any GPU.
Equipment Serial Number
An Equipment Serial Number (ESN) is a string that uniquely identies a server. An
ESN is required when you apply for technical support from Huawei.
Figure 2-17 shows the ESN format by using the example
2102310QPD10F3001263.

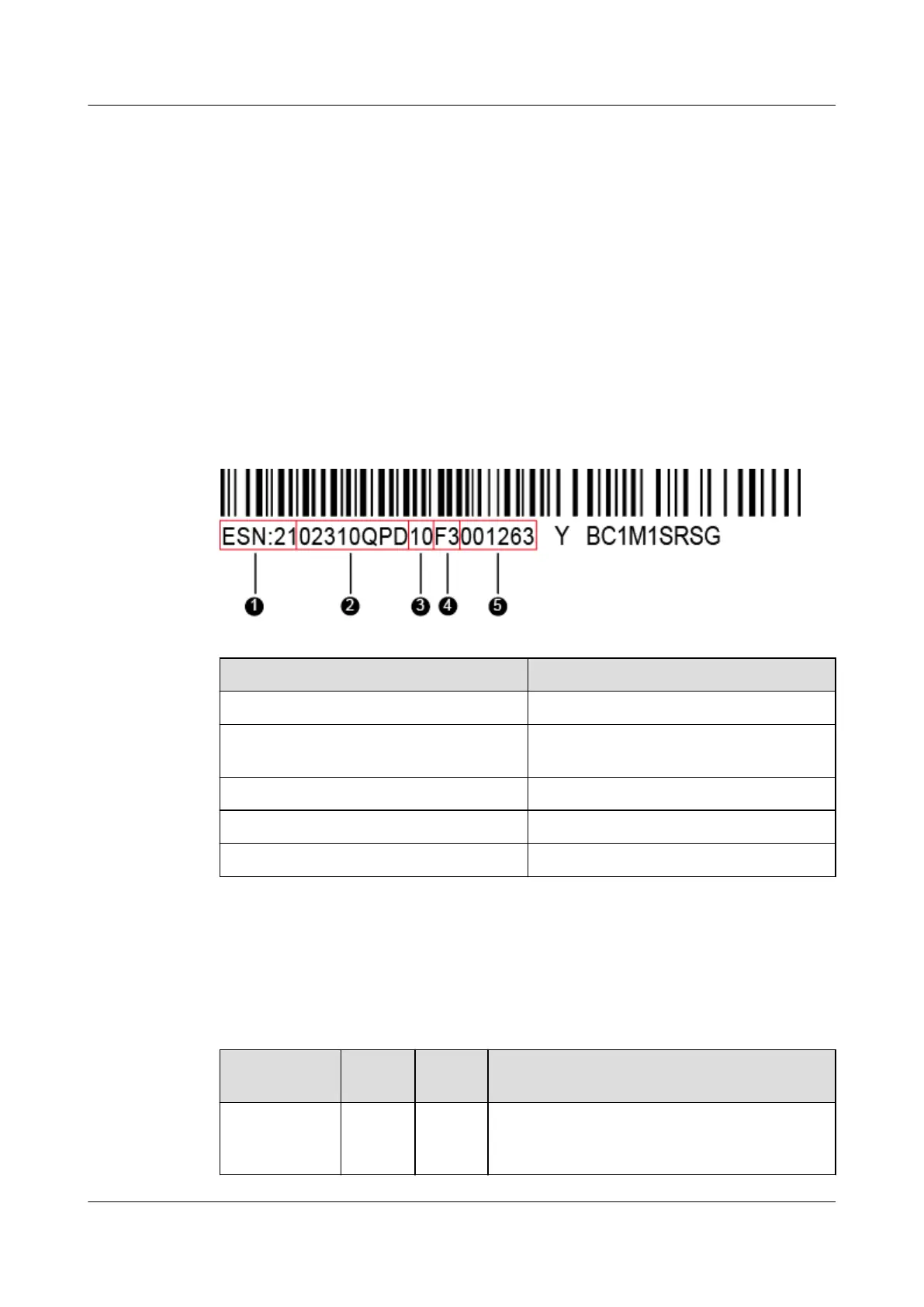

Figure 2-17 ESN example
No. Description
1 ESN ID
2 Material identication code (eight
characters)
3 Vendor code (two characters)
4 Year and month (two characters)
5 Serial number (six characters)
2.3 Ports
Table 2-3 and Table 2-4 describe the external ports on the RH2288H V3.
Table 2-3 Ports on the front panel
Port
Type Quanti
ty
Description
Video
graphics array
(VGA) port
DB15 1 The VGA port is used to connect a terminal,
such as a monitor or keyboard, video, and
mouse (KVM).
RH2288H V3 Server
User Guide 2 Overview
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 19
