2.7.2 Internal Cabling for 8-Disk Conguration 1
Internal Cabling for 8-Disk Conguration 1

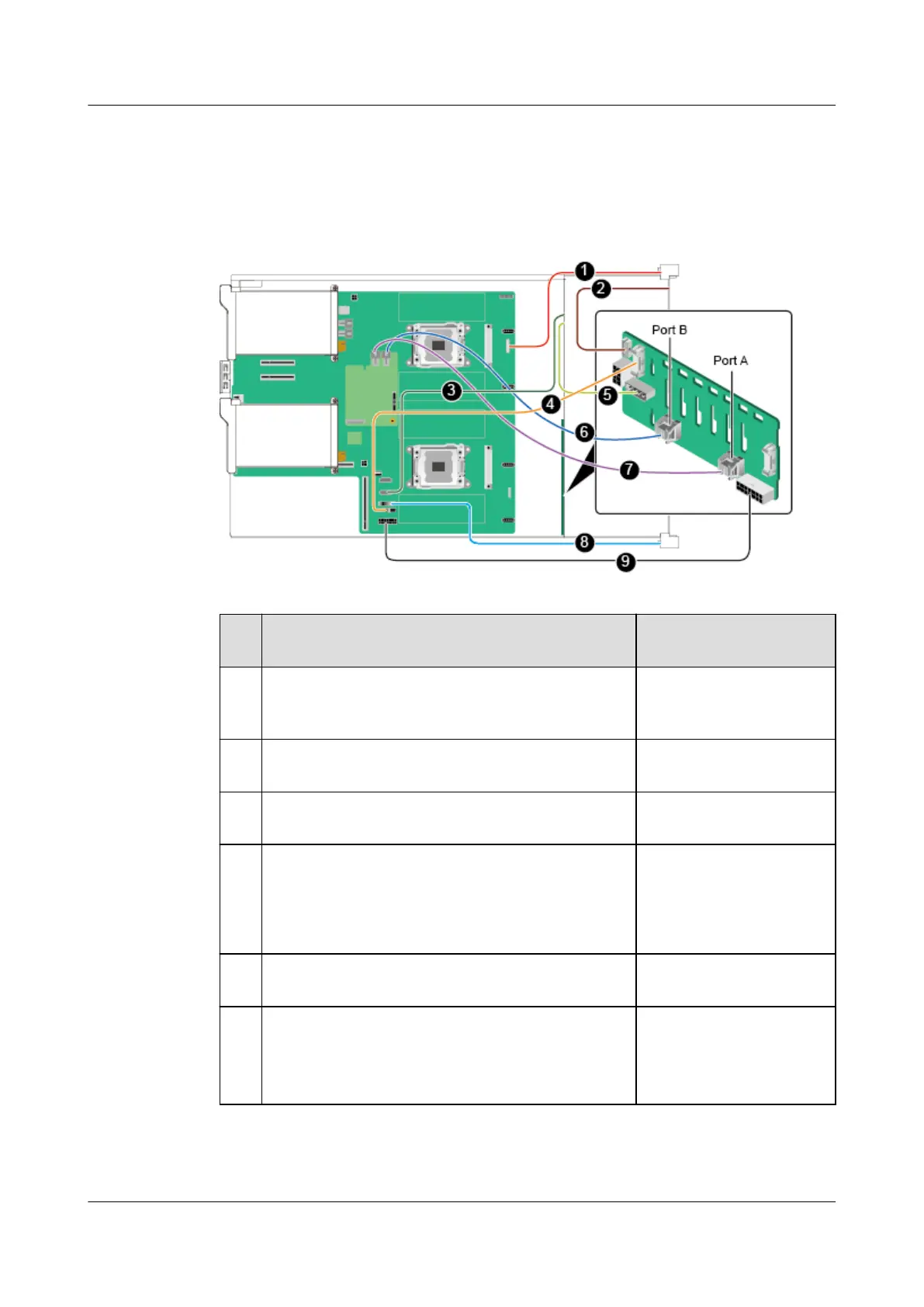

Figure 2-22 Internal cabling for 8-disk conguration 1
No
.
Description BOM Number
1 Signal cable for connecting the indicator plate
of the right mounting ear to the mainboard
(J43)
04051026
2 Signal cable for connecting the front VGA board
to the front disk backplane (J26)
04051076
3 Signal cable for connecting the DVD drive to
the mainboard (J37)
04050689
4 Signal cable for connecting the front disk
backplane (J1) to the mainboard (J1003)
NOTE
Signals from the VGA board to the mainboard are
transmitted through this cable.
04051052
5 Power cable for connecting the DVD drive to
the front disk backplane (J11)
04050689
6 SAS cable for connecting Port B (J29) of the
front disk backplane to Port B of the RAID
controller card on the mainboard
04051021 (LSI
SAS3008/3108)
04051024 (LSI
SAS2308/2208)
