Step 23 Loosen the screw on the mainboard using a Phillips screwdriver. See (1) in Figure
7-97.

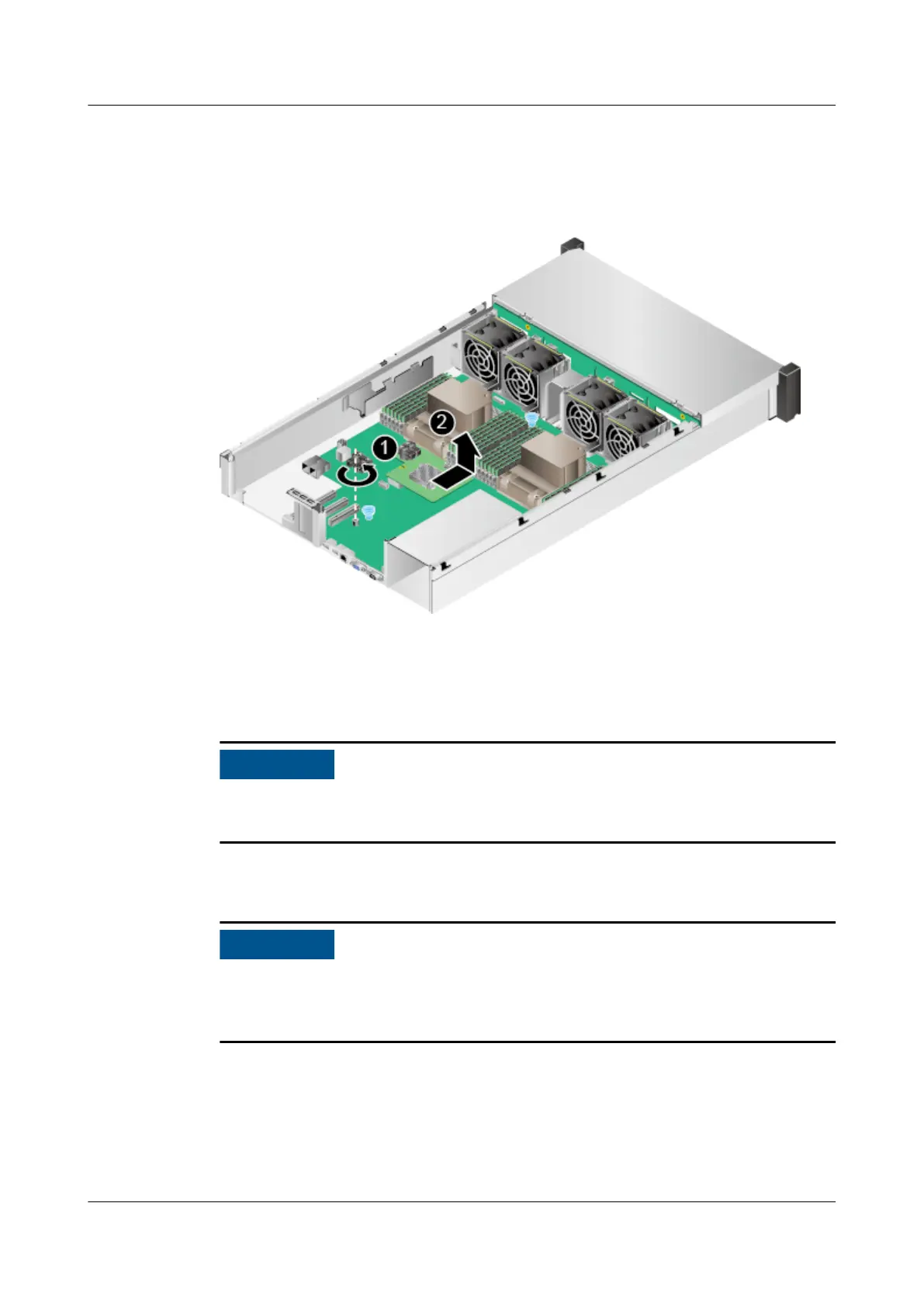

Figure 7-97 Removing the Mainboard
Step 24 Push the mainboard in the arrow direction until it does not move, and lift the
mainboard by holding the handle. See (2) in Figure 7-97.
NO TICE
Do not hold any other protruding part of the mainboard to lift it. Otherwise, the
components on the mainboard may be damaged.
Step 25 Place the removed mainboard in an ESD bag.
NO TICE
Before putting the mainboard into an ESD bag, ensure that the vacant CPU
sockets are populated with protective covers. For details about how to install a
CPU protective cover, see 7.39 Removing a CPU.
----End
7.44 Installing a Mainboard
Install a mainboard to replace the faulty one.
RH2288H V3 Server
User Guide 7 Replacing Parts
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 235

Huawei RH2288H V3 Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v3/v4 series
Memory	Up to 1.5 TB, 24 DDR4 DIMM slots
Storage	Supports up to 12 x 3.5-inch or 25 x 2.5-inch SAS/SATA HDDs/SSDs
RAID Support	RAID 0, 1, 10, 5, 50
Network	2 or 4 x GE ports
Power Supply	2 x hot-swappable PSUs
Management	iBMC (Intelligent Baseboard Management Controller)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
