191

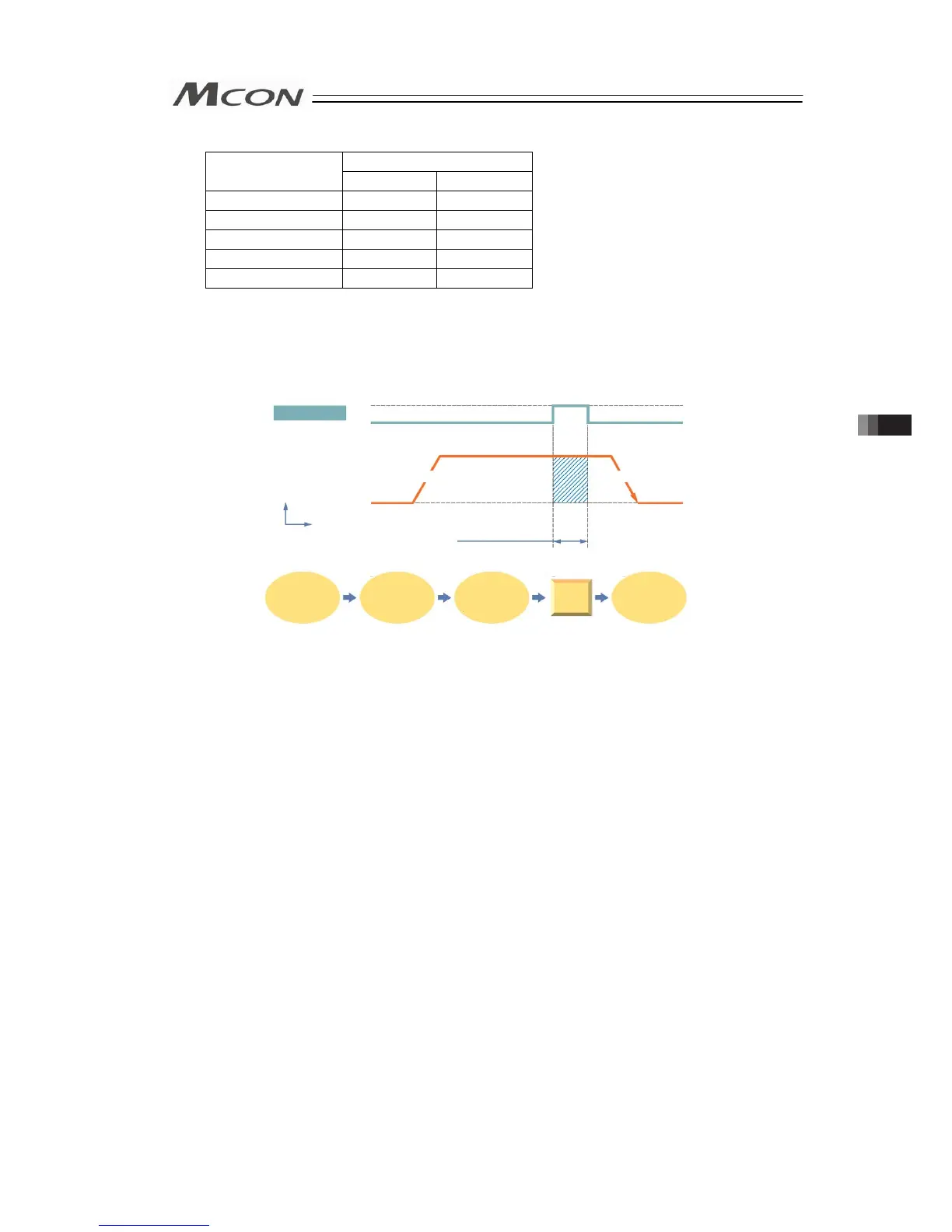

[4] Zone signal and position zone signal (ZONE1, PZONE)
Output
PIO Signal
ZONE1 PZONE
Pattern 0
{
{
(Note2)
Pattern 1
×
{
(Note1)
Pattern 2
×
{
(Note1)
Pattern 4
{
{
(Note2)
Pattern 5
{
{
(Note2)
{ : Available, ×: Unavailable
Note1 PZONE Signal can be changed to ZONE1 Signals by the setting in Parameter
No.149.
Note2 PZONE Signal can be changed to ZONE2 Signals by the setting in Parameter
No.149.
1)
Zone output signal
ON
OFF
Zone signal output setting zone
2) 3)
4) 5)
2) 3)1) 4) 5)
Position 1 input
Start signal
input
(moving start)
Zone signal
turned OFF at
leaving from
setup zone
Zone signal
output at entry
into setup
zone
Moving
comp.
Positioning
completion
signal output
Stop
status
Acceleration
Velocity
Time
Deceleration
This is a function enables to turn a signal on while the actuator is passing a certain position
(in the zone range) or during a stop, in which there are two types.
1) Zone signal (ZONE1) ···················The output signal is turned ON at the position set by
the proper parameter.
2) Position zone signal (PZONE)········The output signal is turned ON at the position set in
the position table.
The feature can play a role as the sensor for judging whether the completion position is
good or not at completion of pressing, setting the continuous operation zone in pitch feed or
interlocking operations of other units in the setting zone.
(1) Zone signal (ZONE)
Set the zone range to the relevant parameter.
1) parameter No. 1 : “Zone Boarder 1 “+” Side”
2) parameter No. 2 : “Zone Boarder 1 “-” Side”
The zone signal ZONE is kept effective also during the emergency stop unless the memory
of the origin is lost due to alarm.
3.8 Control and functions of Input and output signals of Remote I/O Mode
