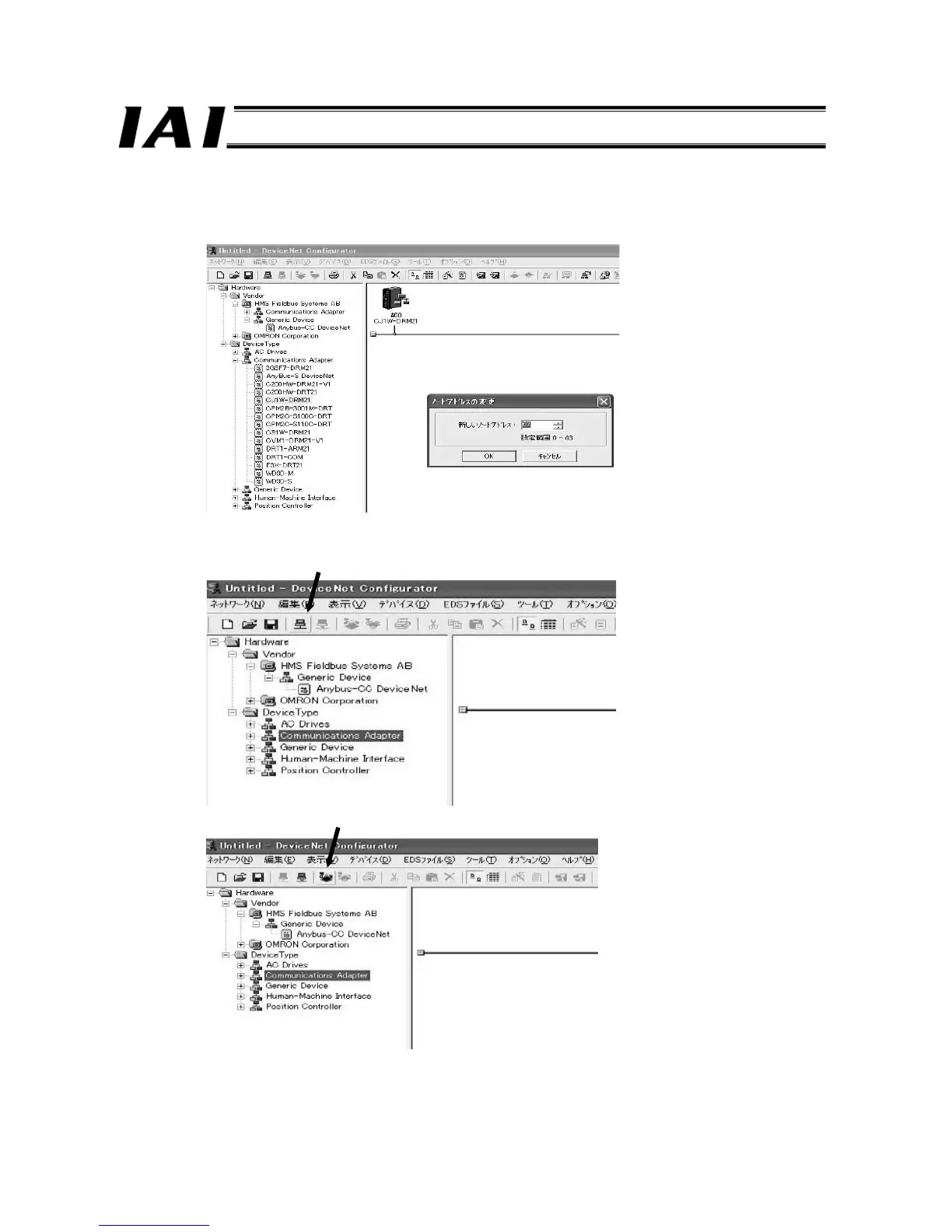

• When the Change Node Address dialog box appears, set “63” (a desired value can be set between 0 and
63).
Normally the master unit is used with its node address set to the maximum value, or 63.
(The master node address has been set to “63” at the factory.)
(b) Automatic recognition
• Select “Communication Adapter” under “Device Type” and click the connection button in the toolbar to
connect to the PLC.
• Click the network upload button in the toolbar.
