Plan Views

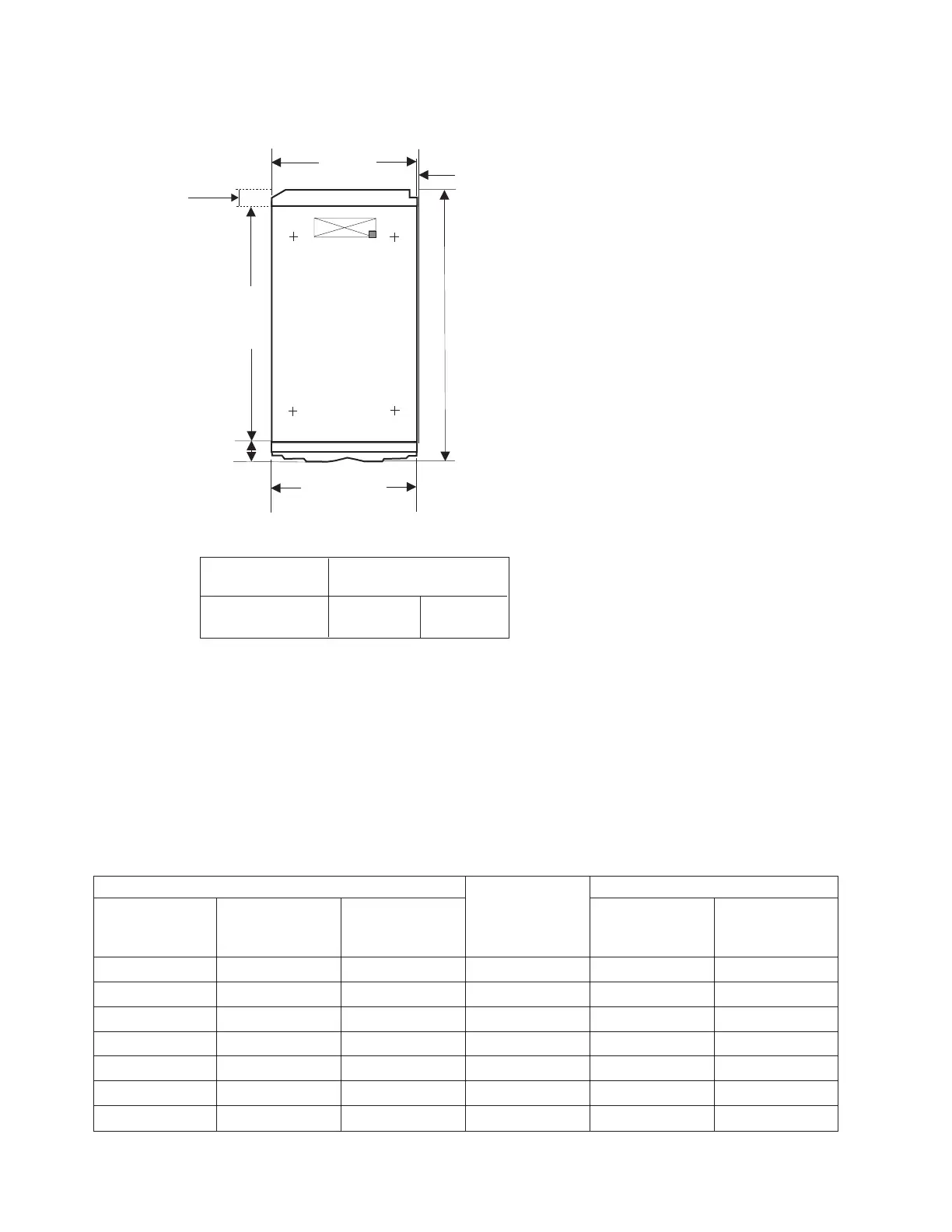

The following illustration shows dimensional planning information for single-frame systems.
FRAME ENTRY/EXIT DIMENSION
(mm) (in.)
REAR 117 by 403 4.6 by 15.9
A
750 mm
(29.5 in.)
1275 mm
(50.2 in.)
1443 mm (56.8 in.)
Slimline Covers
or
1799 mm (70.8 in.)
Acoustical Covers
FRONT
18 mm
(0.7 in.)
58 mm (2.3 in.)
Slimline Rear Cover
or
250 mm (9.8 in.)
Acoustical Rear Cover
785 mm
(30.9)
109 mm (4.3 in.)
Slimline Front Cover
or
250 mm (9.8 in.)
Acoustical Front Cover
Total System Power Consumption
The following table contains the maximum power consumption for the Eserver pSeries 655.
Power consumption values are estimates for nodes and I/O drawer with maximum configurations. Actual
values may vary.
Calculate heat load (Btu per hour) by multiplying the power (in watts) for the configuration by a factor of
3.4.
Note: System configurations limit the maximum number of I/O drawers that are supported.
Configuration
Max. ac Power
(W)
Redundant Power
Nodes I/O Drawers BPR/BPA
With Line Cord
Feature Codes
8688, 8689
With all Other
Line Cord
Feature Codes
1 0 1 1989 Yes Yes
2 0 1 3977 Yes Yes
3 0 1 5966 Yes Yes
4 0 2 7955 Yes Yes
5 0 2 9943 Yes Yes
6 0 3 11932 Yes Yes
7 0 3 13920 Yes Yes
