IBM 7029 6C3 - Service Clearance

Service Clearance

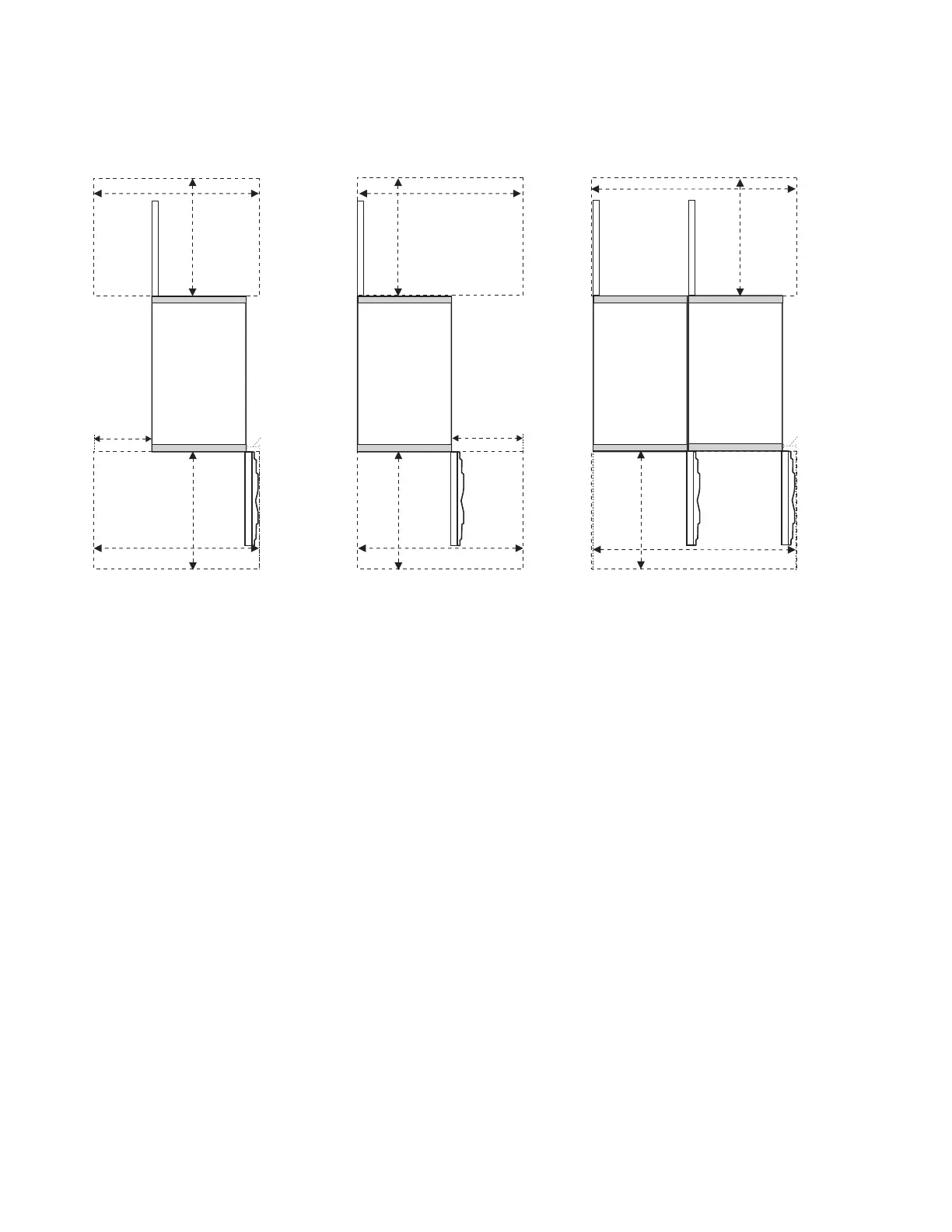

The minimum service clearance for single-frame and double-frame systems with thin doors is shown in the
following illustration.
Single-Frame System
with Slimline Doors
Double-Frame System
with Slimline Doors
d=1143 mm (45.0 in.)
e=914 mm (36.0 in.)
f=1511 mm (59.5 in.)
f (alternate)=1577 mm (62.1 in.)
g=1640 mm (64.6 in.)
e
d
g
g
2.6 in.
(66 mm)
AB
e
d
f
26 in.
(660 mm)
2.6 in.
(66 mm)
f
A
e
d
f (alternate)
28.6 in.
(726 mm)
f (alternate)
A
Single-Frame System
with Slimline Doors
(with alternative right-side
service clearance)
194 Site and Hardware Planning Information
