S85 Rack Caster Location

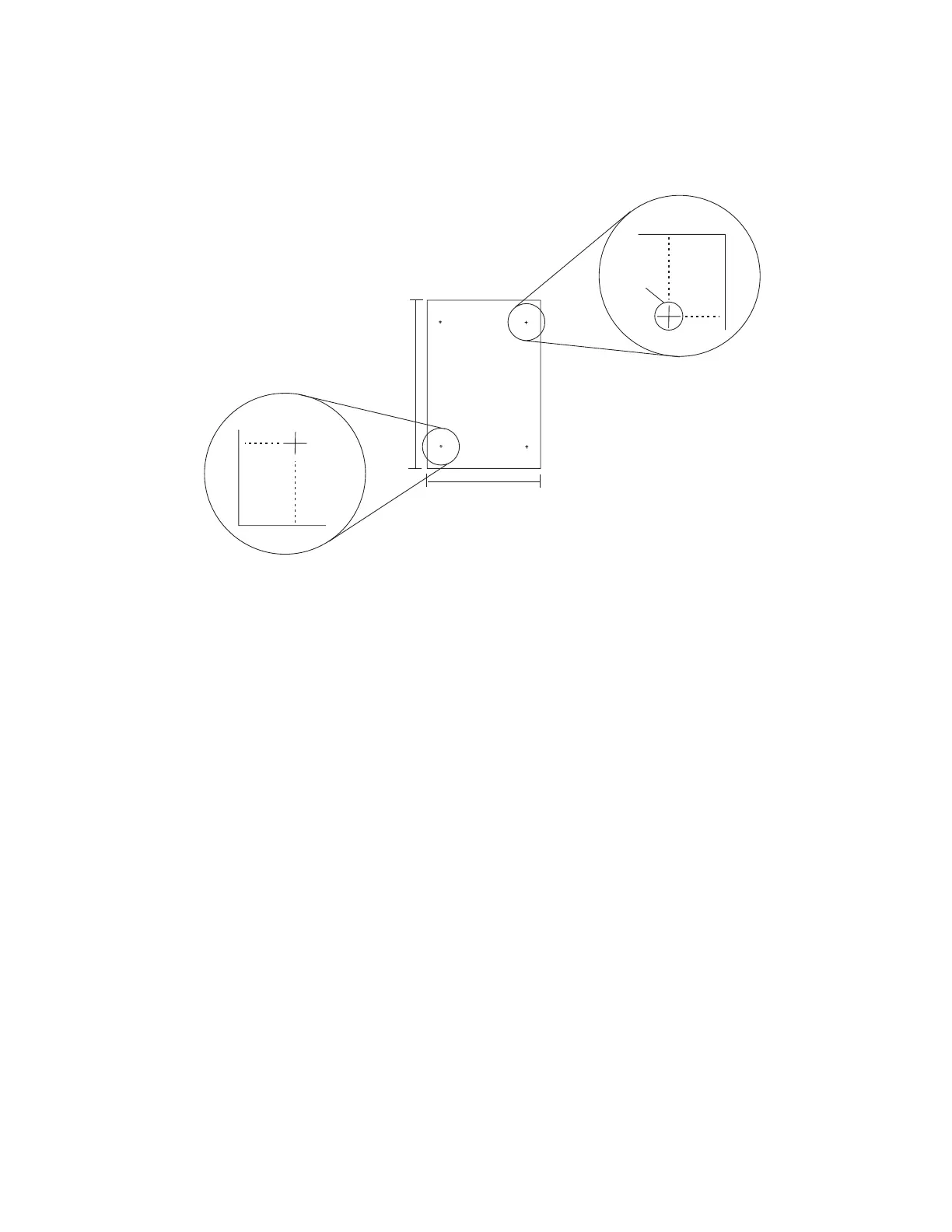

The following figure shows the caster locations for the S85 rack. For complete specifications on the S85
system rack, see “7017 Model S85” on page 49.
567 mm (22.3 in.)
1041 mm
(40.9 in.)
Front
Front Caster Location
Note: Rear
Swivel Caster
Contacts Floor
21 mm (0.8 in.)
Radius From
Center Point
2X
(4.2)106
(2.5)
64
See
Note
2X
(4.4)112
(2.5)
64
