Dual Power Installation
The Eserver pSeries 670 is designed with a fully redundant power system. Each system has two line
cords attached to two power input ports which, in turn, power a fully redundant power distribution system
within the system. To take full advantage of the redundancy/reliability that is built into the computer
system, the system must be powered from two distribution panels. The possible power installation
configurations are described as follows.

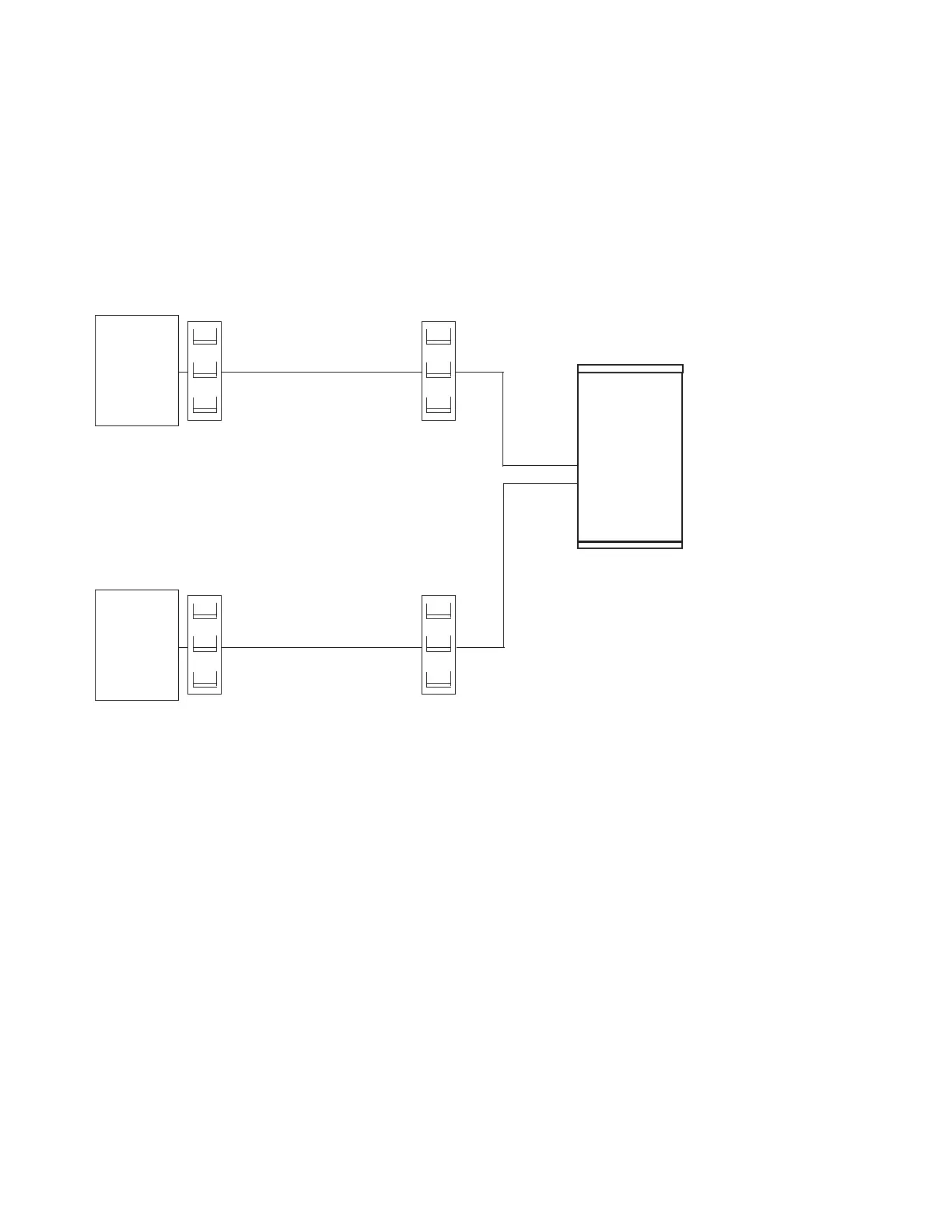

Dual Power Installation - Redundant Distribution Panel and Switch: This configuration requires that
the system receives power from two separate power distribution panels. Each distribution panel receives
power from a separate piece of building switch gear. This level of redundancy is not available in most
facilities.
System
Switch Gear
Distribution
Panel
Switch Gear
Distribution
Panel
