c. Turn the rack-mounting bolts (item 6 in illustration on page 149) three or four rotations into the
tapped holes.

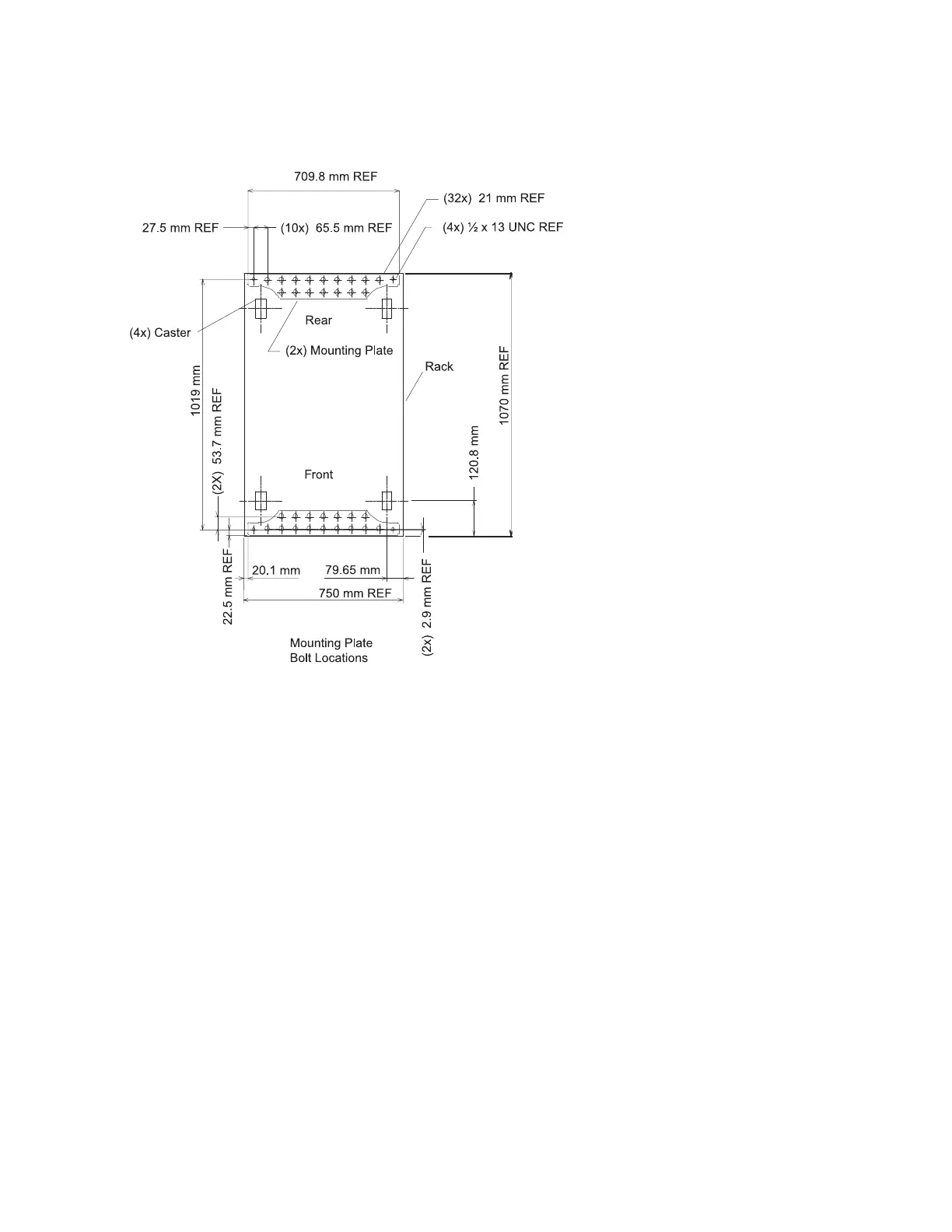

4. Mark the floor around the edge of the mounting plates, as shown in the following illustration:
5. Remove the mounting bolts from the threaded holes.
6. Move the rack away from the mounting plates.
7. Mark the floor at the center of each hole in the mounting plate (including tapped holes).
8. Remove the mounting plates from the marked locations.
9. At the marked location of the tapped mounting holes, drill two holes approximately 1 inch to allow
clearance for the ends of the two rack-mounting bolts. The ends of the rack-mounting bolts may
protrude past the thickness of the mounting plate. Drill one hole in each group of anchor bolt location
marks as indicated on the marked floor.
10. Using at least three bolts for each mounting plate, mount the mounting plates to the concrete floor.
Attention: It is the service representative’s responsibility to complete the following steps.
1. Reposition the system rack over the mounting plates.
2. Place the four rack-mounting bolts through the plate assemblies with the D-washer positioned so that
the straight side of the washer is facing inward toward the system rack.
3. Place the isolator bushing (item 4 in illustration on page 149) inside the leveling foot with a washer
between the isolator bushing and the floor plate.
4. Turn the rack-mounting bolts three or four rotations into the tapped holes.
5. Turn the leveling foot of the plate assembly down until it contacts the mounting plate, and then level
the rack using the four leveling feet.
6. Lock the leveling feet by tightening the lock nut.
7. Tighten the four rack-mounting bolts into the mounting plates.
