Plan Views

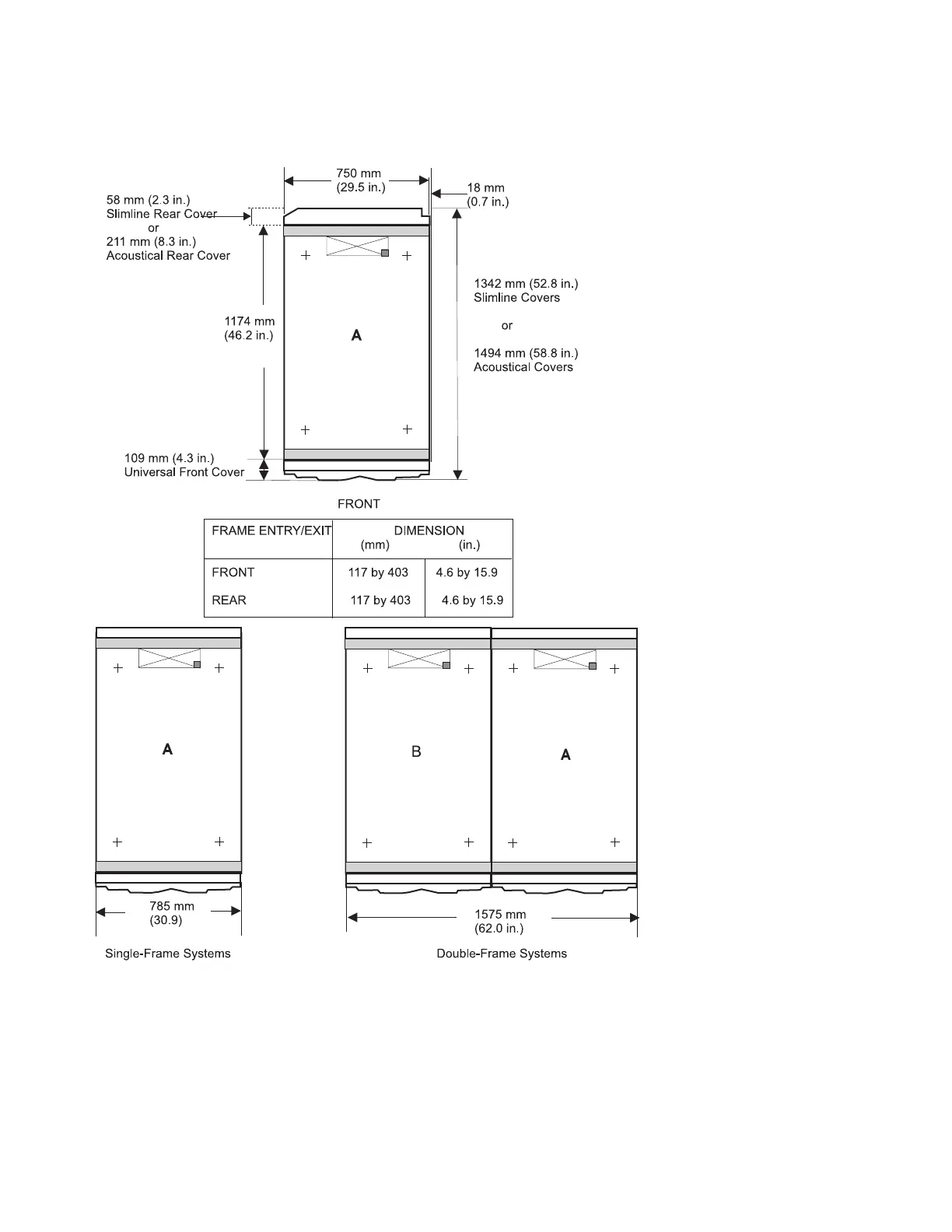

The following illustration shows dimensional planning information for single-frame systems and

double-frame systems.

176 Site and Hardware Planning Information
