Rack Configuration (-48v DC Systems)
Note: Rack units are large and heavy, and they are not easily moved. Because maintenance activities
require access at both the front and back, extra room must be allowed. The footprint shows the

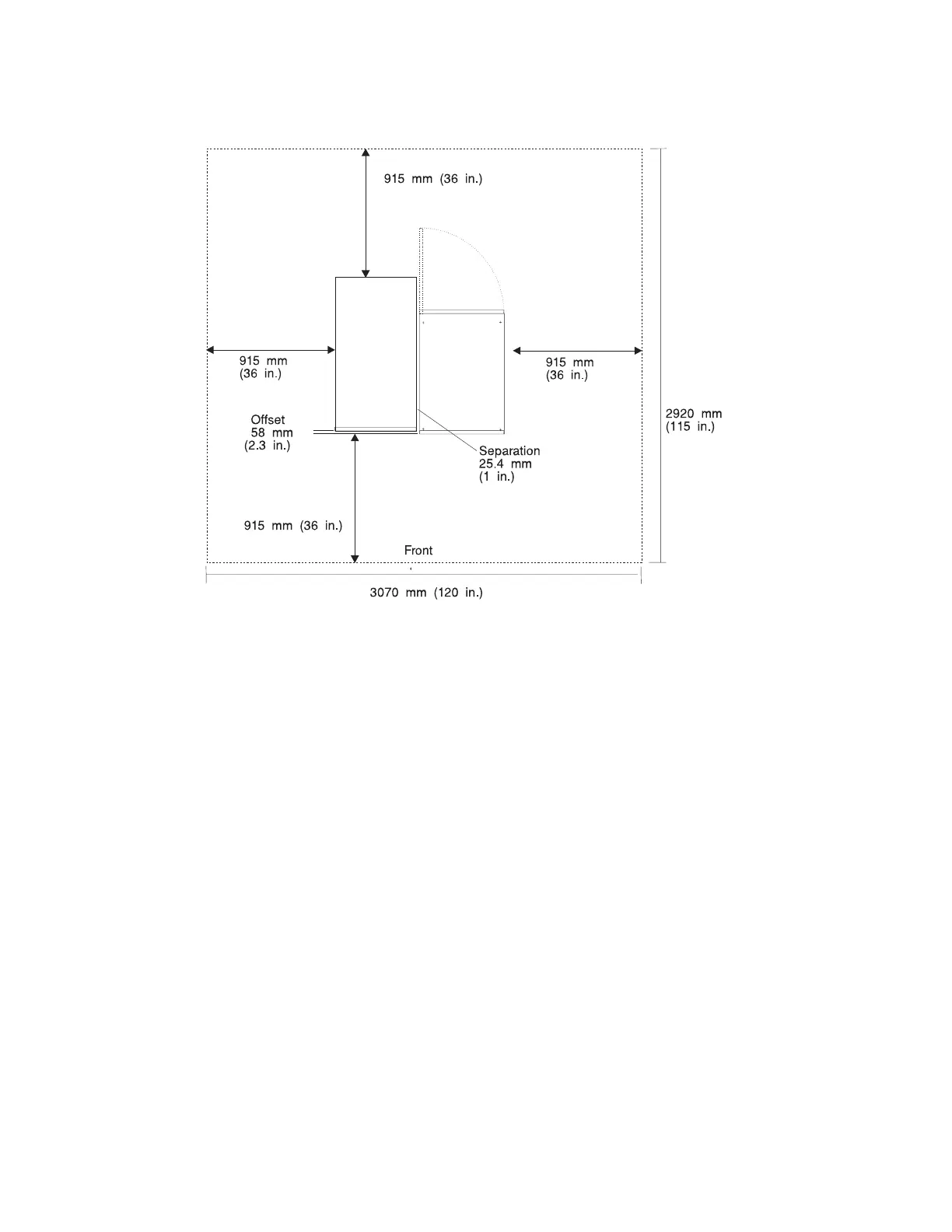

radius of the swinging doors on the I/O rack. The illustration shows the minimum space required.
56 Site and Hardware Planning Information
