IBM System/360 20 User Manual

r-- ~ --.- ,
I I Halt code 1 1
1 Master Slave 1 ESTR Restart Procedure I Cause I
r--- +1----- + I
I
X X 1 0011 Press START to discontinue 1 End of program 1
1 1 lithe jo b I 1
J-----+----+_----t--.----- 1 ~
J X I I 0025 I Press START to discontinue 1 Improper ID-ACK received 1
1 1 lithe job via HPR0011 1 for WRITE CONNECT 1
J-----+_ +1-----+-1 ------- -+- I
I X 1 X I 0040 1 Press START to discontinue 1 ABORT RCVD I
I I I I the job via HPR0011 I (error-free) I
}-- I I J + I
1 X I X I 0041 I Press START to discontinue 1 ABORT SENT/RCVD and I
I I lIthe job via HPR0011 I macro in error (second- 1
I 1 1 1 1 level abort) 1
I- 1 +-- 1 1 --J
I X I X 1 0043 1 Press START to discontinue 1 Abort during ending macro 1
1 1 lithe job via HPR0011 I 1
r--- +_-----+_-----+ 1 --1
I XII OOAB 1 Press START to discontinue I Unexpected outcome during 1
1
1 lithe job via HPR0011 1 execution of Master Program*1
I-----+_ -I I -t- ----t
I I X I OOFF 1 Press START to discontinue I Unexpected outcome during I
I I lithe job via HPR0011 1 execution of Slave Program**1
.. ______ --i-- ___ ~_~------L---------------------.--------~I------------ ---1
J
I
J
1
1
J
1
L
* One of the following error messages will be printed:
"BSCA ERROR - NCODE xx,
LOG"
"BSCA ERROR - SENSE xx"
"BSCA ERROR - NCODE xx UNEXP"
"BSCA ERROR - NCODE xx ITB 7"
(gives normal code setting and logical error byte
setting)
(gives sense byte setting)
(gives normal code setting)
(gives normal code setting after seven re-
transmission tries)
** One of the following error messages will be printed:
"BSCA ERROR - COMPL xx LOG xx" (gives completion code and logical error byte
set ti ng)
"ESCA ERROR _. SENSE xx" (gives sense byte setting)
"BSCA ERROR - COMPL xx"
"BSCA ERROR - COMPL xx ITB 7"
"BSCA ERROR - RECORD COUNT"
(gives completion code)
(gives completion code setting after seven requests
for receiving an error-free block have faile~
(expected record count not equal to received
record count)

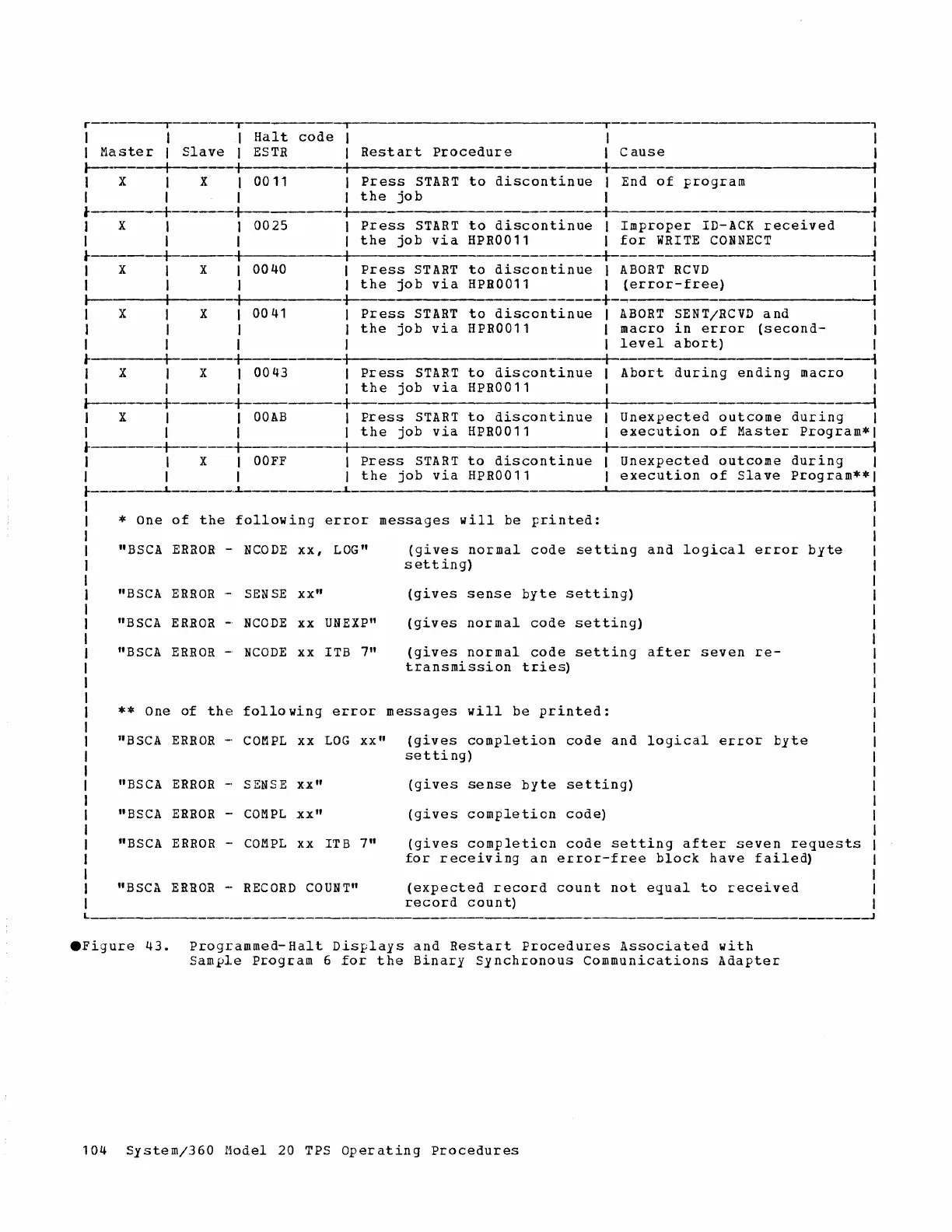

.Figure 43. Programmed-Halt Displays and Restart Procedures Associated with
Sample Program 6 for the Binary synchronous Communications Adapter
104 S1 stem/360 Hodel 20 TPS Oper ating Procedures
