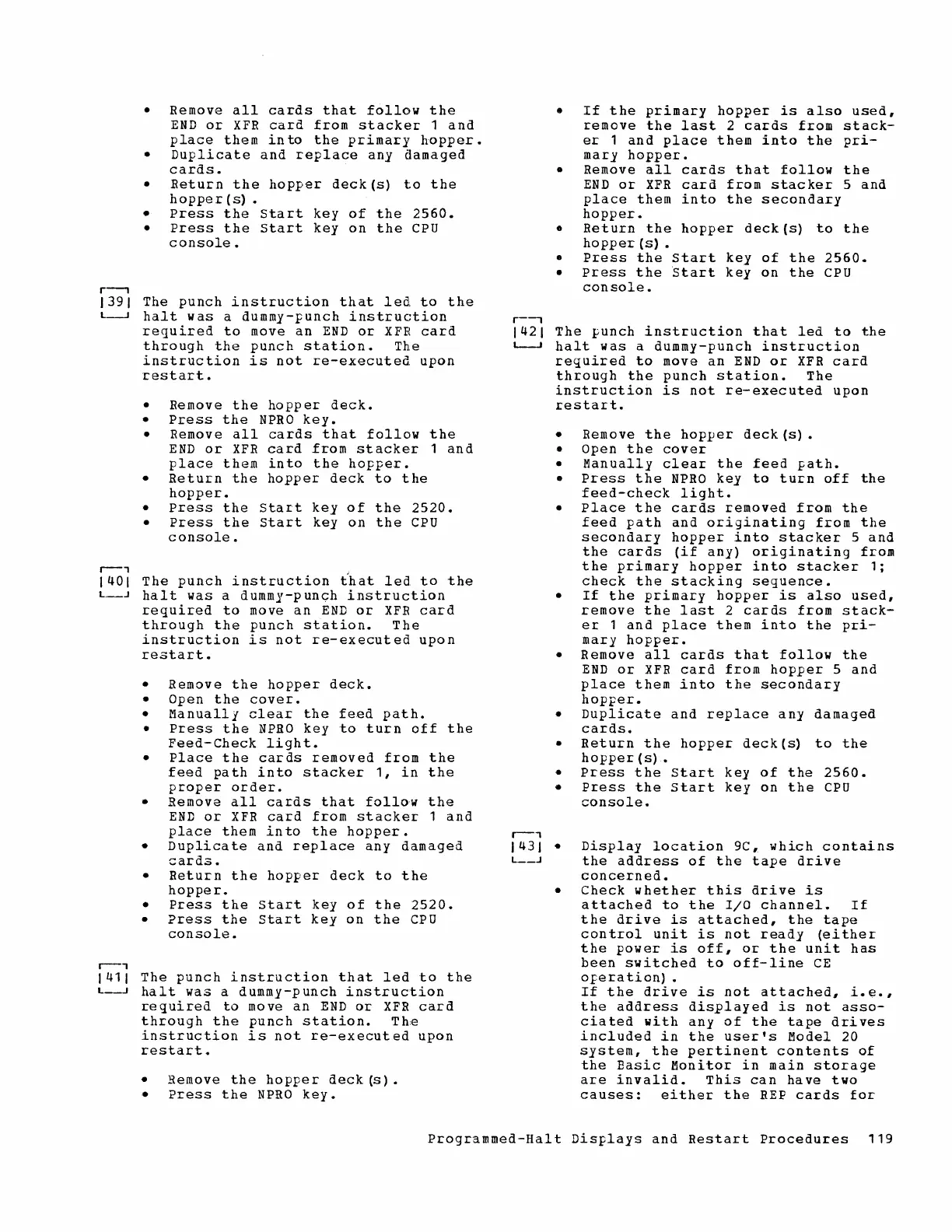

r--,
Remove
all
cards
that
follow
the
END
or
XFR
card
from
stacker
1
and
place
them
in
to
the
primary
hopper.
Duplicate
and
replace
any
damaged
cards.
Return
the
hopper
deck{s)
to
the
hopper
(s)
Press
the
start
key
of
the
2560.
Press
the
Start
key
on
the
CPU
console.
)39)
The
punch
instruction
that
led
to
the
L--.J
halt
was
a
dummy-punch
instruction
required
to
move
an
END
or
XFR
card
through
the
punch
station.
The
instruction
is
not
re-executed
upon
restart.
Remove
the
hopper
deck.
Press
the
NPRO
key.
Remove
all
cards
that
follow
the
END
or
XFR
card
from
stacker
1
and
place
them
into
the
hopper.
Return
the
hopper
deck
to
the
hopper.
Press
the
start
key
of
the
2520.
Press
the
Start
key
on
the
CPU
console.
.---,
1401
The
punch
instruction
t'hat
led
to
the
L
__
J
halt
was
a
dummy-pun~h
instruction
.---,
required
to
move
an
END
or
XFR
card
through
the
punch
station.
The
instruction
is
not
re-executed
upon
restart.
Remove
the
hopper
deck.
Open
the
cover.
Manuallj
clear
the
feed
path.
Press
the
NPRO
key
to
turn
off
the
Feed-Check
light.
Place
the
cards
removed
from
the
feed
path
into
stacker
1,
in
the
proper
order.
Remove
all
cards
that
follov
the
END
or
XFR
card
from
stacker
1
and
place
them
into
the
hopper.
Duplicate
and
replace
any
damaged
:::ard.5.
Return
the
hopper
deck
to
the
hoppe
r.
Press
the
start
key
of
the
2520.
Press
the
Start
key
on
the
CPU
console.
1411
The
punch
instruction
that
led
to
the
L--.J
halt
was
a
dummy-punch
instruction
required
to
move
an
END
or
XFR
card
through
the
punch
station.
The
instruction
is
not
re-executed
upon
restart.
Remove
the
hopper
deck~).
Press
the
NPRO
key.
r--,
If
the
primary
hopper
is
also
used,
remove
the
last
2
cards
from
stack-
er
1
and
place
them
into
the
pri-
mary
hopper.
Remove
all
cards
that
follow
the
END
or
XFR
card
from
stacker
5
and
place
them
into
the
secondary
hopper.
Return
the
hopper
deck(s)
to
the
hopper
(s)
Press
the
start
key
of
the
2560.
Press
the
Start
key
on
the
CPU
console.
1421
The
punch
instruction
that
led
to
the
L--J
halt
was
a
dummy-punch
instruction
.---,
required
to
move
an
END
or
XFR
card
through
the
punch
station.
The
instruction
is
not
re-executed
upon
restart.
Remove
the
hopper
deck(s).
Open
the
cover
Manually
clear
the
feed
path.
Press
the
NPRO
key
to
turn
off
the
feed-check
light.
Place
the
cards
removed
from
the
feed
path
and
originating
from
the
secondary
hopper
into
stacker
5
and
the
cards
(if
any)
originating
from
the
primary
hopper
into
stacker
1;
check
the
stacking
sequence.
If
the
primary
hopper
is
also
used,
remove
the
last
2
cards
from
stack-
er
1
and
place
them
into
the
pri-
mary
hopper.
Remove
all
cards
that
follow
the
END
or
XFR
card
from
hopper
5
and
place
them
into
the
secondary
hopper.
Duplicate
and
replace
any
damaged
cards.
Return
the
hopper
deck
(s)
to
the
hopper{s)
Press
the
start
key
of
the
2560.
Press
the
start
key
on
the
CPU
:::onsole.
143).
Display
location
9C,
which
contains
L-_J
the
address
of
the
tape
drive
concerned.
Check
whether
this
drive
is
attached
to
the
I/O
channel.
If
the
drive
is
attached,
the
tape
control
unit
is
not
ready
(either
the
power
is
off,
or
the
unit
has
been
switched
to
off-line
CE
operation)
If
the
drive
is
not
attached,
i.e.,
the
address
displayed
is
not
asso-
ciated
with
any
of
the
tape
drives
included
in
the
user's
Model
20
system,
the
pertinent
contents
of
the
Easic
Monitor
in
main
storage
are
invalid.
This
can
have
two
causes:
either
the
REP
cards
for
Programmed-Halt
Displays
and
Restart
Procedures
119
