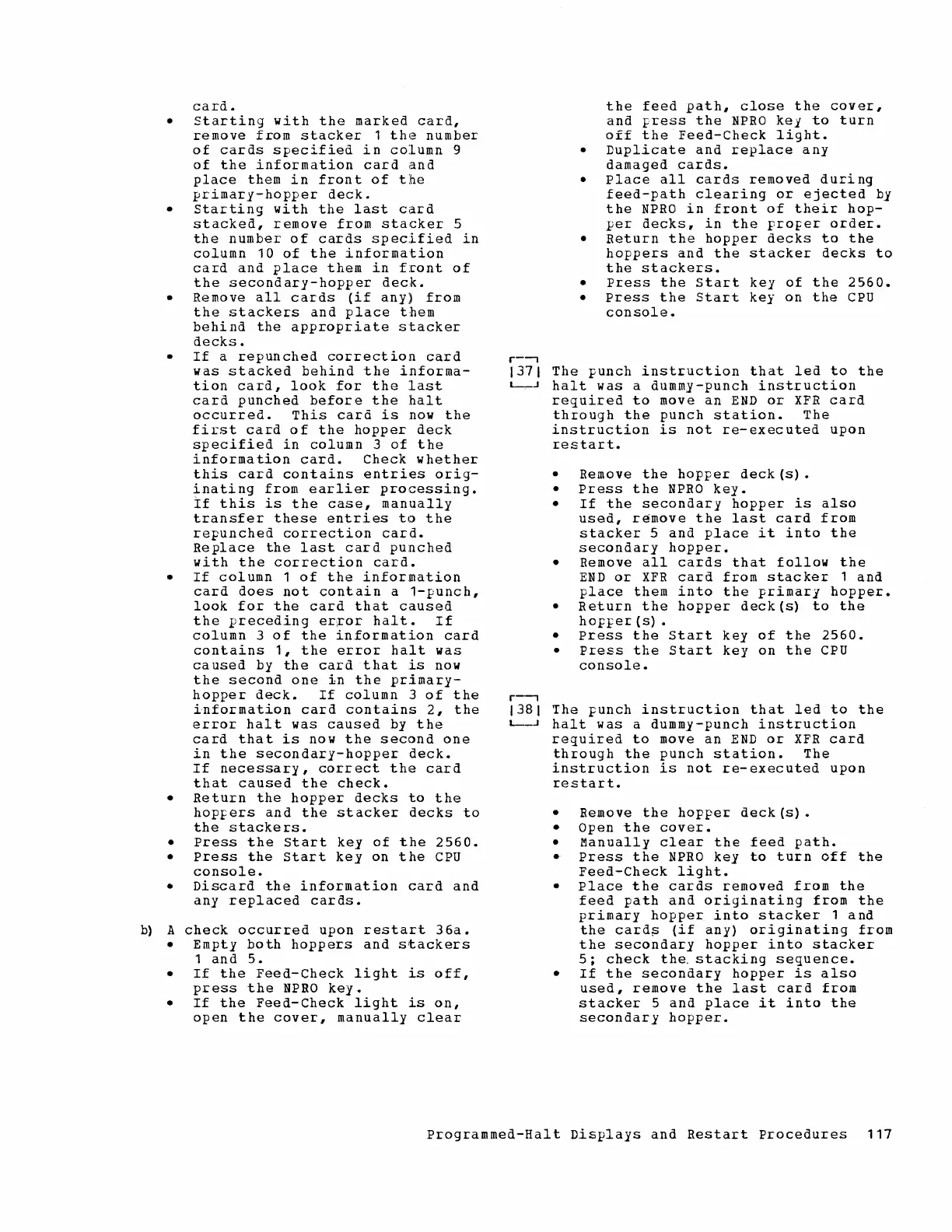

card.
• Starting with the marked card,
remove from stacker 1 the number
of cards specified in column 9
of the information card and
place them in front of the
primary-hopper deck.
• Starting with the last card
stacked, remove from stacker 5
the number of cards specified in
column 10 of the information
card and place them in front of
the secondary-hopper deck.
• Remove all cards (if any) from
the stackers and place them
behind the appropriate stacker
decks.
• If a repunched correction card
was stacked behind the informa-
tion card, look for the last
card punched before the halt
occurred. This carn is now the
first card of the hopper deck
specified in column 3 of the
information card. Check whether
this card contains entries orig-
inating from earlier processing.
If this is the case, manually
transfer these entries to the
repunched correction card.
Replace the last card punched
with the correction card.
• If column 1 of the information
card does not contain a 1-punch,
look for the card that caused
the preceding er~or halt. If
column 3 of the information card
contains 1, the error halt was
caused by the card that is now
the second one in the primary-
hopper deck. If column 3 of the
information card contains 2, the
error halt was caused by the
card that is now the second one
in the secondary-hopper deck.
If necessary, correct the card
that caused the check.
• Return the hopper decks to the
hOPFers and the stacker decks to
the stackers.
• Press the start key of the 2560.
• Press the start key on the CPU
console.
• Discard the information card and
any replaced cards.
~ A check occurred upon restart 36a.
• Empty both hoppers and stackers
1 and 5.
• If the Feed-Check light is off,
press the NPRO key.
• If the Feed-Check light is on,
open the cover, manually clear
r---,
the feed path, close the cover,
and fress the NPRO kel to turn
off the Feed-Check light.
• Duplicate and replace any
damaged cards.
• Place all cards removed during
feed-path clearing or ejected by
the NPRO in front of their hop-
per decks, in the profer order.
• Return the hopper decks to the
hoppers and the stacker decks to
the stackers.
• Press the start key of the 2560.
• Press the Start key on the CPU
console.
1371 The punch instruction that led to the
L--~ halt was a dummy-punch instruction
r-,
required to move an END or XFR card
through the punch station. The
instruction is not re-executed upon
restart.
• Remove the hopper deck(s).
• Press the NPRO key.
• If the secondary hopper is also
used, remove the last card from
stacker 5 and place it into the
secondary hopper.
• Remove all cards that follow the
END or XFR card from stacker 1 and
place them into the primary hopper.
• Return the hopper deck(s) to the
hOffer (s) •
•
Press the start key of the 2560.
• Press the Start key on the CPU
console.
1381 The Funch instruction that led to the
L--J halt was a dummy-punch instruction
required to move an END or XFR card
through the punch station. The
instruction is not re-executed upon
restart.
• Remove the hopper deck(s).
• Open the cover.
• Manually clear the feed path.
• Press the NPRO key to turn off the
Feed-Check light.
• Place the cards removed from the
feed path and originating from the
primary hopper into stacker 1 and
the card~ (if any) originating from
the secondary hopper into stacker
5; check the. stacking sequence.
• If the secondary hopper is also
used, remove the last card from
stacker 5 and place it into the
secondary hopper.
Programmed-Halt Displays and Restart Procedures 117
