IDEC SmartRelay functions
IDEC SmartRelay Manual 199
Example: Tick Message Character by Character

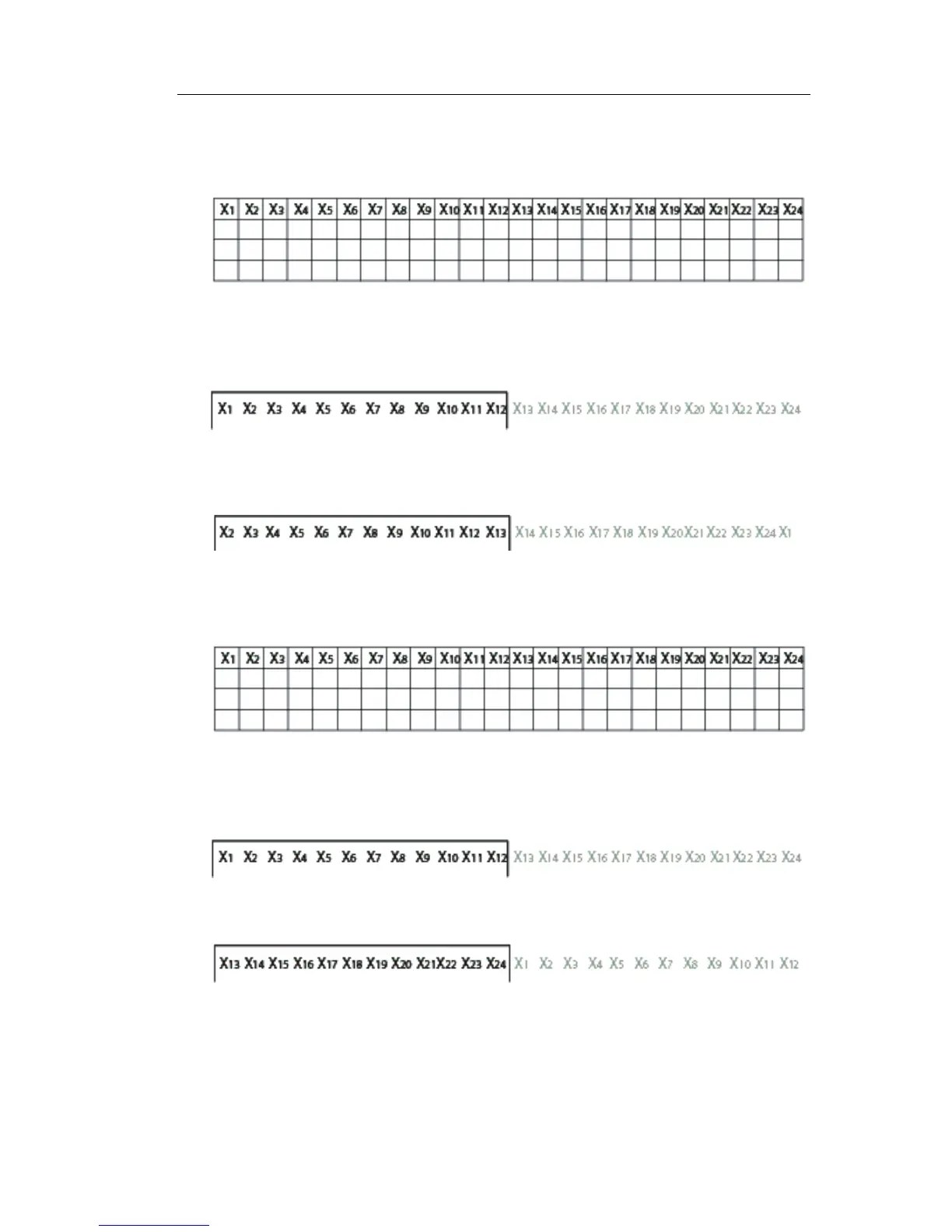

The following illustration shows a one-line, 24-character
message text:
If you set this message to tick ”character by character” with
a tick interval of 0.1 seconds, then the initial appearance of
this message line on the IDEC SmartRelay Display or Text
Display is as shown in this illustration:
After 0.1 second, one character of the message line ticks.
The message appears as follows on the IDEC SmartRelay
Display or Text Display:
Example: Tick Message Line by Line
The following example uses the same message
configurat
ion as the previous example:
If you set this message to tick ”line by line” with a tick interval
of 0.1 seconds, then the initial appearance of this message
on the IDEC SmartRelay Display or Text Display is the left
half of the message as shown in this illustration:
After 1 second (10 x 0.1 second), the message ticks to show
the right half of the message as shown in this illustration:
The screen display alternates between the two message
halves every second.
You can configure each individual line of a message text to
tick or
not tick. The ”character by character” or ”line by line”
setting applies to all lines that you configure to tick.
