IDEC SmartRelay installation and wiring

40 IDEC SmartRelay Manual

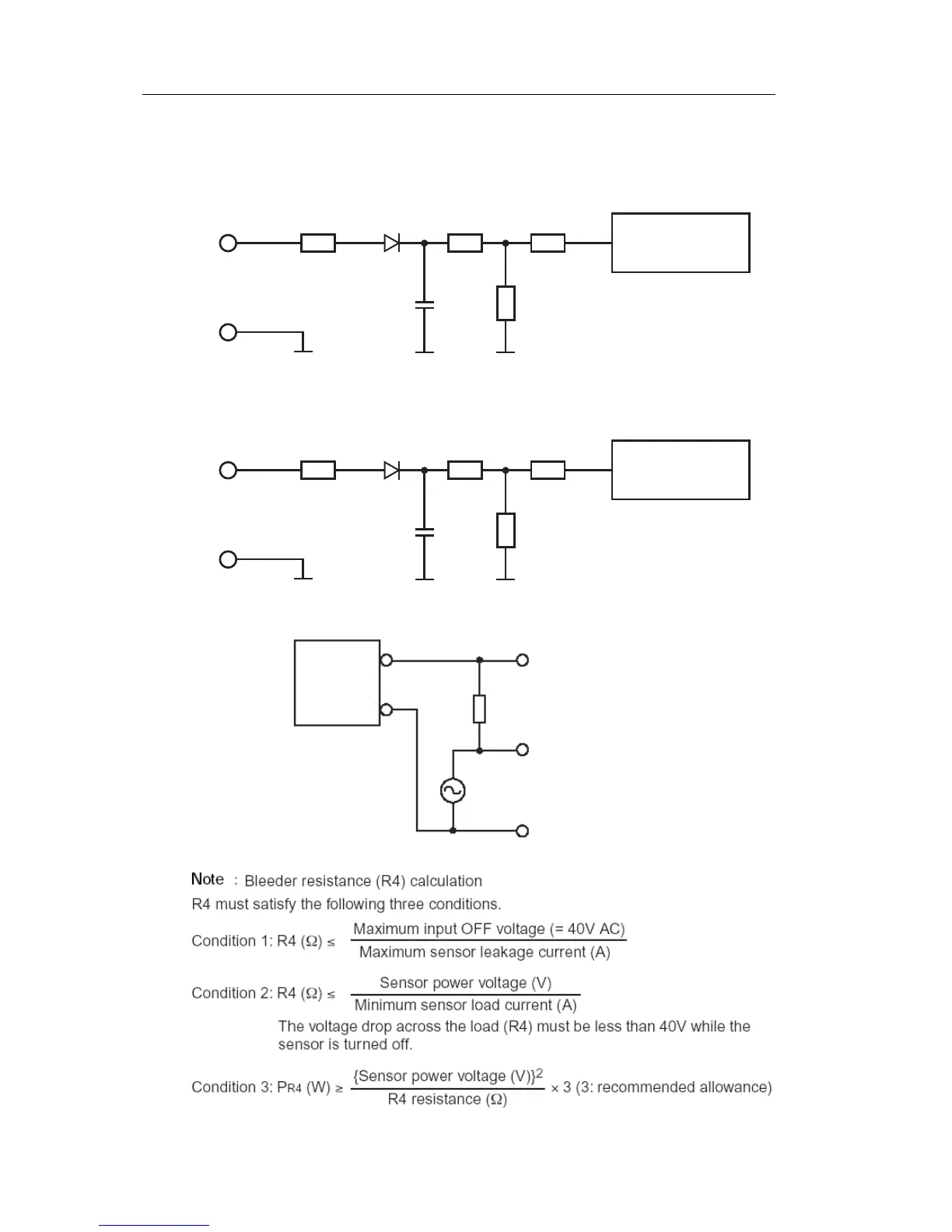

Input Internal Circuit

FL1E-H12RCC / FL1E-B12RCC

FL1B-M08C2R2

I1~I8

100nF

390kΩ 180kΩ 270kΩ

47kΩ

Internal Circuit

Digital AC/DC Input

2-wire

Sensor

I1 to I8

100 to 240 V AC

When using the AC two-wire sensor

I1~I8

100nF

390kΩ 390kΩ

62kΩ

Internal Circuit

270kΩ

Digital AC/DC Input
