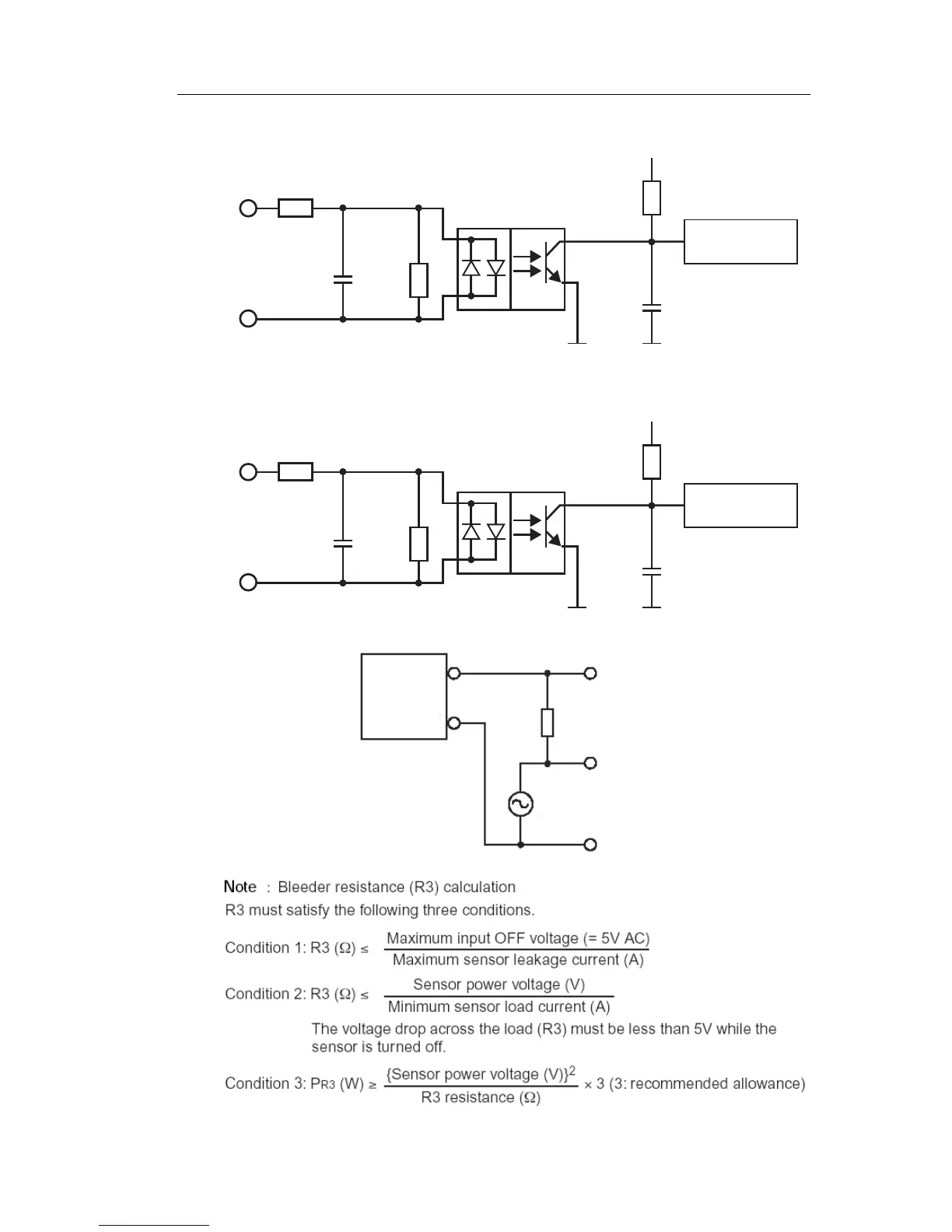

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 41

FL1E-H12RCA / FL1E-B12RCA

FL1B-M08D2R2

I1~I8

4.3kΩ

+5V

510Ω

150kΩ

100nF

Internal Circuit

Internal

Circuit

Digital AC/DC Input

2-wire

Sensor

I1 to I8

240 V AC

When using the AC two-wire sensor

I1~I8

4.3kΩ

+5V

510Ω100nF

Internal Circuit

Internal

Circuit

100nF

Digital AC/DC Input
