IDEC FL1E-H12RCE User Manual

V1, V2: 0 - 10 V DC
V1, V2: 0 - 10 V DC
R1: >= 5 k

I1, I2: 0/4 - 20 mA
R2: <= 250

① Earth
② DIN rail
FL1D-K2B2
FL1D-K2BM2
V1, V2: 0 - 10 V DC
R1: >= 5 k

I1, I2: 0/4 - 20 mA
R2: <= 250

V1 +
V2 +
RU N / STO P
M2
M1
L
+
M
L+ M
L+ M
OUT PU T 2x(0 .. 10 V)
PE
㨪8
㨪8
2
1
4 4
V1+
176276 Z8QTO#
L+M
RU N / STO P
M1
PE
M2V2+
L+M
I2I1
L
+
M
2
㨪O#
8
4
4
1
The terminal arrangement
on the FL1D-K2BM2 is
different from that of the
FL1D-K2B2.
Check the analog output
terminals on the FL1D-
K2BM2, and replace the
FL1D-K2B2 with the
FL1D-K2BM2.
FL1D-K2BM2: Voltage output:

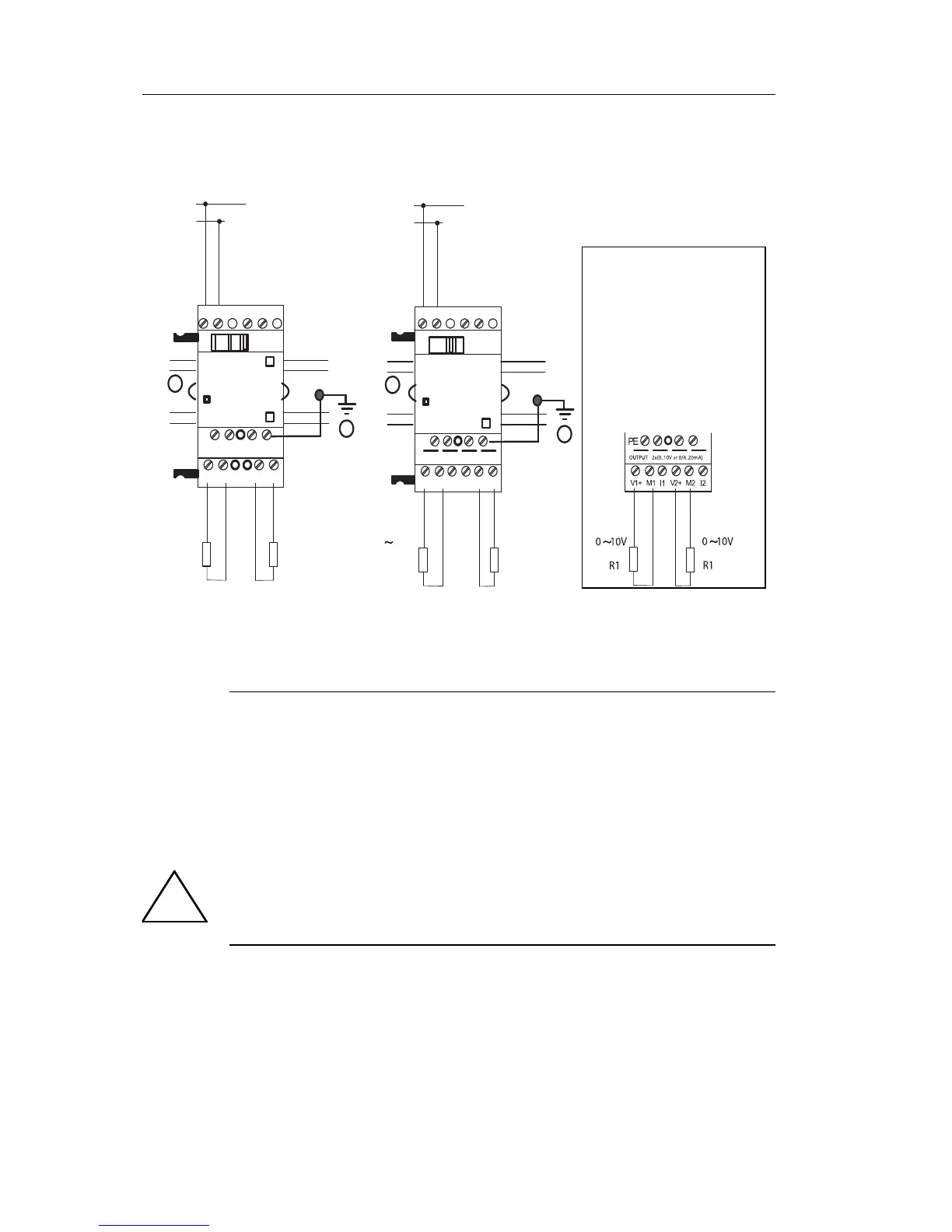

IDEC SmartRelay installation and wiring
46 IDEC SmartRelay Manual
FL1D-K2B2 / FL1D-K2BM2
Note
Caution for wiring the analog output terminals:
Check the analog output terminals, and wire each output terminal
to the external equipment, according to the type of analog
outputs.Incorrect wiring may cause damage to the equipment
connected to the analog output terminals.
!
The terminal arrangement on the FL1D-K2BM2 is different from
that of the FL1D-K2B2. Check the analog output terminals on the
FL1D-K2BM2, and replace the FL1D-K2B2 with the FL1D-K2BM2.
