IDEC SmartRelay Series User Manual

IDEC SmartRelay installation and wiring
18
IDEC SmartRelay Manual
Removal

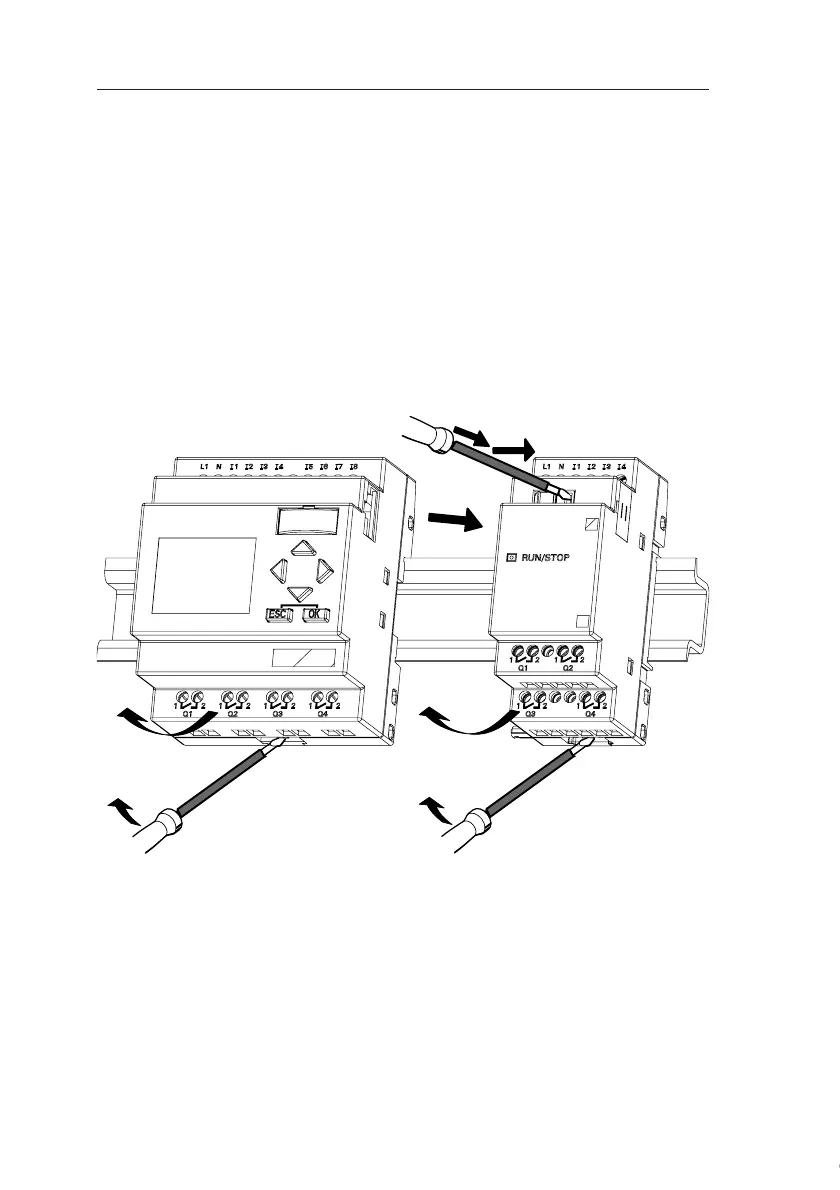

To remove the IDEC SmartRelay:
....... if you have installed only one IDEC SmartRelay Ba-
sic:
Part
A
1. Insert a screwdriver into the eyelet at the bottom of the
slide interlock and move the latch downward.
2. Swing the IDEC SmartRelay Basic off the DIN rail.
1
2
1
2
3
4
AB
