IDEC SmartRelay Series User Manual

IDEC SmartRelay installation and wiring
34
IDEC SmartRelay Manual

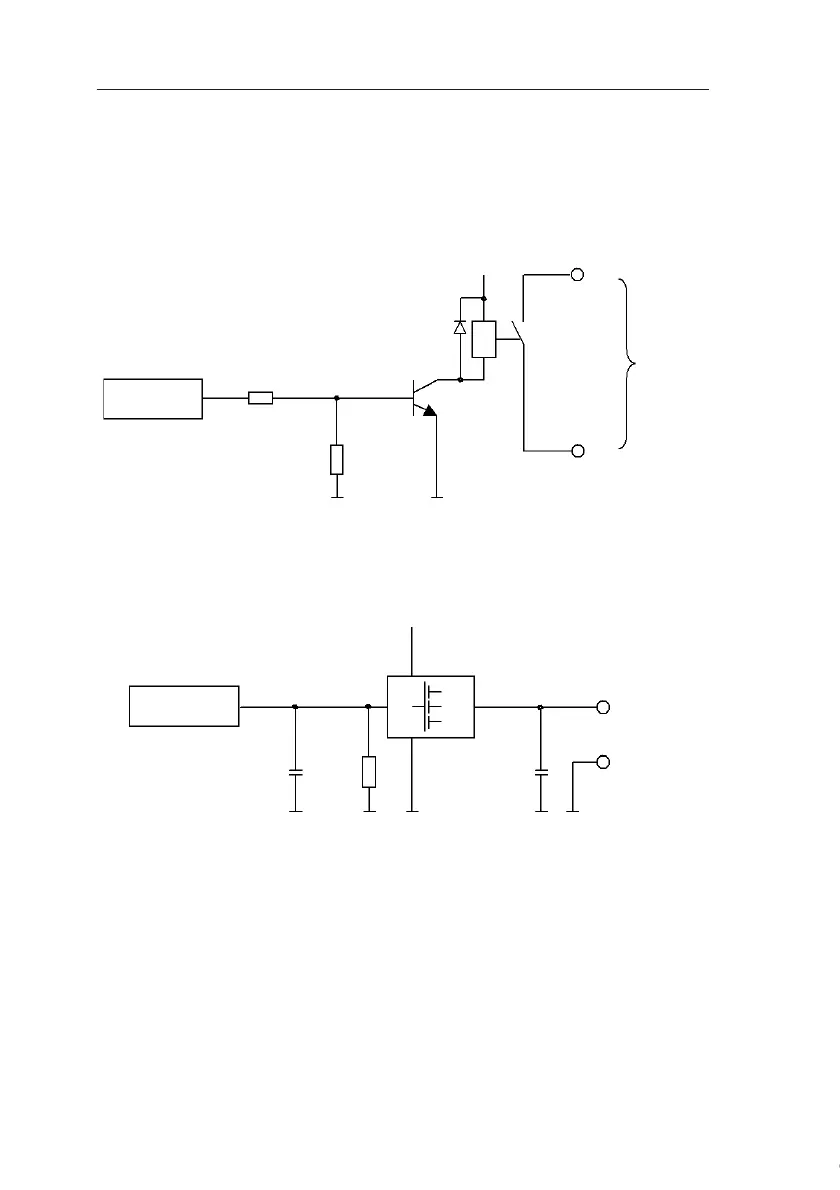

Output Internal Circuit
FL1C-H12RCC / FL1C-B12RCC / FL1C-H12RCA / FL1C-B12RCA /
FL1C-H12RCE/ FL1C-B12RCE / FL1B-M08B2R2 / FL1B-M08C2R2/
FL1B-M08D2R2
Relay Output
FL1C-H12SND / FL1B-M08B1S2
Transister Output (Source)
27kΩ
47kΩ
+24V
2
1
Q1~Q4
Internal
Circuit
Internal Circuit
+24V
10kΩ10nF 10nF
M
Q1~Q4
Internal
Circuit
Internal Circuit
