Programming IDEC SmartRelay
IDEC SmartRelay Manual 61
Note

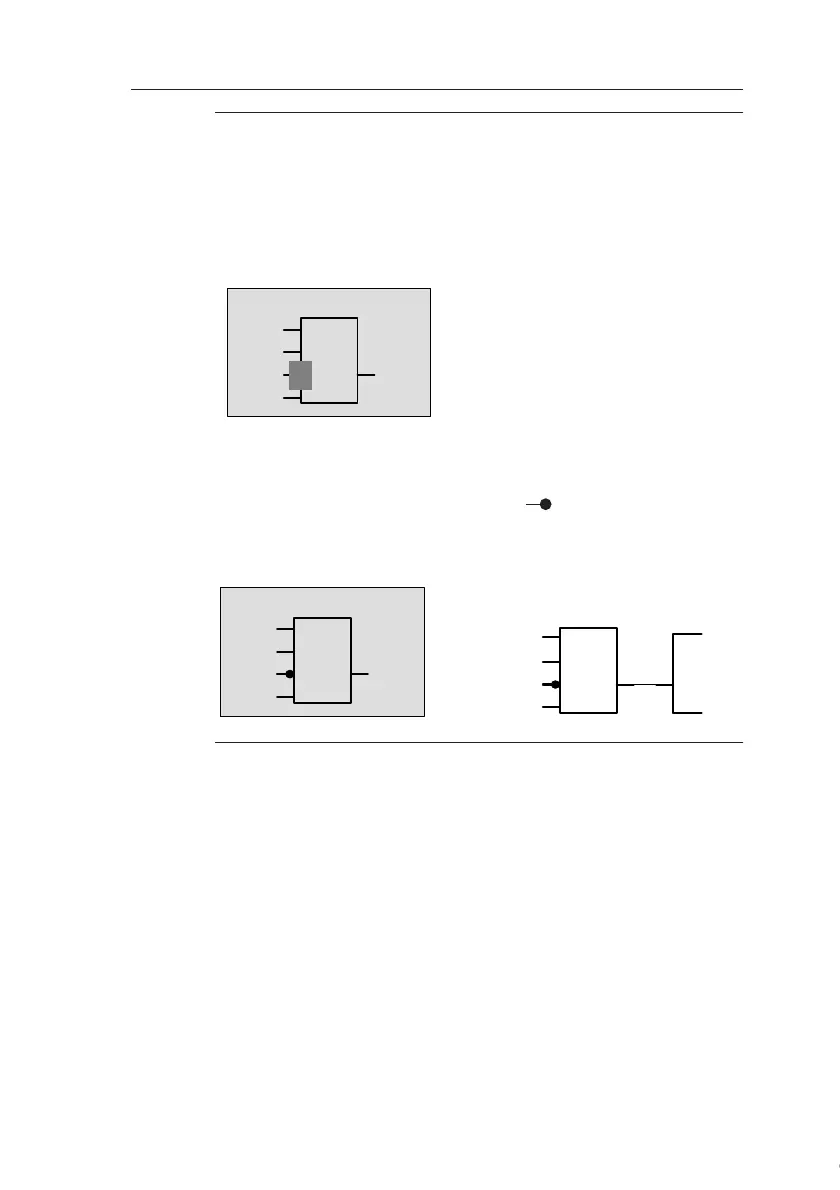

You can invert individual inputs of the basic and special functions,
i.e. if an input carries a logical “1" signal, the circuit program will out-
put a logical “0"; vice versa, a logical “0" is inverted into a logical “1"
signal.
To invert an input, move the cursor to the relevant position, e.g.:
Confirm with
OK.
Now press
▼ or ▲ to invert this input:
Next, press ESC.
You can review your first circuit program by pressing or
to move the cursor through the circuit program.
We shall now exit circuit programming mode. This is how it
is done:
Return to the programming menu:Press ESC
≥ 1
B1
Q1
I2
I3
≥ 1
Q1
I2
B1
I3
x
x
I1
I1
The display now shows: Your circuit program layout
