Programming IDEC SmartRelay
60
IDEC SmartRelay Manual
I2 is now connected to the input of the OR block:
We do not need the last two inputs of the OR block for this
circuit program. You can mark the unused inputs with an 'x'.
Enter the 'x' character twice:
1. Switch to editing mode: Press OK
2. To select the Co list: Press ▼ or ▲
3. To accept the Co list: Press OK
4. To select 'x': Press ▼ or ▲
5. To apply x: Press OK
IDEC SmartRelay returns to output Q1.
≥ 1
B1
Q1
≥ 1
Q1
I1
I1
B1
I2
I2

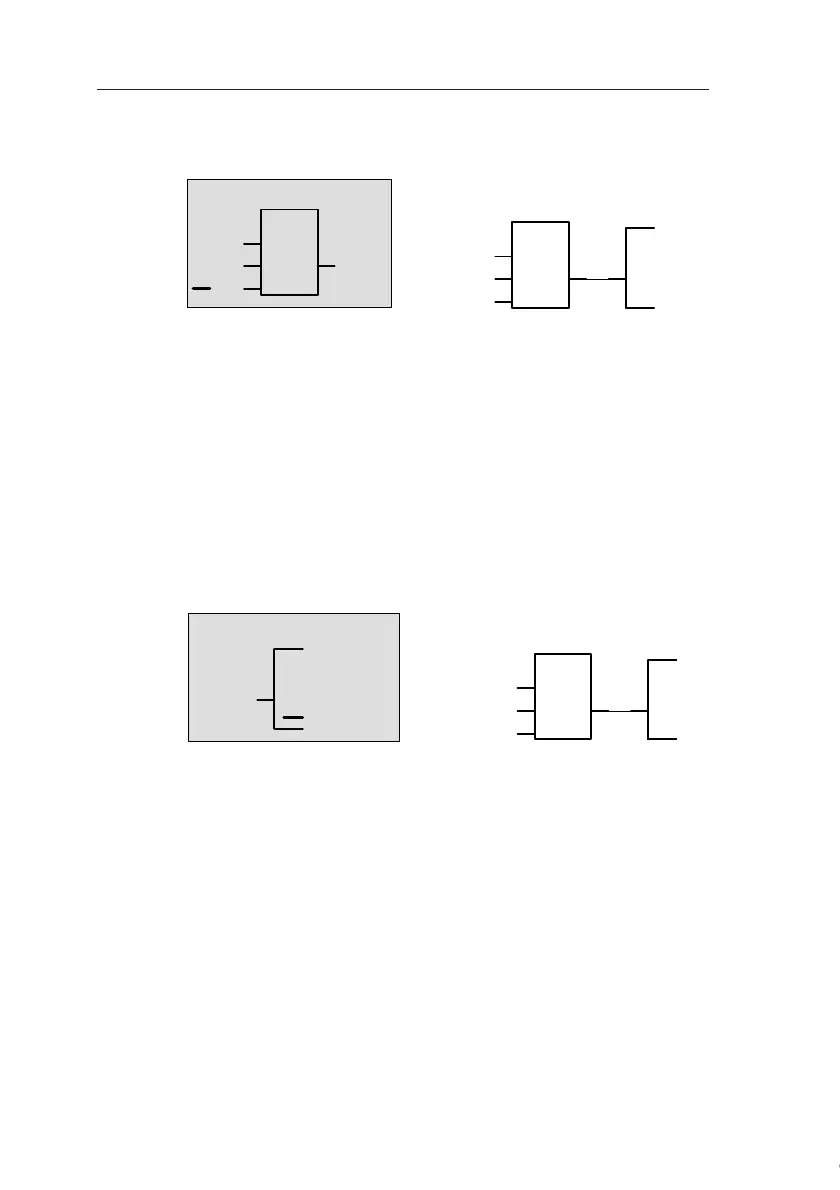

The display now shows:
Your circuit program layout in
IDEC SmartRelay up to now
≥ 1
Q1
I1
B1
I2
Q1B1
x
The display now shows: This is the layout of your circuit
program
