Programming IDEC SmartRelay
IDEC SmartRelay Manual 73
In our example we do not use the reset input of the off-delay
function, and we identify it with an 'x' connector.
Assigning block parameters
Now you set the off-delay time T:
1. Move the cursor to Par, if it not already at this position:
Press ▲ or ▼
2. Switch to editing mode: Press OK
IDEC SmartRelay shows the parameters in the parameter
assignment window:
To change the time value:
• Press and to position the cursor.
• Press ▲ and ▼ to modify the value at the relevant posi-
tion.
• Confirm your entries with OK.
x
B1
Par
Q1
B2

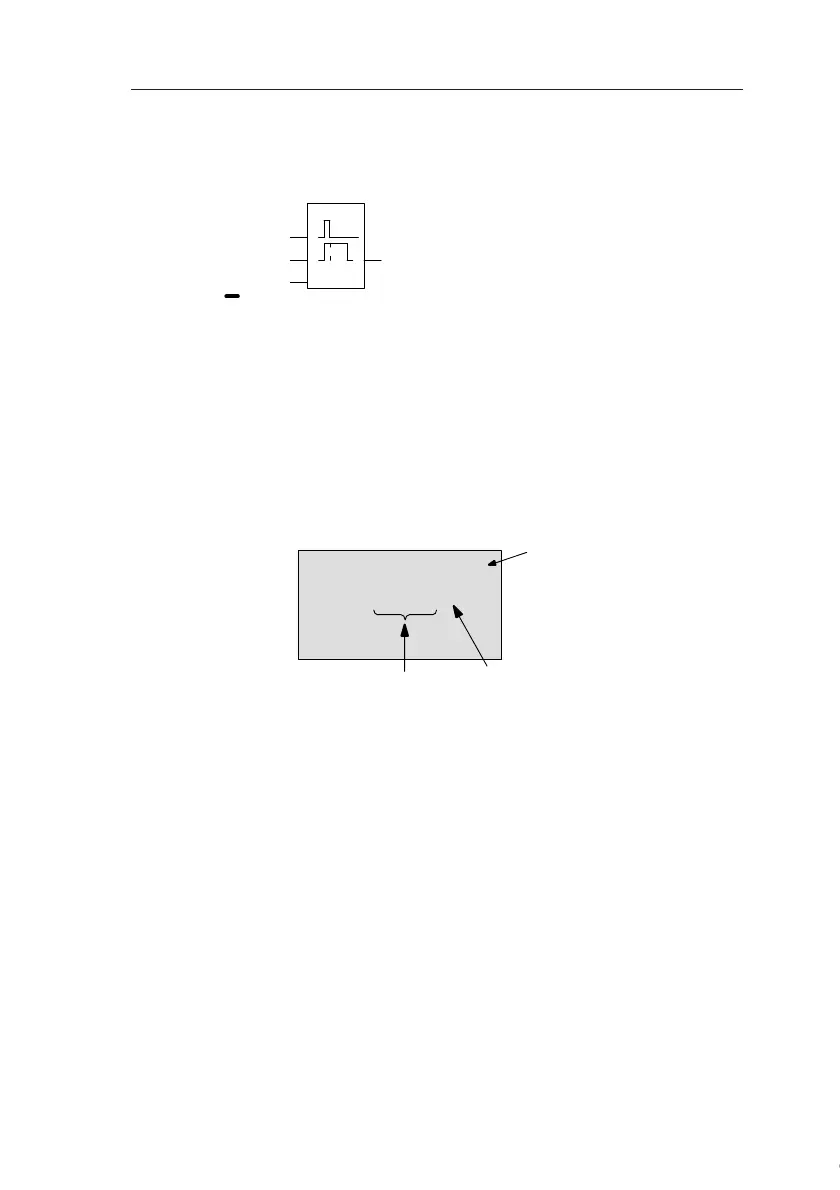

This is what the display should now show
B2 +R
T =00:00s
T: The block pa-
rameter B2 is a
time function
“+” means: The parameter is
shown and can be modified
in the parameter assignment
mode.
“R” means: Retentivity is en-
abled for this block.
Time value
Timebase
▲
▲
