Programming IDEC SmartRelay
72
IDEC SmartRelay Manual

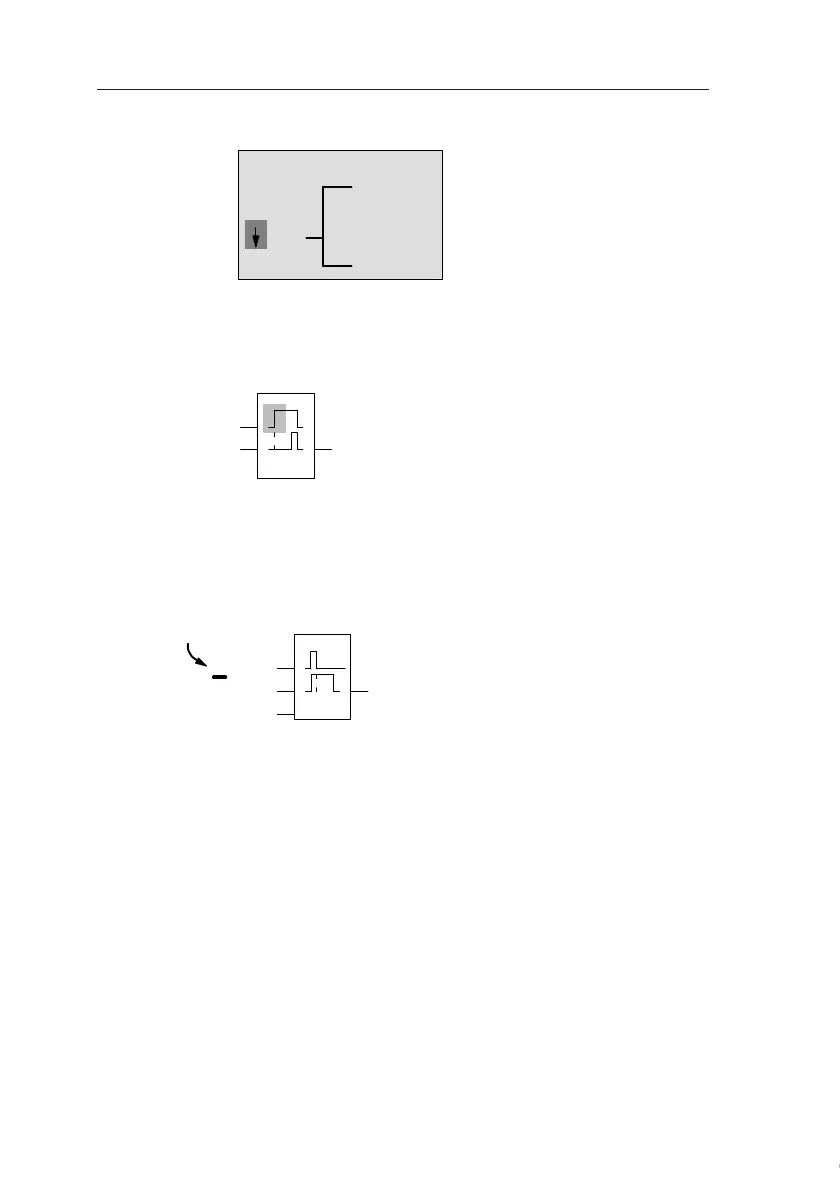

Press ▼ to select the SF list:
Press OK.
The block of the first special function is shown:
Select your block (off-delay, see the next figure), and then
press OK:
The B1 block previously connected to Q1 is automatically
connected to the uppermost input of the new block. Note that
you can only interconnect digital inputs with digital outputs or
analog inputs with analog outputs. The 'old' block will other-
wise be lost.
The off-delay block has three inputs. At the top is the trigger
input (Trg) you use to start the off-delay time. In our example,
the OR block B1 triggers the off-delay. You reset the time
and the output with a signal at the reset input. Set the off-de-
lay time at parameter T of the input Par.
Q1
SF
The SF list contains the
special function blocks.
Trg
Par
Q1
When you select a special or basic function
block, IDEC SmartRelay shows you the rele-
vant function block. The solid square cursor
is positioned on the block. Press ▼ or ▲ to
select the required block.
R
B1
Par
Q1
B2
Before you press
‘OK’, this shows
the entry Trg
The added block is assigned the block
number B2. The cursor is positioned at
the top input of the added block.
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
