Inficon Micro GC Fusion 2-Module User Manual

6 | Installation INFICON
108 / 319 074-594-P1H Micro GC Fusion Operating Man-
ual
13
While holding the union with a 1/4 in. wrench, use a 1/4 in. wrench to turn the
union fitting. Over-tighten by 1/2 turn to swage the union fitting and ferrule onto
the 1/16 in. sample line.
14
Loosen the fitting and then tighten it again.
15

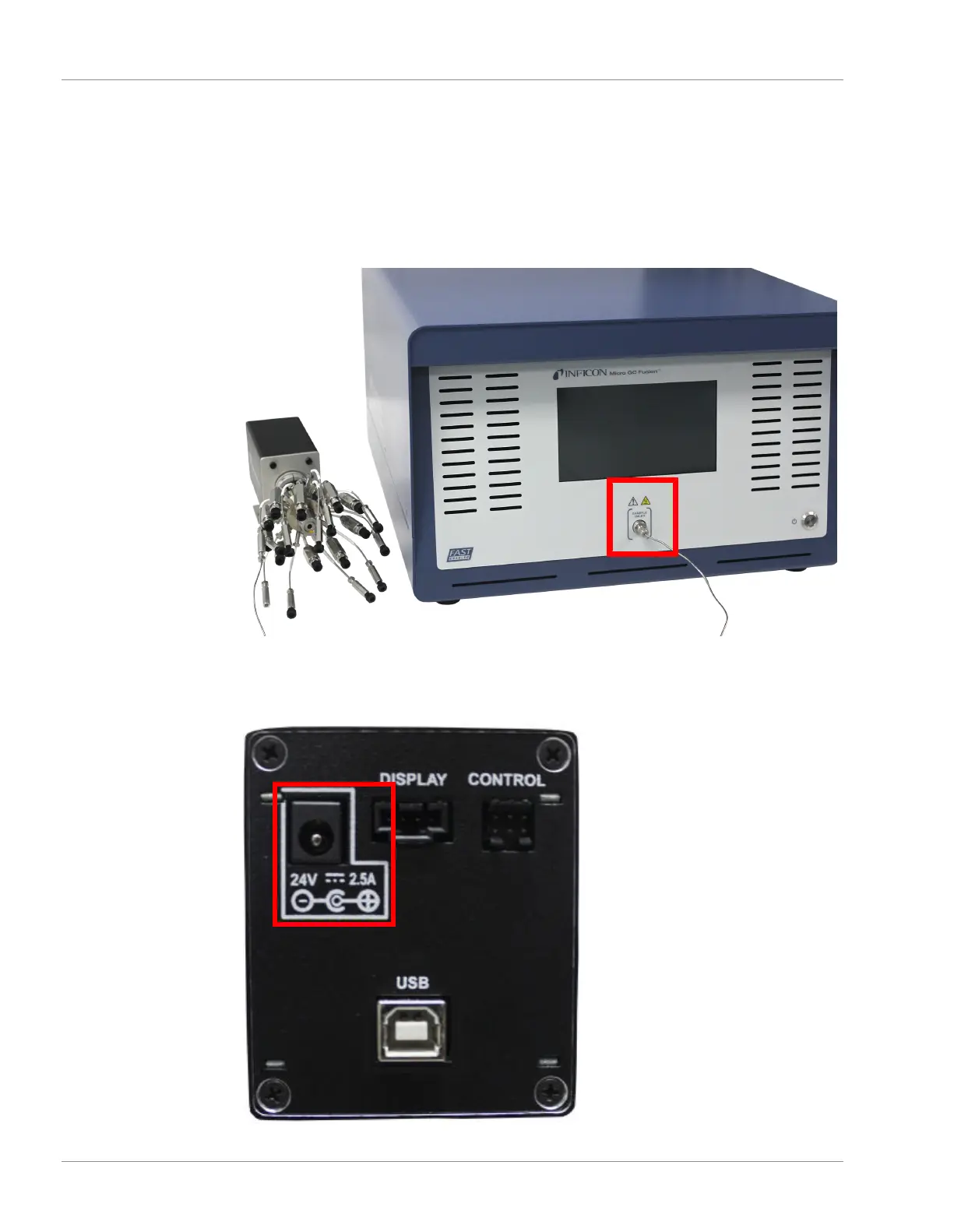

Swage the 1/16 in. OD stainless steel tubing to the Micro GC Fusion 1/16 in.
front inlet using a 5/16 in. wrench.
16
Plug the DC power connector on the power supply into the back of the Valco
stream selector. Connect the AC power connector on the power supply into a
100-240V (ac) power source.
