5 Product Overview
Micro GC Fusion is available in two chassis configurations:
• 2-module chassis, which can house one or two GC modules
• 4-module chassis, which can house three or four GC modules
The two chassis configurations share most of the hardware components. The
following overview is applicable to both chassis configurations unless otherwise
specified.
5.1 2-Module Chassis

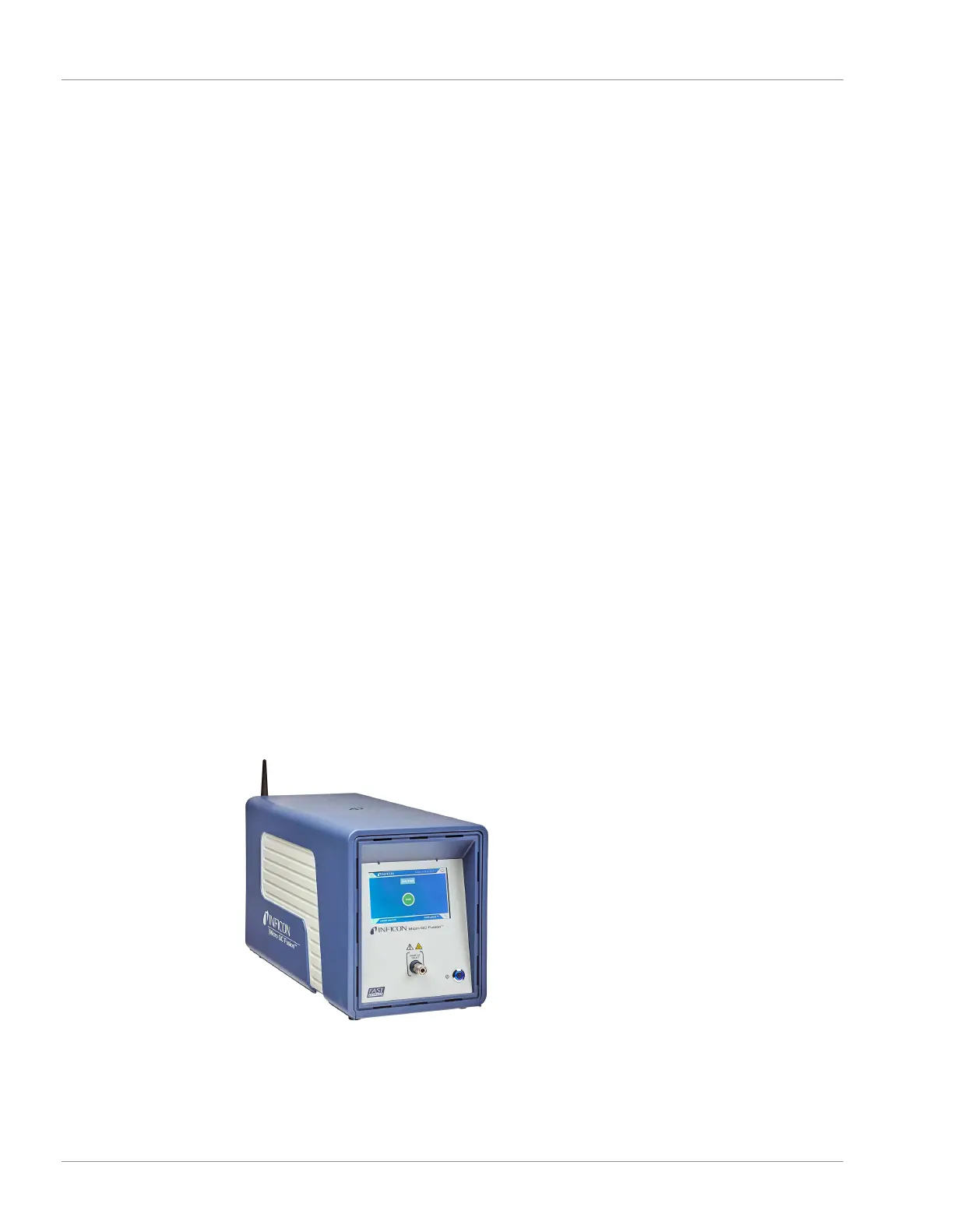

The 2-module Micro GC Fusion chassis houses up to two analytical GC modules,
electrical components and internal plumbing. The front panel display provides access
to basic operating interfaces and controls.
• Heated sample inlet
– 1/16 in. Swagelok
®
male connector. A 1/8 in. Quick Connect is provided if the
optional Integrated Sample Conditioner is installed.
• Front panel display
– See Front Panel Operation [
}149] for details about using the front panel dis-
play to access routine operating controls.
• On/Standby button
– Illuminated On/Standby button to power on or place the instrument in standby
mode.
Electrical and gas connections are located on the Micro GC Fusion back panel.
