INFICON Product Overview | 5
074-594-P1H Micro GC Fusion Operating Manual 27 / 319
1
2
3
4
5
6
7
8
9 10

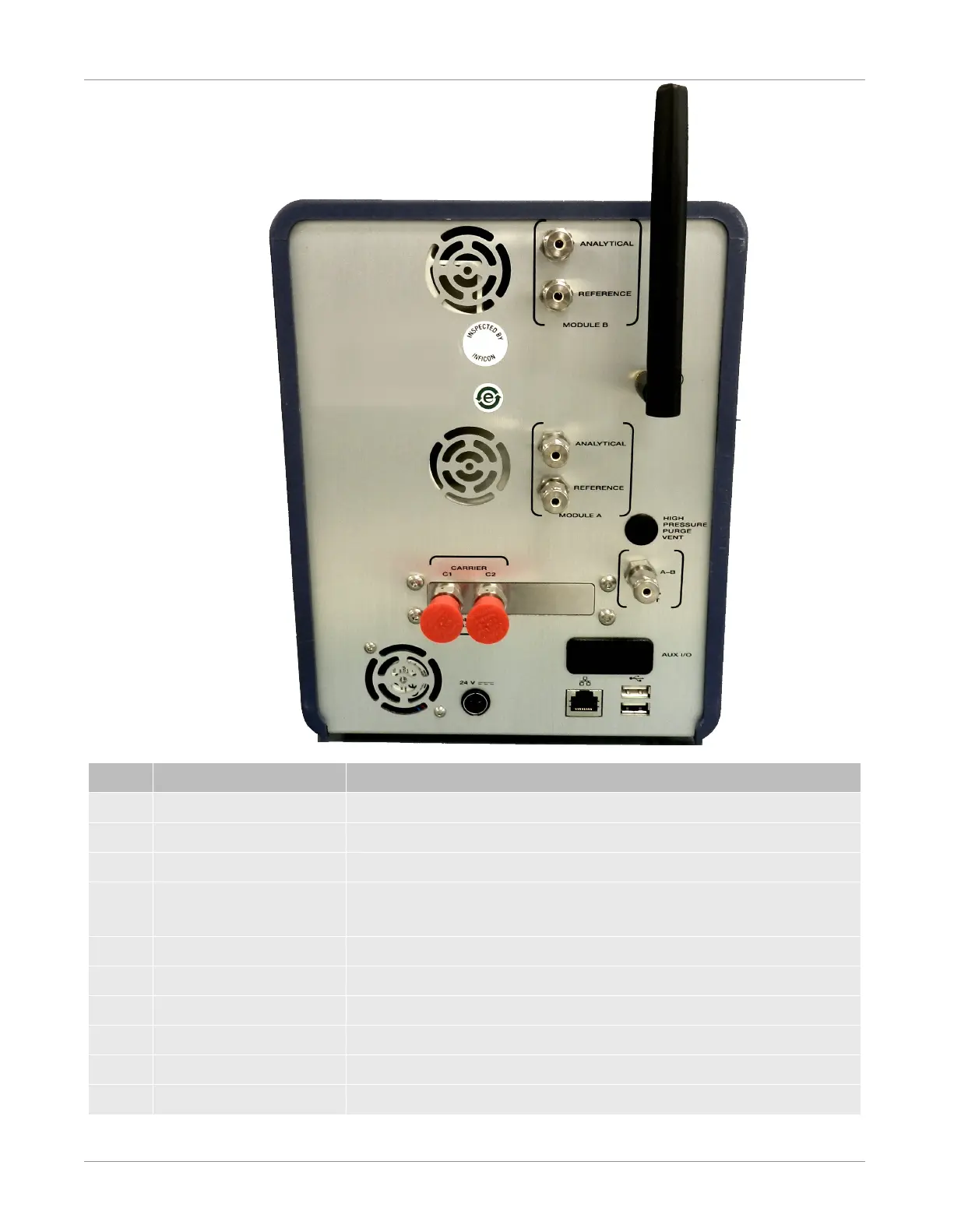

Number Label Description
1 ANALYTICAL Vents for the analytical column(s) with 1/8 in. Swagelok connectors
2 REFERENCE Vents for the reference columns(s) with 1/8 in. Swagelok connectors
3 Wi-Fi Antenna Boosts wireless signal strength and improves connectivity
4 HIGH PRESSURE
PURGE VENT
Vent for the Integrated Sample Conditioner (if configured)
5 CARRIER C1 and C2 Carrier gas connections with 1/8 in. Swagelok connectors
6 PUMP Vent for the pump
7 AUX I/O The AUX I/O can be configured to remotely start or cancel sample runs
8 24V 24 V (dc) input from the external V (ac) V (dc) power adaptor
9 RJ-45 LAN connector Wired LAN connection
10 USB connectors Two USB interfaces are provided
